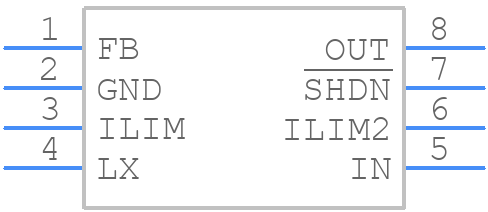

Part Symbol
-
Footprint
-

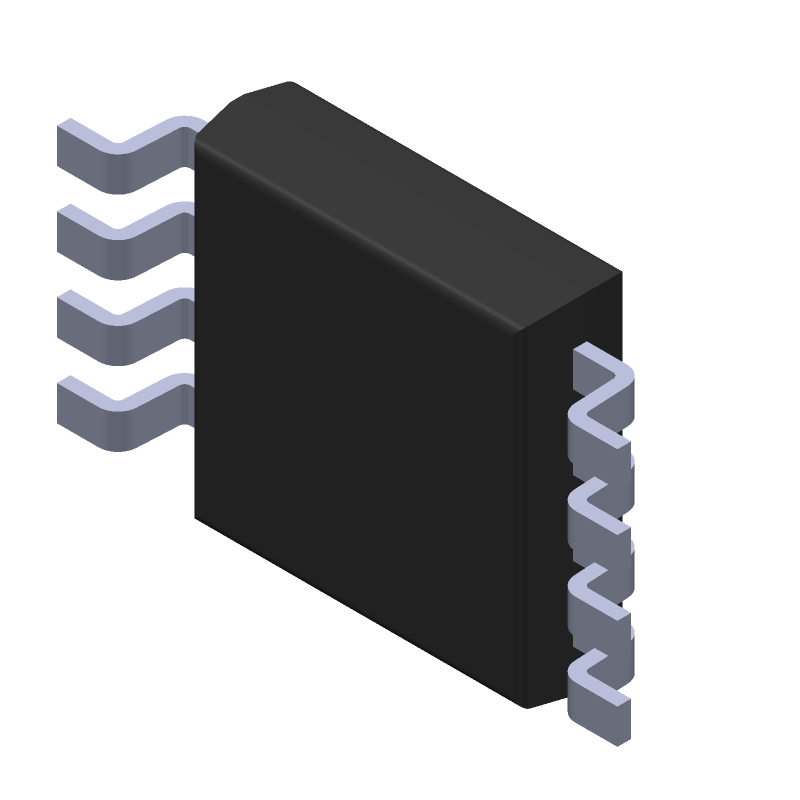

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1776EUA+T by Analog Devices Inc
Results Overview of MAX1776EUA+T by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MAX1776EUA+T Information
MAX1776EUA+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX1776EUA+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y2681
|
Newark | Dc/Dc Conv, Buck, 200Khz, Umax-8, No. Of Outputs:1Outputs, Topology:Buck (Step Down), Input Voltage Min:4.5V, Input Voltage Max:24V, Max Output Current:600Ma, Ic Case/Package:Μmax, No. Of Pins:8Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices MAX1776EUA+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9458 |
|
$6.0000 | Buy Now |
|
DISTI #
700-MAX1776EUAT
|
Mouser Electronics | Switching Voltage Regulators 24V, 600mA Internal Switch, 100 Duty Cy RoHS: Compliant | 601 |
|
$6.4500 / $10.6300 | Buy Now |
|
DISTI #
V72:2272_26373104
|
Arrow Electronics | Conv DC-DC 4.5V to 24V Step Down Single-Out 1.24V to 25V/5V 0.6A 8-Pin uMAX T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 2207 Container: Cut Strips | Americas - 1244 |
|
$6.4370 / $7.0940 | Buy Now |
|
|
Analog Devices Inc | 24V, 600mA Internal Switch, 10 Min Qty: 1 Package Multiple: 1 | 692 |
|
$5.0200 / $12.7700 | Buy Now |
|
DISTI #
61209933
|
Verical | Conv DC-DC 4.5V to 24V Step Down Single-Out 1.24V to 25V/5V 0.6A 8-Pin uMAX T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2207 | Americas - 1244 |
|
$6.4370 / $7.0940 | Buy Now |
Part Details for MAX1776EUA+T
MAX1776EUA+T CAD Models
MAX1776EUA+T Part Data Attributes
|
|
MAX1776EUA+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1776EUA+T
Analog Devices Inc
24V, 600mA Internal Switch, 100% Duty Cycle, Step-Down Converter, 8-MINI_SO-N/A, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-MINI_SO-N/A | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2001-03-15 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 24 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 200 kHz | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for MAX1776EUA+T
This table gives cross-reference parts and alternative options found for MAX1776EUA+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1776EUA+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1776EUA+ | Maxim Integrated Products | $6.5482 | Switching Regulator, Current-mode, 2A, 200kHz Switching Freq-Max, BICMOS, PDSO8, MSOP-8 | MAX1776EUA+T vs MAX1776EUA+ |
| MAX1776EUA-T | Maxim Integrated Products | Check for Price | Switching Regulator, Current-mode, 2A, 200kHz Switching Freq-Max, BICMOS, PDSO8, MSOP-8 | MAX1776EUA+T vs MAX1776EUA-T |
| MAX1776EUA+ | Analog Devices Inc | Check for Price | 24V, 600mA Internal Switch, 100% Duty Cycle, Step-Down Converter, 8-MINI_SO-N/A, 8 Pins, -40 to 85C | MAX1776EUA+T vs MAX1776EUA+ |
| MAX1776EUA | Maxim Integrated Products | Check for Price | Switching Regulator, Current-mode, 2A, 200kHz Switching Freq-Max, BICMOS, PDSO8, MSOP-8 | MAX1776EUA+T vs MAX1776EUA |
MAX1776EUA+T Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX1776EUA+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the battery and keep the high-current paths short and wide.
-
To optimize the performance of the MAX1776EUA+T, you should consider factors such as the input voltage range, output voltage, and current requirements of your application. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements.
-
The MAX1776EUA+T has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is operated at a junction temperature below this maximum rating. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation of the device.
-
To troubleshoot issues with the MAX1776EUA+T, you should first consult the datasheet and application notes to ensure that the device is being used correctly. You should then use a multimeter or oscilloscope to measure the input and output voltages, and check for any signs of overheating or damage. If the issue persists, you may need to consult with an Analog Devices support engineer or a qualified electronics engineer.
-
The MAX1776EUA+T is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, you should use a shielded inductor, keep the layout compact, and use a common-mode choke or EMI filter. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements.
