MAX1733EUK+T by:

Low-Voltage, Step-Down DC-DC Converters in SOT23, 5-SOT_23-N/A, 5 Pins, -40 to 85C

Part Details for MAX1733EUK+T by Analog Devices Inc

Results Overview of MAX1733EUK+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Energy and Power Systems Renewable Energy

MAX1733EUK+T Information

MAX1733EUK+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MAX1733EUK+T

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX1733EUKT
Mouser Electronics Switching Voltage Regulators Low-Voltage, Step-Down DC-DC Converters RoHS: Compliant 2466
  • 1 $7.2400
  • 10 $5.4400
  • 25 $5.0700
  • 100 $4.4600
  • 250 $4.2300
  • 500 $3.7900
  • 1,000 $3.2000
  • 2,500 $2.8900
$2.8900 / $7.2400 Buy Now
Analog Devices Inc Low-Voltage, Step-Down DC-DC C Min Qty: 2500 Package Multiple: 1 12500
  • 1,000 $2.2600
  • 2,500 $2.8250
$2.2600 / $2.8250 Buy Now

Part Details for MAX1733EUK+T

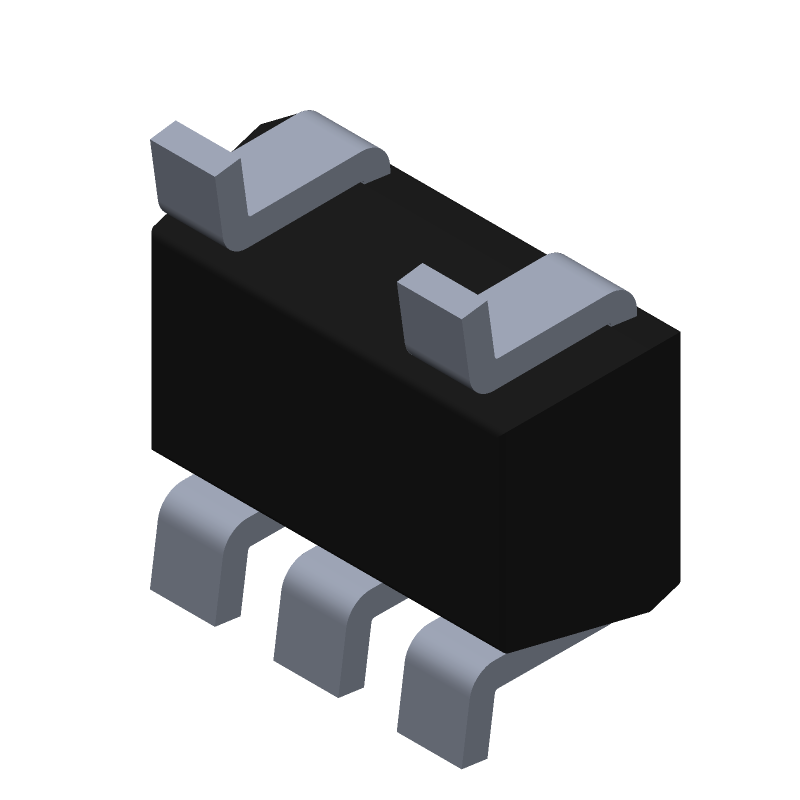

MAX1733EUK+T CAD Models

MAX1733EUK+T Part Data Attributes

MAX1733EUK+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX1733EUK+T Analog Devices Inc Low-Voltage, Step-Down DC-DC Converters in SOT23, 5-SOT_23-N/A, 5 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 5-SOT_23-N/A
Package Description LEAD FREE, SOT-23, 5 PIN
Pin Count 5
Manufacturer Package Code 5-SOT_23-N/A
Reach Compliance Code compliant
Date Of Intro 2000-09-15
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Input Voltage-Max 5.5 V
Input Voltage-Min 2.7 V
Input Voltage-Nom 3.6 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.565 A
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 1200 kHz
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 1.625 mm

Alternate Parts for MAX1733EUK+T

This table gives cross-reference parts and alternative options found for MAX1733EUK+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1733EUK+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX1733EUK+T Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 0.565A, 1200kHz Switching Freq-Max, BICMOS, PDSO5, LEAD FREE, SOT-23, 5 PIN MAX1733EUK+T vs MAX1733EUK+T
MAX1733EUK-T Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 0.565A, 1200kHz Switching Freq-Max, BICMOS, PDSO5, SOT-23, 5 PIN MAX1733EUK+T vs MAX1733EUK-T
MAX1733EUK-TG05 Maxim Integrated Products Check for Price Switching Regulator, 0.565A, 1200kHz Switching Freq-Max, BICMOS, PDSO5, SOT-23, 5 PIN MAX1733EUK+T vs MAX1733EUK-TG05
Part Number Manufacturer Composite Price Description Compare
MAX1733EUK+ Maxim Integrated Products Check for Price Switching Regulator, Voltage-mode, 0.565A, 1200kHz Switching Freq-Max, BICMOS, PDSO5, LEAD FREE, SOT-23, 5 PIN MAX1733EUK+T vs MAX1733EUK+
MAX1733EUK+ Analog Devices Inc Check for Price Low-Voltage, Step-Down DC-DC Converters in SOT23, 5-SOT_23-N/A, 5 Pins, -40 to 85C MAX1733EUK+T vs MAX1733EUK+
LTC3405ES6 Linear Technology Check for Price LTC3405 - 1.5MHz, 300mA Synchronous Step-Down Regulator in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405ES6
LTC3405AES6-1.8 Analog Devices Inc Check for Price Switching Regulator, Current-mode, 0.63A, 1800kHz Switching Freq-Max, PDSO6 MAX1733EUK+T vs LTC3405AES6-1.8
LTC3405ES6#TR Linear Technology Check for Price LTC3405 - 1.5MHz, 300mA Synchronous Step-Down Regulator in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405ES6#TR
LTC3405ES6#TRM Analog Devices Inc Check for Price Switching Regulator, Current-mode, 0.63A, 1800kHz Switching Freq-Max, PDSO6 MAX1733EUK+T vs LTC3405ES6#TRM
LTC3405ES6#TRM Linear Technology Check for Price LTC3405 - 1.5MHz, 300mA Synchronous Step-Down Regulator in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405ES6#TRM
LTC3405AES6-1.8#TRMPBF Linear Technology Check for Price LTC3405A-1.8 - 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405AES6-1.8#TRMPBF
LTC3405AES6-1.8 Linear Technology Check for Price LTC3405A-1.8 - 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405AES6-1.8
LTC3405ES6#TRMPBF Linear Technology Check for Price LTC3405 - 1.5MHz, 300mA Synchronous Step-Down Regulator in ThinSOT; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C MAX1733EUK+T vs LTC3405ES6#TRMPBF
