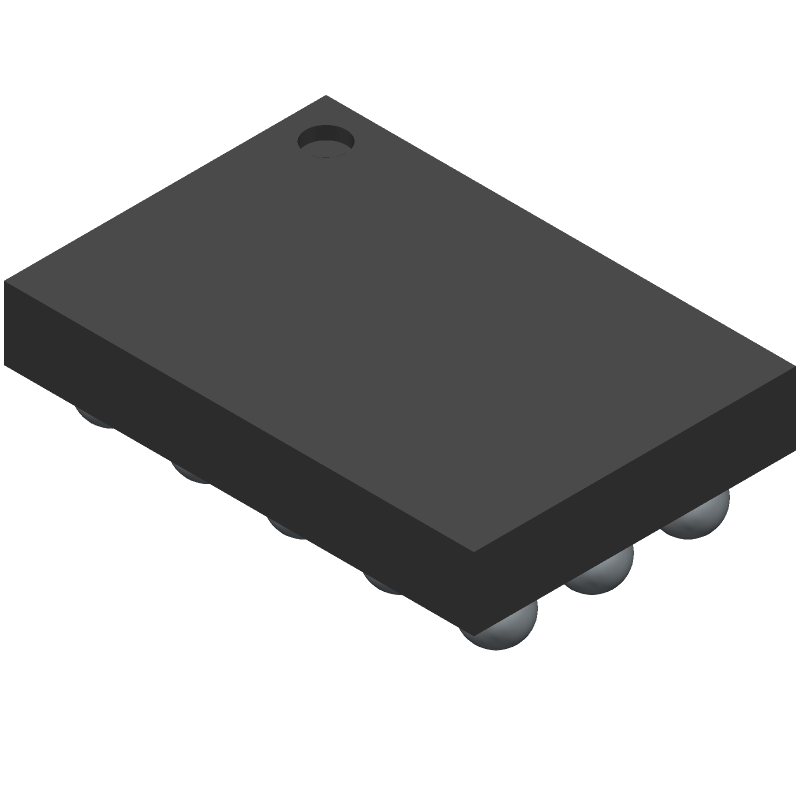

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX17301X+T by Analog Devices Inc
Results Overview of MAX17301X+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
MAX17301X+T Information
MAX17301X+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX17301X+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX17301X+T
|
Mouser Electronics | Battery Management ModelGauge M5 1S WLP RoHS: Compliant | 0 |
|
$3.4400 | Order Now |
|
|
Analog Devices Inc | ModelGauge M5 1S WLP Min Qty: 2500 Package Multiple: 1 | 431 |
|
$3.4422 / $6.0900 | Buy Now |
Part Details for MAX17301X+T
MAX17301X+T CAD Models
MAX17301X+T Part Data Attributes
|
|
MAX17301X+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX17301X+T
Analog Devices Inc
1-Cell ModelGauge m5 EZ Fuel Gauge with Protector and SHA-256 Authentication, 15-WLCSP-N/A, 15 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 15-WLCSP-N/A | |
| Package Description | WLP-15 | |
| Pin Count | 15 | |
| Manufacturer Package Code | 15-WLCSP-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2019-06-20 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY MANAGEMENT CIRCUIT | |
| JESD-30 Code | R-PBGA-B15 | |
| Length | 2.448 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 15 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA15,3X5,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.69 mm | |
| Supply Current-Max (Isup) | 0.05 mA | |
| Supply Voltage-Max (Vsup) | 4.9 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Threshold Voltage-Nom | +2.8V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.678 mm |
Alternate Parts for MAX17301X+T
This table gives cross-reference parts and alternative options found for MAX17301X+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX17301X+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC13892DJVLR2 | NXP Semiconductors | $7.9400 | 1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PBGA186 | MAX17301X+T vs MC13892DJVLR2 |
| MAX17301X+ | Analog Devices Inc | Check for Price | 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector and SHA-256 Authentication, 15-WLCSP-N/A, 15 Pins, -40 to 85C | MAX17301X+T vs MAX17301X+ |
| MC13892DJVLR2 | Freescale Semiconductor | Check for Price | Power Management IC, i.MX35/51, 10 Bit ADC, 4 adj buck, 12 adj LDO, MAPBGA 139, Reel | MAX17301X+T vs MC13892DJVLR2 |
MAX17301X+T Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX17301X+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane is recommended. Refer to the MAX17301X+T evaluation kit layout as a reference.
-
The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A 10uF to 22uF ceramic capacitor is recommended for the input and output. Refer to the MAX17301X+T datasheet for more information on capacitor selection.
-
The MAX17301X+T is rated for operation from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. Refer to the MAX17301X+T datasheet for more information on temperature-related specifications.
-
The MAX17301X+T output voltage can be programmed using the I2C interface. The device has a 7-bit DAC that allows for output voltage adjustment in 12.5mV steps. Refer to the MAX17301X+T datasheet for more information on programming the output voltage.
-
The MAX17301X+T has a maximum current rating of 3A. However, the device's current rating may be limited by the input voltage, output voltage, and ambient temperature. Refer to the MAX17301X+T datasheet for more information on current-related specifications.
