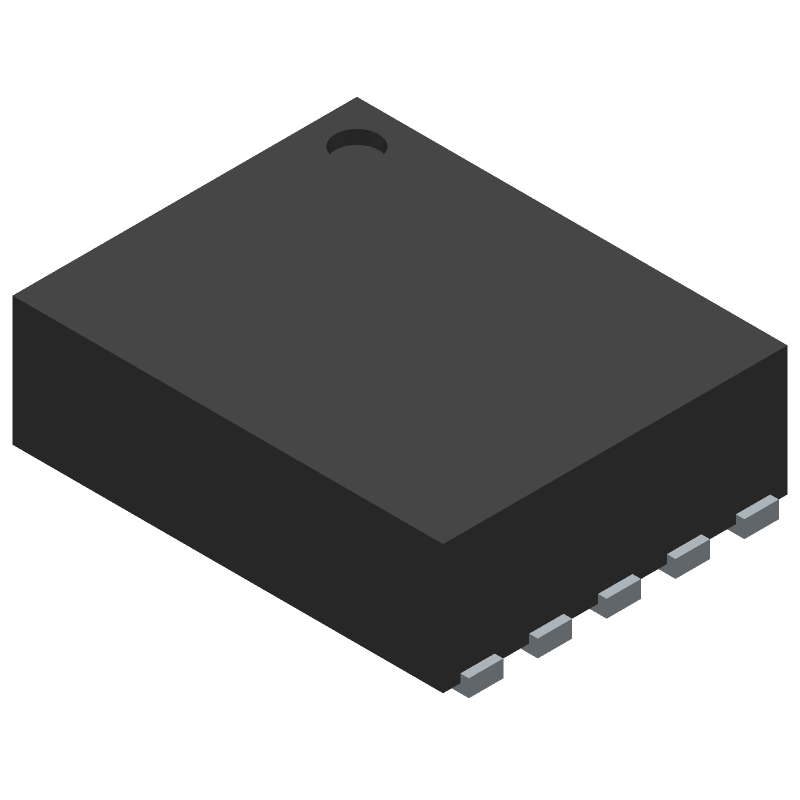

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX17055ETB+T by Analog Devices Inc
Results Overview of MAX17055ETB+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MAX17055ETB+T Information
MAX17055ETB+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX17055ETB+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX17055ETB+T
|
Mouser Electronics | Battery Management 7 A 1-Cell Fuel Gauge with ModelGauge m5 EZ RoHS: Compliant | 40643 |
|
$1.8700 / $3.6500 | Buy Now |
|
|
Analog Devices Inc | Stand-Alone ModelGauge m5 Fuel Min Qty: 1 Package Multiple: 1 | 30735 |
|
$1.9295 / $3.6500 | Buy Now |
|
|
Rochester Electronics | MAX17055 - Stand-Alone ModelGauge m5 Fuel Gauge RoHS: Compliant Status: Active Min Qty: 1 | 2432 |
|
$1.5100 / $1.8900 | Buy Now |
Part Details for MAX17055ETB+T
MAX17055ETB+T CAD Models
MAX17055ETB+T Part Data Attributes
|
|
MAX17055ETB+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX17055ETB+T
Analog Devices Inc
7µA 1-Cell Fuel Gauge with ModelGauge m5 EZ, 10-LFCSP-2.5X2X0.75, 10 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 10-LFCSP-2.5X2X0.75 | |
| Package Description | DFN-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 10-LFCSP-2.5X2X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2017-03-15 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 2.5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.08,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 4.9 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for MAX17055ETB+T
This table gives cross-reference parts and alternative options found for MAX17055ETB+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX17055ETB+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX17055ETB+T | Maxim Integrated Products | $2.3360 | Power Supply Support Circuit, | MAX17055ETB+T vs MAX17055ETB+T |
MAX17055ETB+T Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX17055ETB+T can be found in the MAX17055 Evaluation Kit User Guide (UG-1137) and the MAX17055 Layout Guidelines application note (AN-1138). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
-
Calibration of the MAX17055ETB+T involves adjusting the device's internal registers to match the specific battery chemistry and capacity. The calibration process is described in the MAX17055 datasheet and the MAX17055 Fuel Gauge Calibration application note (AN-1139). Calibration can be performed using the MAX17055 Evaluation Kit and the accompanying software.
-
The MAX17055ETB+T is rated for operation over the -40°C to +85°C temperature range. However, the device's accuracy and performance may degrade at extreme temperatures. It is recommended to consult the datasheet and the MAX17055 Reliability and Quality application note (AN-1140) for more information on temperature-related considerations.
-
Yes, the MAX17055ETB+T is designed to support multiple battery chemistries, including lithium-ion, lithium-polymer, and lead-acid batteries. The device's internal registers can be adjusted to accommodate different battery chemistries and capacities. However, it is recommended to consult the datasheet and the MAX17055 Battery Chemistry Support application note (AN-1141) for more information on specific battery chemistry support.
-
The MAX17055ETB+T provides built-in battery protection features, including overcharge, over-discharge, and short-circuit protection. The device can be configured to trigger external protection circuits or to shut down the system in case of a fault condition. The implementation of battery protection using the MAX17055ETB+T is described in the datasheet and the MAX17055 Battery Protection application note (AN-1142).
