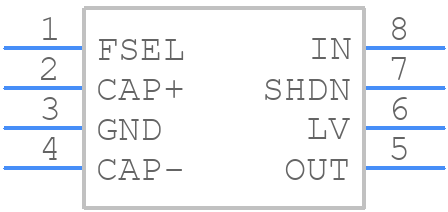

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1680ESA+T by Analog Devices Inc
Results Overview of MAX1680ESA+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
Electronic Manufacturing
MAX1680ESA+T Information
MAX1680ESA+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX1680ESA+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y2503
|
Newark | Charge Pump, Doubler/Inverting, Nsoic-8, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Output Current Max:125Ma, Fixed Output Voltage Nom:-, Adjustable Output Voltage Min:-5.5V, Adjustable Output Voltage Max:-2V, Input Voltage Min:2V Rohs Compliant: Yes |Analog Devices MAX1680ESA+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
700-MAX1680ESAT
|
Mouser Electronics | Switching Voltage Regulators 125mA, Frequency-Selectable, Switched-Ca RoHS: Compliant | 3269 |
|
$4.2300 / $7.6400 | Buy Now |
|
|
Analog Devices Inc | 125mA, Frequency-Selectable, S Min Qty: 1 Package Multiple: 1 | 1071 |
|
$4.3405 / $7.5400 | Buy Now |
Part Details for MAX1680ESA+T
MAX1680ESA+T CAD Models
MAX1680ESA+T Part Data Attributes
|
|
MAX1680ESA+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1680ESA+T
Analog Devices Inc
125mA, Frequency-Selectable, Switched-Capacitor Voltage Converters, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | 0.150 INCH, MS-012A, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1997-07-01 | |
| kg CO2e/kg | 12.04 | |
| Average Weight (mg) | 66.775 | |
| CO2e (mg) | 803.971 | |
| Samacsys Description | Switching Voltage Regulators 125mA, Frequency-Selectable, Switched-Capacitor Voltage Converters | |
| Samacsys Manufacturer | Analog Devices | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 93.29 | |
| Category CO2 Kg | 504 | |
| CO2 | 47018.16 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 100 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 1333-86-4 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free Undeterminable | |
| Conflict Mineral Status Source | CMRT V6.31 | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.125 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Switcher Configuration | DOUBLER INVERTER | |
| Switching Frequency-Max | 348 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MAX1680ESA+T
This table gives cross-reference parts and alternative options found for MAX1680ESA+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1680ESA+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1680ESA+ | Analog Devices Inc | $1.1832 | 125mA, Frequency-Selectable, Switched-Capacitor Voltage Converters, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C | MAX1680ESA+T vs MAX1680ESA+ |
| MAX1680ESA-T | Maxim Integrated Products | Check for Price | Switched Capacitor Converter, 0.125A, 348kHz Switching Freq-Max, PDSO8, 0.150 INCH, MS-012A, SOIC-8 | MAX1680ESA+T vs MAX1680ESA-T |
MAX1680ESA+T Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX1680ESA+T involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
To ensure accurate voltage monitoring with the MAX1680ESA+T, it's essential to use a high-precision voltage reference, such as the internal reference or an external reference. Additionally, the input voltage range should be within the specified range, and the input impedance should be high enough to prevent loading effects.
-
The maximum operating temperature range for the MAX1680ESA+T is -40°C to +125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
-
The MAX1680ESA+T has an internal overvoltage protection (OVP) circuit that detects overvoltage conditions and turns off the device. To handle OVP, it's recommended to use an external voltage clamp or a zener diode to limit the input voltage to the specified maximum rating.
-
The recommended input capacitor value for the MAX1680ESA+T is 10nF to 100nF, depending on the input voltage range and the desired noise filtering. A larger capacitor value can provide better noise filtering but may increase the startup time.
