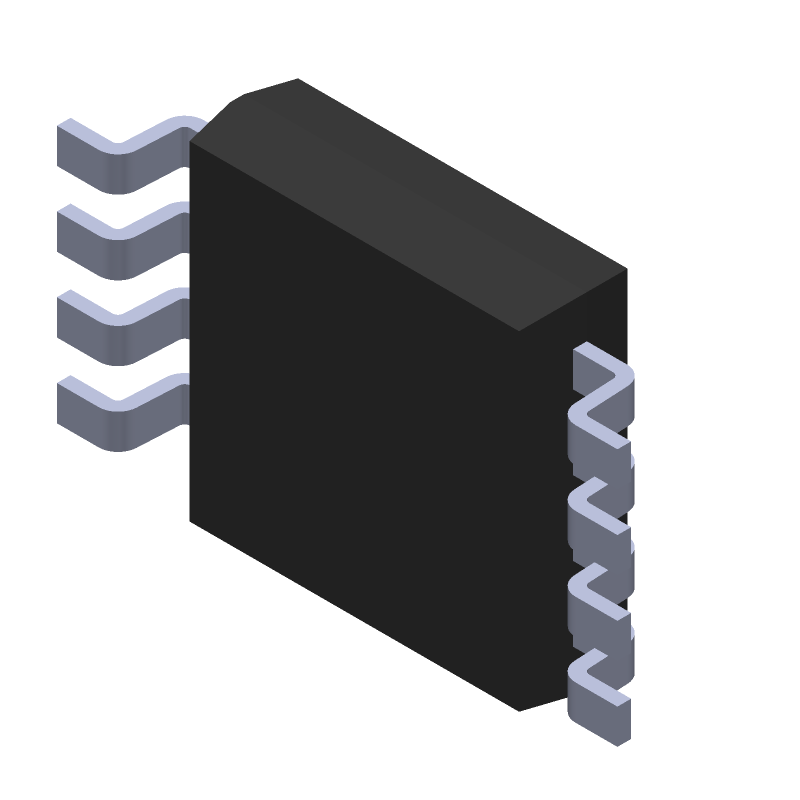

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1674EUA+T by Analog Devices Inc
Results Overview of MAX1674EUA+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX1674EUA+T Information
MAX1674EUA+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX1674EUA+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX1674EUAT
|
Mouser Electronics | Switching Voltage Regulators High-Efficiency, Low-Supply-Current, Com RoHS: Compliant | 17345 |
|
$3.2800 / $6.2700 | Buy Now |
|
|
Analog Devices Inc | High-Efficiency, Low-Supply-Cu Min Qty: 1 Package Multiple: 1 | 2300 |
|
$2.6300 / $7.8200 | Buy Now |
Part Details for MAX1674EUA+T
MAX1674EUA+T CAD Models
MAX1674EUA+T Part Data Attributes
|
|
MAX1674EUA+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1674EUA+T
Analog Devices Inc
High-Efficiency, Low-Supply-Current, Compact, Step-Up DC-DC Converters, 8-MINI_SO-N/A, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-MINI_SO-N/A | |
| Package Description | UMAX-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-07-07 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE FREQUENCY MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.1 V | |
| Input Voltage-Nom | 2 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for MAX1674EUA+T
This table gives cross-reference parts and alternative options found for MAX1674EUA+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1674EUA+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1674EUA+ | Analog Devices Inc | $1.5907 | High-Efficiency, Low-Supply-Current, Compact, Step-Up DC-DC Converters, 8-MINI_SO-N/A, 8 Pins, -40 to 85C | MAX1674EUA+T vs MAX1674EUA+ |
| MAX1674EUA+T | Maxim Integrated Products | $4.8993 | Switching Regulator, Voltage-mode, 1.5A, 500kHz Switching Freq-Max, PDSO8, UMAX-8 | MAX1674EUA+T vs MAX1674EUA+T |
| MAX1674EUA-T | Maxim Integrated Products | Check for Price | Switching Regulator, Voltage-mode, 1.5A, 500kHz Switching Freq-Max, PDSO8, UMAX-8 | MAX1674EUA+T vs MAX1674EUA-T |
| MAX1674EUA | Maxim Integrated Products | Check for Price | Switching Regulator, Voltage-mode, 1.5A, 500kHz Switching Freq-Max, CMOS, PDSO8, UMAX-8 | MAX1674EUA+T vs MAX1674EUA |
MAX1674EUA+T Frequently Asked Questions (FAQ)
-
The MAX1674EUA+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
-
The output capacitor value for the MAX1674EUA+T depends on the specific application requirements, including the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 10uF to 100uF, with a voltage rating that is at least 1.5 times the output voltage. It is also important to consider the ESR (Equivalent Series Resistance) of the capacitor, as a low ESR capacitor can help to reduce output ripple voltage.
-
The MAX1674EUA+T has a maximum input voltage rating of 28V. However, it is recommended to operate the device within the recommended input voltage range of 4.5V to 24V to ensure optimal performance and reliability. Operating the device above the recommended input voltage range can reduce its reliability and lifespan.
-
To ensure that the MAX1674EUA+T is stable and does not oscillate, it is recommended to follow the stability compensation guidelines provided in the datasheet. This includes selecting the correct output capacitor value, using a compensation resistor and capacitor, and ensuring that the device is operated within the recommended input voltage and output current ranges. Additionally, it is recommended to use a low-ESR output capacitor and to minimize the output voltage ripple to ensure stability.
-
The typical startup time for the MAX1674EUA+T is around 10ms to 20ms, depending on the input voltage and output capacitor value. However, this time can vary depending on the specific application requirements and the device's operating conditions. It is recommended to consult the datasheet and application notes for more information on startup time and how to optimize it for specific applications.
