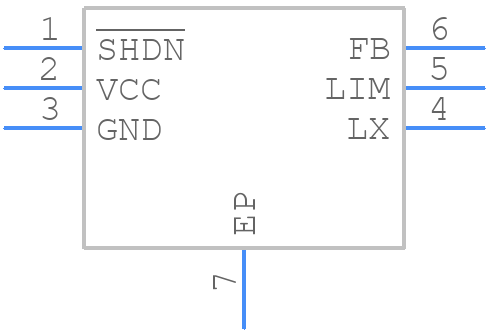

Part Symbol
-
Footprint
-

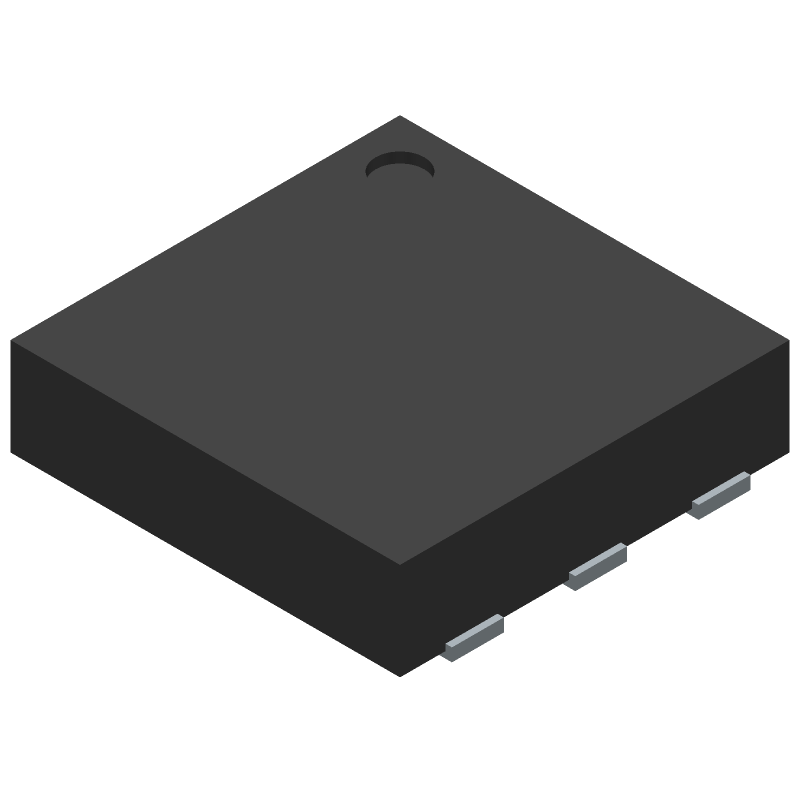

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1605ETT+T by Analog Devices Inc
Results Overview of MAX1605ETT+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Electronic Manufacturing
Automotive
MAX1605ETT+T Information
MAX1605ETT+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX1605ETT+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX1605ETTT
|
Mouser Electronics | LCD Drivers 30V Internal Switch LCD Bias Supply RoHS: Compliant | 885 |
|
$2.4600 / $6.5300 | Buy Now |
|
|
Analog Devices Inc | 30V Internal Switch LCD Bias S Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.9700 / $6.3300 | Buy Now |
Part Details for MAX1605ETT+T
MAX1605ETT+T CAD Models
MAX1605ETT+T Part Data Attributes
|
|
MAX1605ETT+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1605ETT+T
Analog Devices Inc
30V Internal Switch LCD Bias Supply, 6-LFCSP-3X3X0.75, 6 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 6-LFCSP-3X3X0.75 | |
| Package Description | 3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-229, TDFN-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 6-LFCSP-3X3X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2000-07-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.4 V | |
| Input Voltage-Nom | 3.3 V | |
| JESD-30 Code | S-XDSO-N6 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.58 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.13,38 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for MAX1605ETT+T
This table gives cross-reference parts and alternative options found for MAX1605ETT+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1605ETT+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1605ETT | Rochester Electronics LLC | Check for Price | 0.58A SWITCHING REGULATOR, 500kHz SWITCHING FREQ-MAX, DSO6, 3 X 3 MM, 0.80 MM HEIGHT, MO-229, TDFN-6 | MAX1605ETT+T vs MAX1605ETT |
MAX1605ETT+T Frequently Asked Questions (FAQ)
-
The MAX1605ETT+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the battery, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor at the input and a 1uF ceramic capacitor at the output to filter out noise.
-
The output voltage of the MAX1605ETT+T can be adjusted by using an external resistor divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
-
The maximum input voltage that the MAX1605ETT+T can handle is 28V. Exceeding this voltage may damage the device. It is recommended to use a voltage limiter or a transient voltage suppressor to protect the device from voltage spikes or surges.
-
The MAX1605ETT+T has built-in input voltage transient protection, which can handle voltage spikes up to 40V for a duration of 100ms. However, it is still recommended to use a voltage limiter or a transient voltage suppressor to protect the device from repeated or prolonged voltage spikes.
-
The typical startup time for the MAX1605ETT+T is around 100ms. However, this time can vary depending on the input voltage, output load, and other factors. It is recommended to add a startup delay circuit or a soft-start circuit to ensure a smooth startup.
