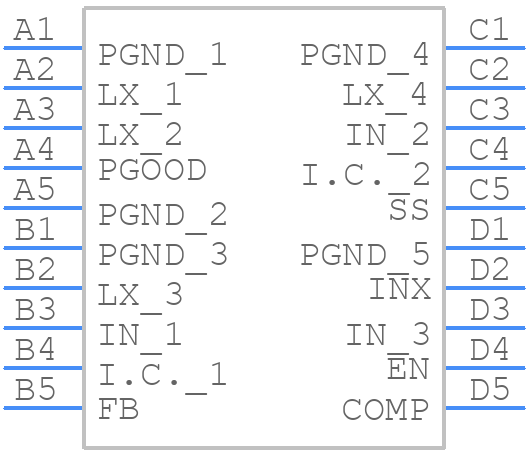

Part Symbol
-
Footprint
-

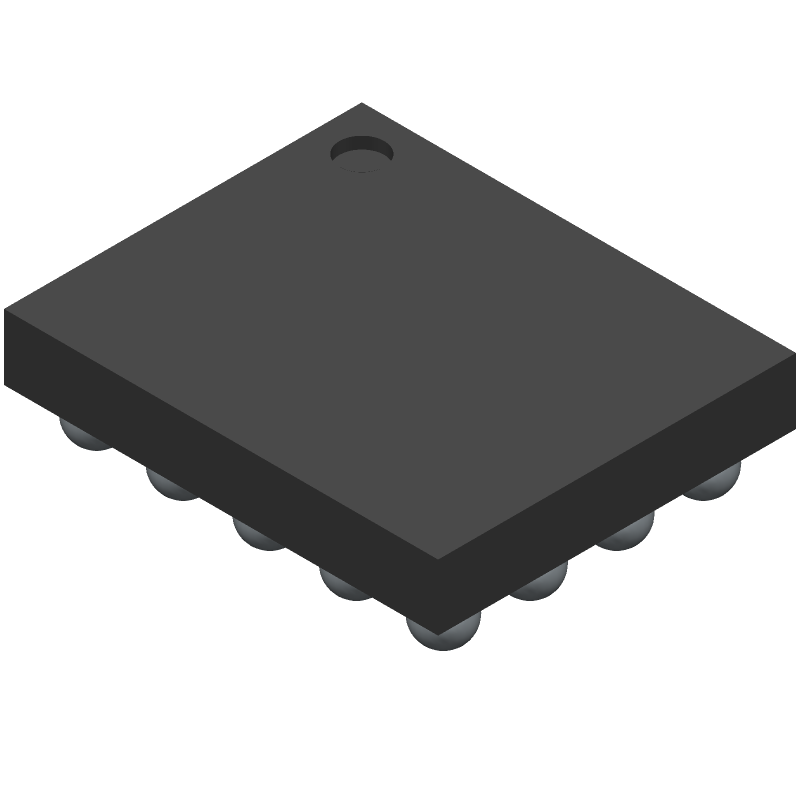

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX15106BGWP+ by Analog Devices Inc
Results Overview of MAX15106BGWP+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX15106BGWP+ Information
MAX15106BGWP+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX15106BGWP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73AK2700
|
Newark | Dc/Dc Conv, Sync Buck, 1Mhz, 105Deg C Rohs Compliant: Yes |Analog Devices MAX15106BGWP+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 70 |
|
$3.5000 / $5.4200 | Buy Now |
|
|
Analog Devices Inc | High-Efficiency, 8A, Current-M Package Multiple: 1 | 26 |
|
Buy Now |
Part Details for MAX15106BGWP+
MAX15106BGWP+ CAD Models
MAX15106BGWP+ Part Data Attributes
|
|
MAX15106BGWP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX15106BGWP+
Analog Devices Inc
High-Efficiency, 6A, Current-Mode Synchronous Step-Down Switching Regulator, 20-WLCSP-N/A, 20 Pins, -40 to 105C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-WLCSP-N/A | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-WLCSP-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2017-04-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-XBGA-20 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 6 A | |
| Output Voltage-Max | 5.225 V | |
| Output Voltage-Min | 0.6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA20,4X5,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.69 mm | |
| Supply Current-Max (Isup) | 6 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1150 kHz | |
| Technology | BICMOS | |
| Terminal Finish | Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Width | 1.5 mm |
