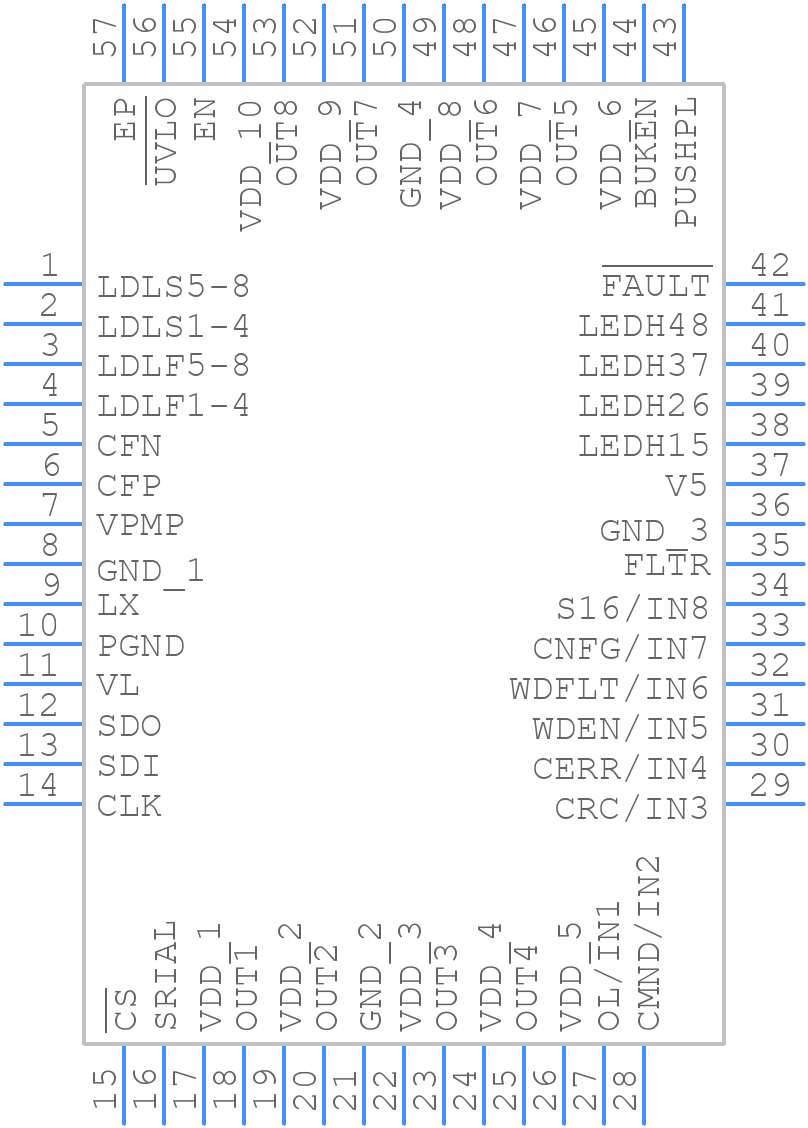

Part Symbol
-

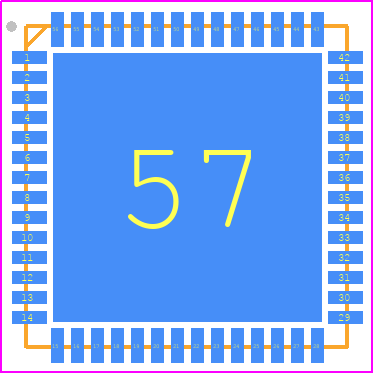

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX14912AKN+ by Analog Devices Inc
Results Overview of MAX14912AKN+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX14912AKN+ Information
MAX14912AKN+ by Analog Devices Inc is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX14912AKN+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX14912AKN+
|
Mouser Electronics | Power Switch ICs - Power Distribution Octal High-Speed High-Side Switch / Push RoHS: Compliant | 49 |
|
$11.3000 / $16.0700 | Buy Now |
|
|
Analog Devices Inc | Octal High-Speed High-Side Swi Package Multiple: 1 | 476 |
|
$8.9000 / $16.1100 | Buy Now |
Part Details for MAX14912AKN+
MAX14912AKN+ CAD Models
MAX14912AKN+ Part Data Attributes
|
|
MAX14912AKN+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX14912AKN+
Analog Devices Inc
Octal High-Speed, High-Side Switch/Push-Pull Driver, 56-LFCSP-8X8X0.85, 56 Pins, -40 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 56-LFCSP-8X8X0.85 | |
| Package Description | QFN-56 | |
| Pin Count | 56 | |
| Manufacturer Package Code | 56-LFCSP-8X8X0.85 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-09-27 | |
| Samacsys Manufacturer | Analog Devices | |
| Built-in Protections | OVER CURRENT; THERMAL; TRANSIENT | |
| Driver Number of Bits | 8 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | S-PQCC-N56 | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | TOTEM-POLE | |
| Output Current Flow Direction | SOURCE AND SINK | |
| Output Peak Current Limit-Nom | 0.87 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC56,.31SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.9 mm | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.6 V | |
| Supply Voltage1-Max | 36 V | |
| Supply Voltage1-Min | 10 V | |
| Supply Voltage1-Nom | 24 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Turn-off Time | 0.7 µs | |
| Turn-on Time | 0.7 µs | |
| Width | 8 mm |
