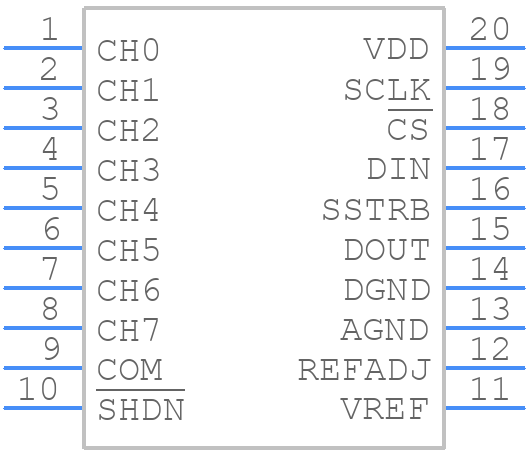

Part Symbol
-

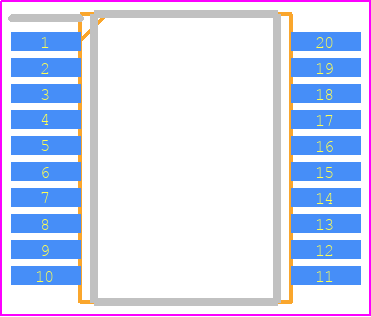

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX147BCAP+ by Analog Devices Inc
Results Overview of MAX147BCAP+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX147BCAP+ Information
MAX147BCAP+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX147BCAP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2513359
|
Farnell | ADC, 8-CH, SAR, 12BIT, 133KSPS, SSOP-20 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 92 |
|
$12.7395 / $22.6123 | Buy Now |
|
DISTI #
700-MAX147BCAP
|
Mouser Electronics | Analog to Digital Converters - ADC +2.7V, Low-Power, 8-Channel, Serial 12-B RoHS: Compliant | 186 |
|
$12.8800 / $20.1400 | Buy Now |
|
|
Analog Devices Inc | +2.7V, Low-Power, 8-Channel, S Package Multiple: 1 | 804 |
|
$9.4142 / $20.1400 | Buy Now |
|
DISTI #
MAX147BCAP+
|
TME | IC: A/D converter, Ch: 8, 12bit, 133ksps, 2.7÷5.25V, SSOP20 Min Qty: 1 | 0 |
|
$12.1000 / $18.7000 | RFQ |
Part Details for MAX147BCAP+
MAX147BCAP+ CAD Models
MAX147BCAP+ Part Data Attributes
|
|
MAX147BCAP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX147BCAP+
Analog Devices Inc
+2.7V, Low-Power, 8-Channel, Serial 12-Bit ADCs, 20-SSOP-5.3_MM, 20 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1997-06-15 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 1.25 V | |
| Analog Input Voltage-Min | -1.25 V | |
| Conversion Time-Max | 65 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.133 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.99 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
