MAX14531EEWC+ Information
MAX14531EEWC+ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX14531EEWC+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | USB 2.0 Hi-Speed and Audio Swi Package Multiple: 1 | 7 |
|
Buy Now |
Part Details for MAX14531EEWC+

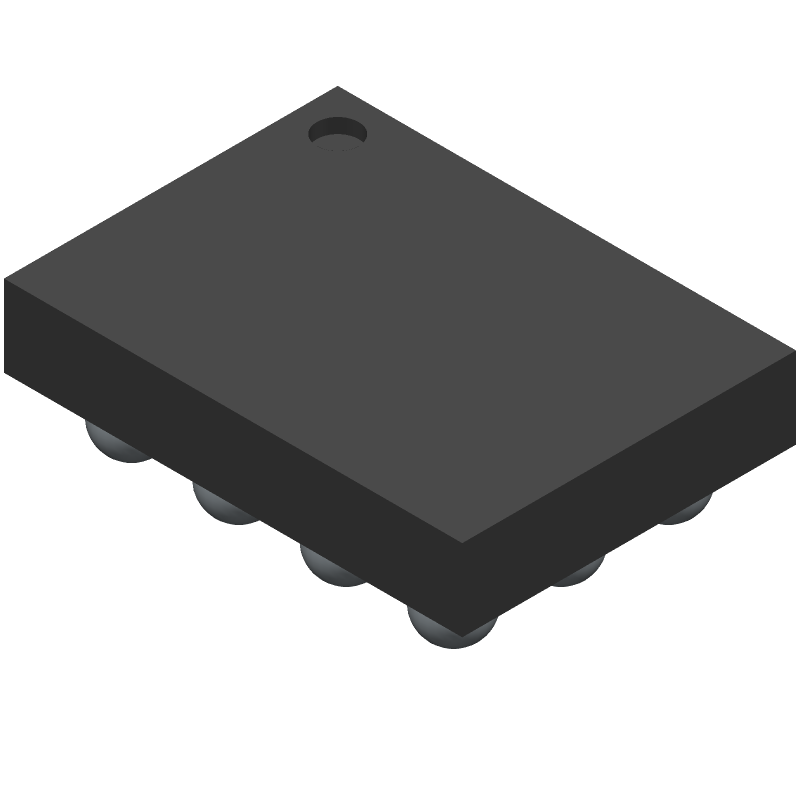

MAX14531EEWC+ CAD Models
MAX14531EEWC+ Part Data Attributes
|
|
MAX14531EEWC+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX14531EEWC+
Analog Devices Inc
USB 2.0 Hi-Speed and Audio Switches with Negative Signal Capability and ±15kV ESD, 12-WLCSP-N/A, 12 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 12-WLCSP-N/A | |
| Package Description | WLP-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 12-WLCSP-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2009-05-29 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | AUDIO/VIDEO SWITCH | |
| JESD-30 Code | R-PBGA-B12 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Off-state Isolation-Nom | 65 dB | |
| On-state Resistance-Max (Ron) | 3 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA12(UNSPEC) | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 6000 ns | |
| Switch-on Time-Max | 250000 ns | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
