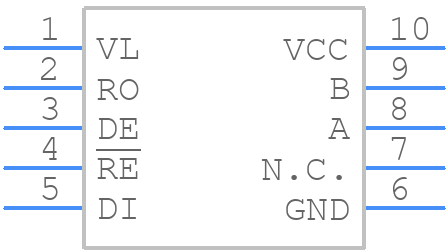

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX13430EEUB+T by Analog Devices Inc
Results Overview of MAX13430EEUB+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
MAX13430EEUB+T Information
MAX13430EEUB+T by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX13430EEUB+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX13430EEUBT
|
Mouser Electronics | RS-485 Interface IC RS-485 Transceivers with Low-Voltage Log RoHS: Compliant | 0 |
|
$3.9900 / $7.3100 | Order Now |
|
|
Analog Devices Inc | RS-485 Transceivers with Low-V Min Qty: 2500 Package Multiple: 1 | 500 |
|
$3.1200 / $8.8800 | Buy Now |
Part Details for MAX13430EEUB+T
MAX13430EEUB+T CAD Models
MAX13430EEUB+T Part Data Attributes
|
|
MAX13430EEUB+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX13430EEUB+T
Analog Devices Inc
RS-485 Transceivers with Low-Voltage Logic Interface, 10-MINI_SO-N/A, 10 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 10-MINI_SO-N/A | |
| Package Description | 3 X 3 MM, ROHS COMPLIANT, USOP, UMAX-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 10-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2008-11-20 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-485; TIA-485 | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.5 V | |
| Output Low Current-Max | 0.001 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 200 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.62 V | |
| Supply Voltage-Nom | 1.8 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 800 ns | |
| Width | 3 mm |
Alternate Parts for MAX13430EEUB+T
This table gives cross-reference parts and alternative options found for MAX13430EEUB+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX13430EEUB+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX13430EEUB+T | Maxim Integrated Products | Check for Price | Line Driver/Receiver, 1 Func, 1 Driver, 1 Rcvr, BICMOS, PDSO10, 3 X 3 MM, ROHS COMPLIANT, USOP, UMAX-10 | MAX13430EEUB+T vs MAX13430EEUB+T |
MAX13430EEUB+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX13430EEUB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
-
The MAX13430EEUB+T requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
-
The MAX13430EEUB+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, cable length, and signal quality.
-
The MAX13430EEUB+T is a universal asynchronous receiver-transmitter (UART) that can be configured for different communication protocols using external resistors and capacitors. The specific configuration depends on the protocol requirements, such as data rate, parity, and stop bits.
-
The MAX13430EEUB+T has built-in ESD protection up to ±15kV human-body model (HBM) and ±8kV IEC 61000-4-2 contact discharge. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage conditions.
