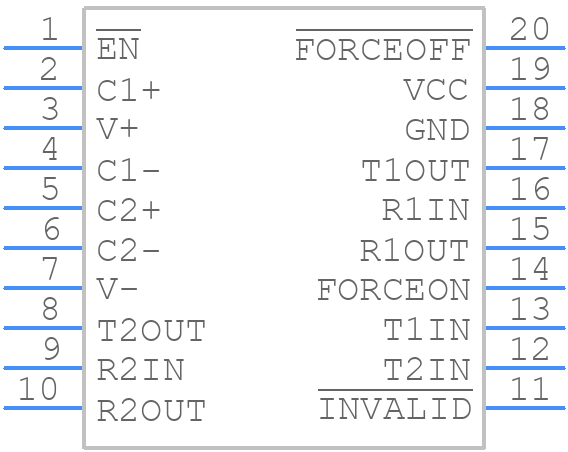

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX13223EEUP+T by Analog Devices Inc
Results Overview of MAX13223EEUP+T by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
MAX13223EEUP+T Information
MAX13223EEUP+T by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX13223EEUP+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX13223EEUPT
|
Mouser Electronics | RS-232 Interface IC 70V Fault-Protected, 3.0V to 5.5V, 2Tx/2Rx RS-232 Transceiver RoHS: Compliant | 7132 |
|
$5.3600 / $9.3400 | Buy Now |
|
DISTI #
V72:2272_26367153
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2427 Container: Cut Strips | Americas - 1758 |
|
$5.2450 / $9.2390 | Buy Now |
|
|
Analog Devices Inc | ±70V Fault-Protected, 3.0V to Min Qty: 1 Package Multiple: 1 | 820 |
|
$4.0900 / $10.8600 | Buy Now |
|
DISTI #
84349703
|
Verical | Dual Transmitter/Receiver RS-232 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2427 | Americas - 1758 |
|
$5.2450 / $9.2390 | Buy Now |
Part Details for MAX13223EEUP+T
MAX13223EEUP+T CAD Models
MAX13223EEUP+T Part Data Attributes
|
|
MAX13223EEUP+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX13223EEUP+T
Analog Devices Inc
±70V Fault-Protected, 3.0V to 5.5V, 2Tx/2Rx RS-232 Transceiver, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-TSSOP_4.4-4.4_MM | |
| Package Description | 6.5 X 4.4 MM, ROHS COMPLIANT, TSSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2009-05-13 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.28 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
MAX13223EEUP+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX13223EEUP+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
-
The MAX13223EEUP+T requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
-
The recommended capacitor value for the BYPASS pin is 10nF to 100nF. A larger capacitor value can help to reduce noise and improve the device's power supply rejection ratio (PSRR), but it may also increase the startup time.
-
The MAX13223EEUP+T can be configured for a specific input voltage range by selecting the appropriate gain resistor values. However, the device has a limited input voltage range of 0V to 5.5V, and the input voltage should not exceed the power supply voltage.
-
The MAX13223EEUP+T can handle input frequencies up to 100kHz. However, the device's performance may degrade at higher frequencies due to the internal filtering and gain bandwidth limitations.
