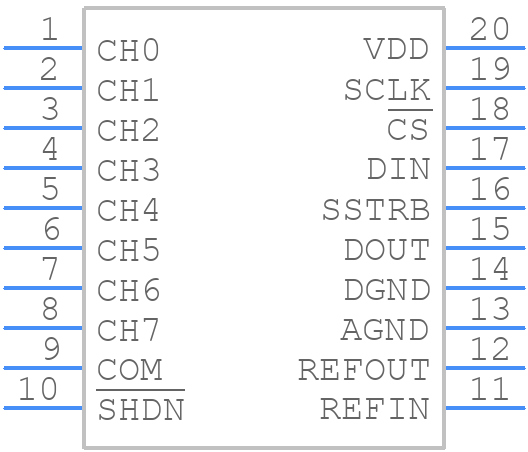

Part Symbol
-

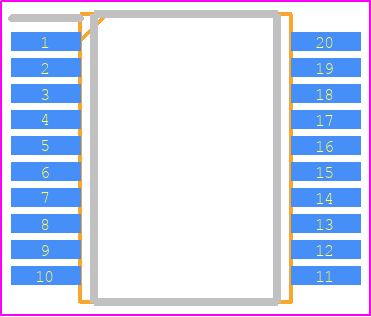

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX1112EAP+ by Analog Devices Inc
Results Overview of MAX1112EAP+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX1112EAP+ Information
MAX1112EAP+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX1112EAP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y1898
|
Newark | Adc, 8-Ch, Sar, 8Bit, 50Ksps, Ssop-20, Resolution (Bits):8Bit, Sampling Rate:50Ksps, Input Channel Type:Differential, Single Ended, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices MAX1112EAP+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
700-MAX1112EAP
|
Mouser Electronics | Analog to Digital Converters - ADC +5V, Low-Power, Multichannel, Serial 8-B RoHS: Compliant | 79 |
|
$6.3200 / $10.9000 | Buy Now |
|
|
Analog Devices Inc | +5V, Low-Power, Multichannel, Package Multiple: 1 | 4752 |
|
$4.8500 / $10.9000 | Buy Now |
|
DISTI #
MAX1112EAP+
|
TME | IC: A/D converter, Ch: 8, 8bit, 0.05ksps, 2.7÷5.5V, SOP20 Min Qty: 66 | 0 |
|
$5.6600 | RFQ |
Part Details for MAX1112EAP+
MAX1112EAP+ CAD Models
MAX1112EAP+ Part Data Attributes
|
|
MAX1112EAP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1112EAP+
Analog Devices Inc
+5V, Low-Power, Multichannel, Serial 8-Bit ADCs, 20-SSOP-5.3_MM, 20 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | ROHS COMPLIANT, SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1997-06-07 | |
| kg CO2e/kg | 11.9 | |
| Average Weight (mg) | 230.25 | |
| CO2e (mg) | 2739.975 | |
| Samacsys Description | MAXIM INTEGRATED PRODUCTS - MAX1112EAP+ - Analogue to Digital Converter, Low Power, 8 bit, 50 kSPS, Differential, Single Ended, SPI, Single | |
| Samacsys Manufacturer | Analog Devices | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 168.53 | |
| Category CO2 Kg | 483 | |
| CO2 | 81399.99 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 100 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 1333-86-4 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free Undeterminable | |
| Conflict Mineral Status Source | CMRT V6.31 | |
| Analog Input Voltage-Max | 2.048 V | |
| Analog Input Voltage-Min | -2.048 V | |
| Conversion Time-Max | 55 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Linearity Error-Max (EL) | 0.1953% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.05 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.99 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
Alternate Parts for MAX1112EAP+
This table gives cross-reference parts and alternative options found for MAX1112EAP+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX1112EAP+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX1112CAP+ | Analog Devices Inc | $1.5718 | +5V, Low-Power, Multichannel, Serial 8-Bit ADCs, 20-SSOP-5.3_MM, 20 Pins, 0 to 70C | MAX1112EAP+ vs MAX1112CAP+ |
| MAX1112CAP+ | Maxim Integrated Products | $4.4236 | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, ROHS COMPLIANT, SSOP-20 | MAX1112EAP+ vs MAX1112CAP+ |
| MAX1112EAP+ | Maxim Integrated Products | $4.4291 | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, ROHS COMPLIANT, SSOP-20 | MAX1112EAP+ vs MAX1112EAP+ |
| MAX1112CAP | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, 5.30 MM, 0.65 MM PITCH, PLASTIC, SSOP-20 | MAX1112EAP+ vs MAX1112CAP |
| MAX1112CAP+T | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, 5.30 MM, 0.65 MM PITCH, PLASTIC, SSOP-20 | MAX1112EAP+ vs MAX1112CAP+T |
| MAX1112EAP-T | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, 5.30 MM, 0.65 MM PITCH, PLASTIC, SSOP-20 | MAX1112EAP+ vs MAX1112EAP-T |
| MAX1112CAP+T | Analog Devices Inc | Check for Price | +5V, Low-Power, Multichannel, Serial 8-Bit ADCs, 20-SSOP-5.3_MM, 20 Pins, 0 to 70C | MAX1112EAP+ vs MAX1112CAP+T |
| MAX1112EAP | Maxim Integrated Products | Check for Price | ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, 5.30 MM, 0.65 MM PITCH, PLASTIC, SSOP-20 | MAX1112EAP+ vs MAX1112EAP |
