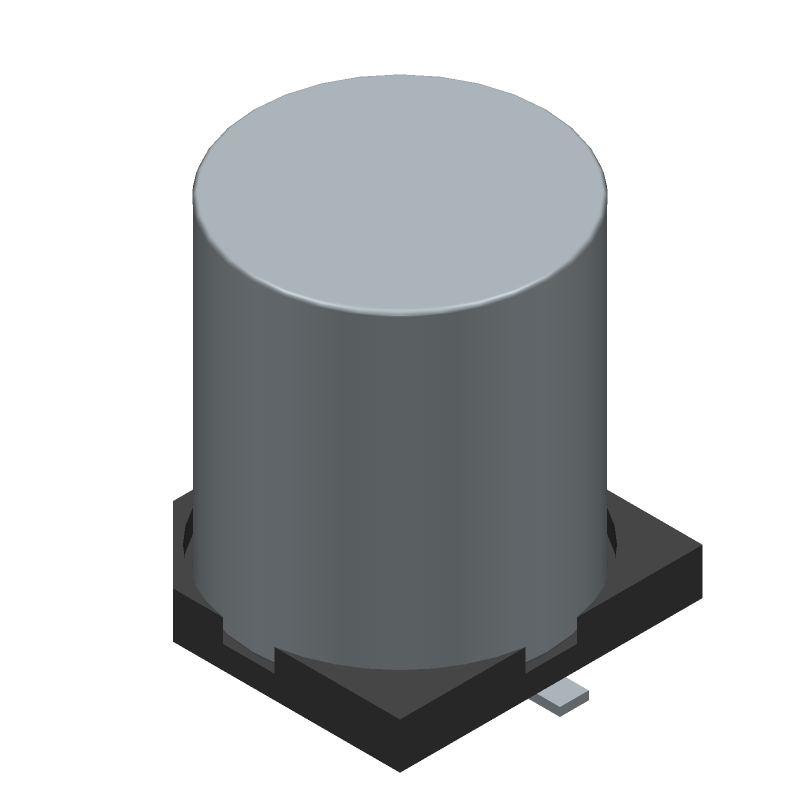

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAL215099003E3 by Vishay Intertechnologies
Results Overview of MAL215099003E3 by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
MAL215099003E3 Information
MAL215099003E3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MAL215099003E3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67AK1111
|
Newark | Cap, 330Uf, 35V, Alu Elec, Radial Can, Capacitor Case/Package:Radial Can - Smd, Capacitance:330Μf, Voltage(Dc):35V, Esr:-, Lifetime @ Temperature:3000 Hours @ 105°C, Polarity:Polar, Product Range:150 Crz Series, Product Length:- Rohs Compliant: Yes |Vishay MAL215099003E3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1092 |
|
$0.9740 / $2.3900 | Buy Now |
|
DISTI #
67AK1111
|
Avnet Americas | SMD 330uF 35V 10x10x12 105?C - Bulk (Alt: 67AK1111) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk | 141 Partner Stock |
|
$1.2700 / $2.3400 | Buy Now |
|
DISTI #
MAL215099003E3
|
Avnet Americas | SMD 330uF 35V 10x10x12 105?C - Tape and Reel (Alt: MAL215099003E3) RoHS: Compliant Min Qty: 1000 Package Multiple: 250 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.8112 / $0.8675 | Buy Now |
|
DISTI #
594-MAL215099003E3
|
Mouser Electronics | Aluminum Electrolytic Capacitors - SMD 330uF 35V 20% RoHS: Compliant | 24701 |
|
$0.9780 / $2.6200 | Buy Now |
|
|
Future Electronics | 150CRZ Series 35 V 330 uF 105°C Ø10.5 x 10.5 x 12.5 mm Aluminum Electrolytic Cap RoHS: Compliant pbFree: Yes Min Qty: 250 Package Multiple: 250 Lead time: 8 Weeks Container: Reel | 750Reel |
|
$1.3800 / $1.4000 | Buy Now |
|
DISTI #
MAL215099003E3
|
TTI | Aluminum Electrolytic Capacitors - SMD 330uF 35V 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 250 Package Multiple: 250 Container: Reel |
Americas - 500 In Stock |
|
$0.8300 / $1.1300 | Buy Now |
|
|
Future Electronics | 150CRZ Series 35 V 330 uF 105�C �10.5 x 10.5 x 12.5 mm Aluminum Electrolytic Cap Min Qty: 250 Package Multiple: 250 |
750 null |
|
$1.3800 / $1.4000 | Buy Now |
|
DISTI #
MAL215099003E3
|
Avnet Abacus | SMD 330uF 35V 10x10x12 105C - Tape and Reel (Alt: MAL215099003E3) RoHS: Compliant Min Qty: 1000 Package Multiple: 250 Lead time: 11 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
MAL215099003E3
|
Avnet Asia | SMD 330uF 35V 10x10x12 105?C (Alt: MAL215099003E3) RoHS: Compliant Min Qty: 1000 Package Multiple: 250 Lead time: 10 Weeks, 0 Days | 0 |
|
$0.8512 / $0.9591 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 250 | 750 |
|
$1.1900 | Buy Now |
Part Details for MAL215099003E3
MAL215099003E3 CAD Models
MAL215099003E3 Part Data Attributes
|
|
MAL215099003E3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MAL215099003E3
Vishay Intertechnologies
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 3939, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 330 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Dielectric Material | ALUMINUM (WET) | |
| Height | 12 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.116 mA | |
| Length | 10 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, BLISTER, 13 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 513.5 mA | |
| Size Code | 3939 | |
| Surface Mount | YES | |
| Tan Delta | 0.12 | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | FLAT | |
| Width | 10 mm |
MAL215099003E3 Frequently Asked Questions (FAQ)
-
The recommended storage condition for MAL215099003E3 is to store them in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Yes, MAL215099003E3 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
Yes, MAL215099003E3 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The maximum operating temperature range for MAL215099003E3 is -40°C to 125°C, making it suitable for a wide range of applications.
-
Yes, MAL215099003E3 meets the requirements for automotive applications, including AEC-Q200 qualification, making it suitable for use in automotive systems.
