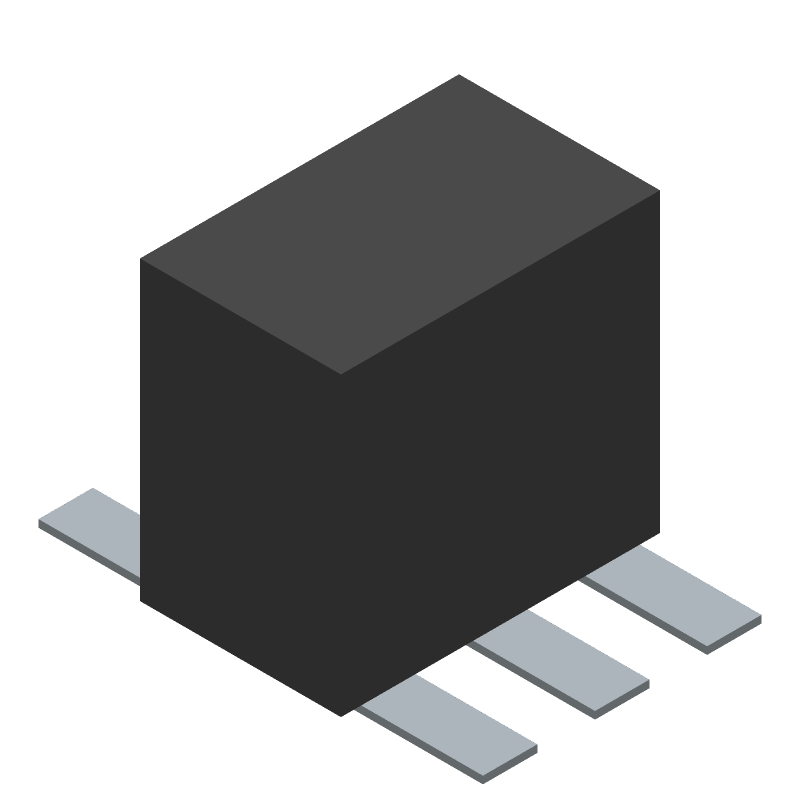

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MABA-010129-CT4A40 by MACOM
Results Overview of MABA-010129-CT4A40 by MACOM
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Renewable Energy
MABA-010129-CT4A40 Information
MABA-010129-CT4A40 by MACOM is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for MABA-010129-CT4A40
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1465-1708-1-ND
|
DigiKey | BALUN 5MHZ-1.2GHZ 50/75 6SMD GW Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1573 In Stock |
|
$1.7803 / $2.5800 | Buy Now |
|
DISTI #
937-MABA010129CT4A40
|
Mouser Electronics | Audio Transformers / Signal Transformers 50-1200MHz Imp. 1:4 50 & 75 ohm RoHS: Compliant | 2178 |
|
$1.5500 / $2.5800 | Buy Now |
|
DISTI #
34475477
|
Verical | RF Transformer 1:2 5 Terminal Gull Wing SMD Min Qty: 34 Package Multiple: 1 Date Code: 1931 | Americas - 161 |
|
$1.5000 | Buy Now |
|
DISTI #
MABA010129-CT4A
|
Richardson RFPD | BALUN TRANSFORMER RoHS: Compliant Min Qty: 2000 | 161 |
|
$1.3200 | Buy Now |
|
DISTI #
MABA-010129-CT4
|
Richardson RFPD | BALUN TRANSFORMER RoHS: Compliant Min Qty: 2000 | 0 |
|
$1.3200 | Buy Now |
Part Details for MABA-010129-CT4A40
MABA-010129-CT4A40 CAD Models
MABA-010129-CT4A40 Part Data Attributes
|
|
MABA-010129-CT4A40
MACOM
Buy Now
Datasheet
|
Compare Parts:
MABA-010129-CT4A40
MACOM
RF Transformer, 5MHz Min, 1200MHz Max, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | M/A-COM TECHNOLOGY SOLUTIONS INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MACOM | |
| Additional Feature | HEIGHT DIM. INCLUDES TERMINALS ALSO; CENTER TAPPED SECONDARY; IMPEDANCE RATIO IS 1:4 | |
| Cut-off Frequency-Max | 1200 MHz | |
| Cut-off Frequency-Min | 5 MHz | |
| Height | 3.61 mm | |
| Insertion Loss | 2 dB | |
| Length | 4.27 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TAPE & REEL | |
| Surface Mount | YES | |
| Transformer Type | RF TRANSFORMER | |
| Width | 2.69 mm |
MABA-010129-CT4A40 Frequently Asked Questions (FAQ)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
-
The device requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V and a current of 100mA is recommended. The bias circuit should be designed to provide a low impedance path to ground.
-
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input and output impedance to 50 ohms.
-
The device is sensitive to ESD damage. Handling the device with an ESD wrist strap or mat, and using ESD-safe packaging and storage is recommended. Anti-static precautions should be taken during assembly and testing.
-
The recommended operating temperature range for the MABA-010129-CT4A40 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
