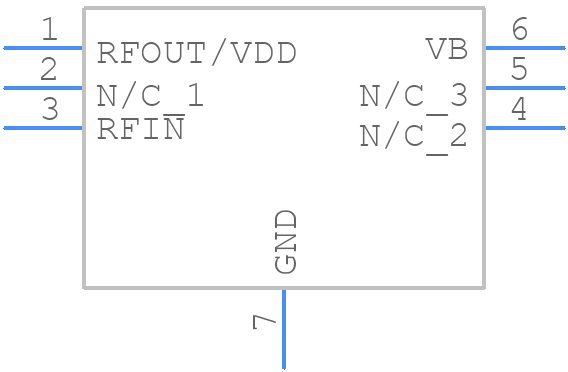

Part Symbol
-
Footprint
-

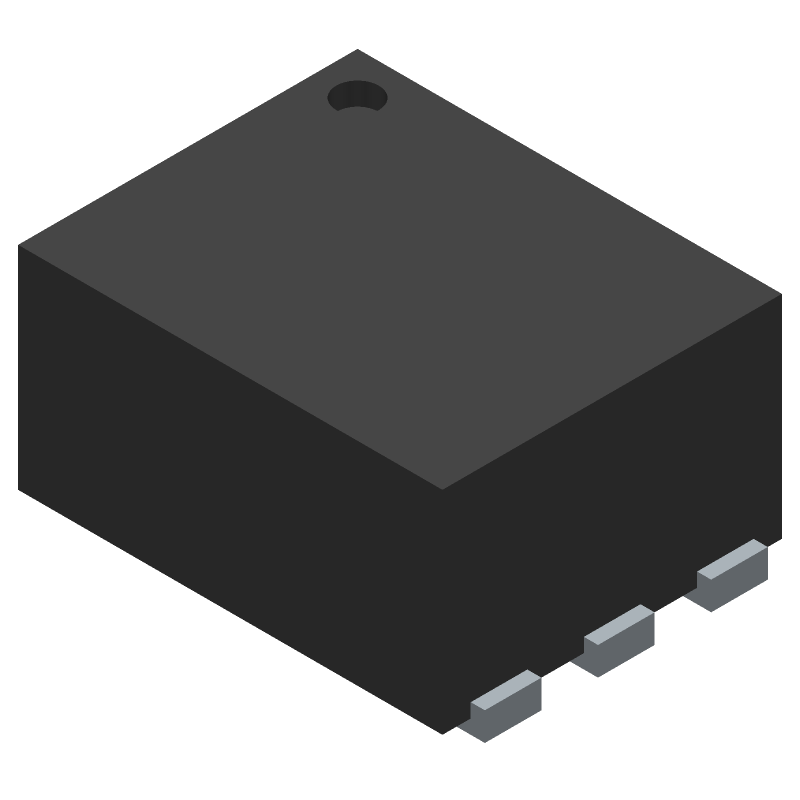

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAAM-011206-TR3000 by MACOM
Results Overview of MAAM-011206-TR3000 by MACOM
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
MAAM-011206-TR3000 Information
MAAM-011206-TR3000 by MACOM is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| G832MB011206322HR | Amphenol Communications Solutions | 0.80mm Board-to-Board 85Ω Connector, Pitch 0.8mm, Height 11.7 mm, 120 Positions, Dual Row, BTB Vertical Receptacle SMT, 8u\\ Gold Black. | |
| G832MB011206122HR | Amphenol Communications Solutions | 0.80mm Board-to-Board 85Ω Connector, Pitch 0.8mm, Height 11.7 mm, 120 Positions, Dual Row, BTB Vertical Receptacle SMT, 15u\\ Gold Black. | |
| 75970-112-06LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded vertical header, Through Hole, Single Row,6 Positions, 2.54 mm (0.100in) Pitch. |
Price & Stock for MAAM-011206-TR3000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MAAM-011206-TR3000-ND
|
DigiKey | IC RF AMP 0HZ-15GHZ 6TDFN Min Qty: 3000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$9.5629 | Buy Now |
|
DISTI #
937-MAAM-011206T3
|
Mouser Electronics | RF Amplifier DC-15GHz NF 4.5dB Gain 13.5dB GaAs RoHS: Compliant | 6210 |
|
$9.4300 / $17.3100 | Buy Now |
|
DISTI #
MAAM-011206-000
|
Richardson RFPD | GAIN BLOCK RoHS: Compliant Min Qty: 1 | 0 |
|
$10.9900 / $13.9900 | Buy Now |
|
DISTI #
MAAM-011206-TR3
|
Richardson RFPD | GAIN BLOCK RoHS: Compliant Min Qty: 3000 | 0 |
|
$8.3600 | Buy Now |
Part Details for MAAM-011206-TR3000
MAAM-011206-TR3000 CAD Models
MAAM-011206-TR3000 Part Data Attributes
|
|
MAAM-011206-TR3000
MACOM
Buy Now
Datasheet
|
Compare Parts:
MAAM-011206-TR3000
MACOM
Wide Band Low Power Amplifier, 0MHz Min, 15000MHz Max, TDFN-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | M/A-COM TECHNOLOGY SOLUTIONS INC | |
| Package Description | TDFN-6 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MACOM | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Gain | 9.5 dB | |
| Input Power-Max (CW) | 15 dBm | |
| JESD-609 Code | e4 | |
| Operating Frequency-Max | 15000 MHz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| RF/Microwave Device Type | WIDE BAND LOW POWER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
MAAM-011206-TR3000 Frequently Asked Questions (FAQ)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
-
The MAAM-011206-TR3000 requires a bias tee or a DC block to provide the correct voltage and current. A bias voltage of 5V to 12V is recommended, and the current should be limited to 100mA to prevent overheating.
-
The MAAM-011206-TR3000 can handle up to 30 dBm of input power, but it's recommended to operate at 20 dBm or less to ensure reliable performance and prevent damage.
-
Check the PCB layout for any parasitic inductance or capacitance that may cause oscillations. Ensure the device is properly biased and the input/output impedances are matched. Use a spectrum analyzer to identify any unwanted signals or harmonics.
-
Store the MAAM-011206-TR3000 in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die. Use an anti-static wrist strap or mat when handling the device to prevent ESD damage.
