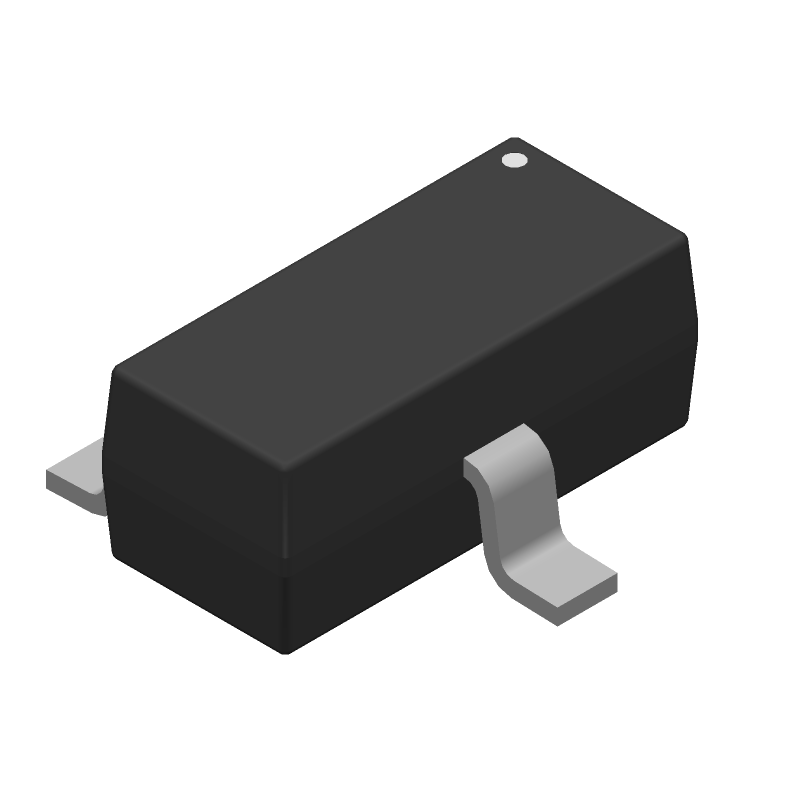

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MA4P7433CK-287T by MACOM
Results Overview of MA4P7433CK-287T by MACOM
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MA4P7433CK-287T Information
MA4P7433CK-287T by MACOM is a PIN Diode.
PIN Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MA4P7433CK-287T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1465-1240-1-ND
|
DigiKey | RF DIODE PIN 75V 250MW SOT-23-3 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4645 In Stock |
|
$0.8443 / $1.7400 | Buy Now |
|
DISTI #
937-MA4P7433CK-287T
|
Mouser Electronics | PIN Diodes Rs= 1.5 Ohms Max. -65C +150C RoHS: Compliant | 2206 |
|
$0.7860 / $1.7400 | Buy Now |
|
DISTI #
MA4P7433CK-287T
|
Richardson RFPD | RF PIN DIODE RoHS: Compliant Min Qty: 3000 | 0 |
|
$0.7600 | Buy Now |
Part Details for MA4P7433CK-287T
MA4P7433CK-287T CAD Models
MA4P7433CK-287T Part Data Attributes
|
|
MA4P7433CK-287T
MACOM
Buy Now
Datasheet
|
Compare Parts:
MA4P7433CK-287T
MACOM
Pin Diode, 75V V(BR), Silicon, ROHS COMPLIANT, PLASTIC, CASE 287, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | M/A-COM TECHNOLOGY SOLUTIONS INC | |
| Pin Count | 3 | |
| Manufacturer Package Code | CASE 287 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MACOM | |
| Additional Feature | LOW DISTORTION | |
| Application | SWITCHING | |
| Breakdown Voltage-Min | 75 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Capacitance-Max | 0.35 pF | |
| Diode Element Material | SILICON | |
| Diode Forward Resistance-Max | 1.5 Ω | |
| Diode Res Test Current | 10 mA | |
| Diode Type | PIN DIODE | |
| Frequency Band | S BAND | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Minority Carrier Lifetime-Nom | 0.2 µs | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Technology | POSITIVE-INTRINSIC-NEGATIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
MA4P7433CK-287T Frequently Asked Questions (FAQ)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
-
The MA4P7433CK-287T requires a bias tee or a DC block to isolate the RF signal from the DC bias. Ensure the bias voltage is within the recommended range (typically 5-12V) and the current limit is set to prevent overheating.
-
The MA4P7433CK-287T is rated for operation up to 150°C, but derating is recommended for reliable operation. Consult the datasheet for specific derating guidelines.
-
MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the RF input and output lines to prevent damage from electrostatic discharge.
-
Store the MA4P7433CK-287T in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package body, avoiding touching the pins or electrical connections to prevent damage or contamination.
