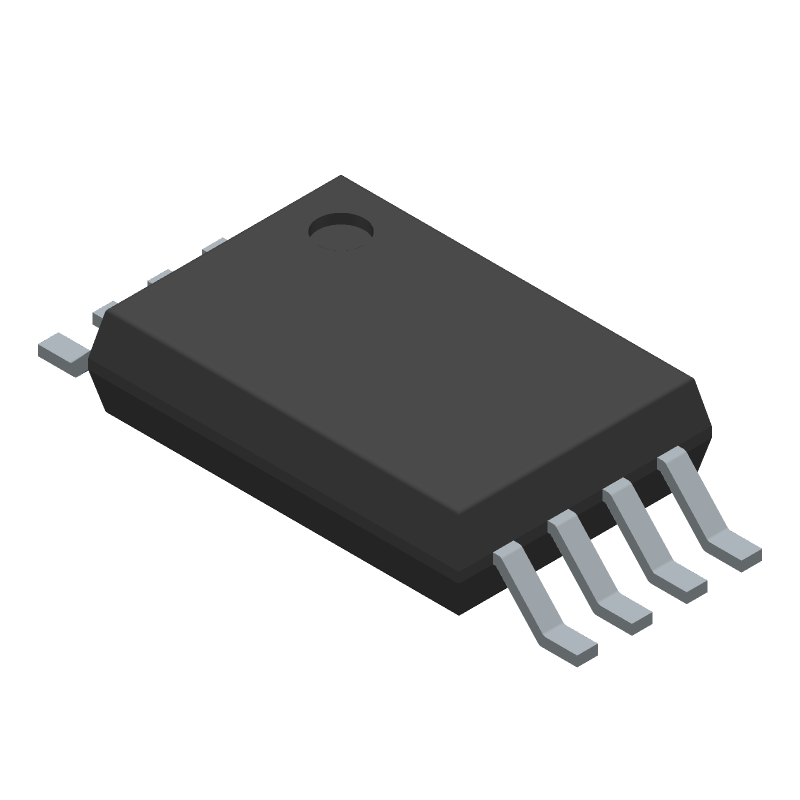

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M95080-RDW6TP by STMicroelectronics
Results Overview of M95080-RDW6TP by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
M95080-RDW6TP Information
M95080-RDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M95080-RDW6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-8680-1-ND
|
DigiKey | IC EEPROM 8KBIT SPI 20MHZ 8TSSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8779 In Stock |
|
$0.2319 / $0.3200 | Buy Now |
|
DISTI #
M95080-RDW6TP
|
Avnet Americas | EEPROM Serial-SPI 8K-bit 1K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M95080-RDW6TP) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1690 / $0.1725 | Buy Now |
|
DISTI #
511-M95080-RDW6TP
|
Mouser Electronics | EEPROM 16 Kbit and 8 Kbit Seril SPI bus EEPROM RoHS: Compliant | 3980 |
|
$0.2240 / $0.3200 | Buy Now |
|
DISTI #
E02:0323_00209392
|
Arrow Electronics | EEPROM Serial-SPI 8K-bit 1K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks Date Code: 2507 | Europe - 8000 |
|
$0.2133 / $0.2491 | Buy Now |
|
|
STMicroelectronics | 8 Kbit SPI bus EEPROM with high-speed clock RoHS: Compliant Min Qty: 1 | 3980 |
|
$0.2600 / $0.3100 | Buy Now |
|
DISTI #
87838060
|
Verical | EEPROM Serial-SPI 8K-bit 1K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2507 | Americas - 8000 |
|
$0.2142 / $0.2501 | Buy Now |
|
DISTI #
M95080-RDW6TP
|
TME | IC: EEPROM memory, 8kbEEPROM, SPI, 1024x8bit, 1.8÷5.5V, 20MHz Min Qty: 1 | 0 |
|
$0.2730 / $0.7700 | RFQ |
|
DISTI #
M95080-RDW6TP
|
Avnet Silica | EEPROM SerialSPI 8Kbit 1K x 8 25V33V5V 8Pin TSSOP TR (Alt: M95080-RDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
M95080-RDW6TP
|
EBV Elektronik | EEPROM SerialSPI 8Kbit 1K x 8 25V33V5V 8Pin TSSOP TR (Alt: M95080-RDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for M95080-RDW6TP
M95080-RDW6TP CAD Models
M95080-RDW6TP Part Data Attributes
|
|
M95080-RDW6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M95080-RDW6TP
STMicroelectronics
8 Kbit SPI bus EEPROM with high-speed clock
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Clock Frequency-Max (fCLK) | 5 MHz | |
| Data Retention Time-Min | 40 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 8192 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 1024 words | |
| Number of Words Code | 1000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 5e-7 A | |
| Supply Current-Max | 0.001 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for M95080-RDW6TP
This table gives cross-reference parts and alternative options found for M95080-RDW6TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M95080-RDW6TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M95080-RDW6P | STMicroelectronics | Check for Price | 1KX8 SPI BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, TSSOP-8 | M95080-RDW6TP vs M95080-RDW6P |
M95080-RDW6TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the M95080-RDW6TP is -40°C to +125°C.
-
To prevent damage, it's recommended to follow the recommended soldering profile, use a soldering iron with a temperature below 260°C, and avoid applying excessive force or bending the device during the soldering process.
-
The maximum operating frequency for the M95080-RDW6TP is 40 MHz.
-
While the M95080-RDW6TP is designed to operate in a variety of environments, it's recommended to take precautions when using it in high-humidity environments. Consider using moisture-resistant packaging and follow proper handling and storage procedures to minimize the risk of damage.
-
To ensure data integrity, it's recommended to follow the recommended power-down and power-up sequences outlined in the datasheet, and consider implementing additional data protection mechanisms such as checksums or error-correcting codes.
