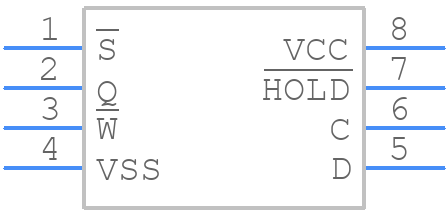

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M95080-DWDW4TP/K by STMicroelectronics
Results Overview of M95080-DWDW4TP/K by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
M95080-DWDW4TP/K Information
M95080-DWDW4TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M95080-DWDW4TP/K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-15233-1-ND
|
DigiKey | IC EEPROM 8KBIT SPI 20MHZ 8TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.6081 / $0.8200 | Buy Now |
|
DISTI #
M95080-DWDW4TP/K
|
Avnet Americas | EEPROM Serial-SPI 8K-bit 1K x 8 3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M95080-DWDW4TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.5926 / $0.6049 | Buy Now |
|
DISTI #
511-M95080-DWDW4TP/K
|
Mouser Electronics | EEPROM Automotive 8-Kbit SPI bus EEPROM with high-speed clock RoHS: Compliant | 0 |
|
$0.5880 / $0.6010 | Order Now |
|
DISTI #
70602617
|
RS | M95080-DWDW4TP/K Serial EEPROM Memory, 8kbit, 80ns, 2.5 to 5.5 V 8-Pin TSSOP Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$1.0300 | RFQ |
|
|
STMicroelectronics | Automotive 8-Kbit SPI bus EEPROM with high-speed clock RoHS: Compliant Min Qty: 1 | 0 |
|
$0.6800 / $0.9300 | Buy Now |
|
DISTI #
M95080-DWDW4TP/K
|
Avnet Silica | EEPROM SerialSPI 8Kbit 1K x 8 33V5V 8Pin TSSOP TR (Alt: M95080-DWDW4TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
M95080-DWDW4TP/K
|
EBV Elektronik | EEPROM SerialSPI 8Kbit 1K x 8 33V5V 8Pin TSSOP TR (Alt: M95080-DWDW4TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for M95080-DWDW4TP/K
M95080-DWDW4TP/K CAD Models
M95080-DWDW4TP/K Part Data Attributes
|
|
M95080-DWDW4TP/K
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M95080-DWDW4TP/K
STMicroelectronics
Automotive 8-Kbit SPI bus EEPROM with high-speed clock
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | TSSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Clock Frequency-Max (fCLK) | 10 MHz | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.4 mm | |
| Memory Density | 8192 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 1024 words | |
| Number of Words Code | 1000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 145 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | SPI | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 4 ms |
