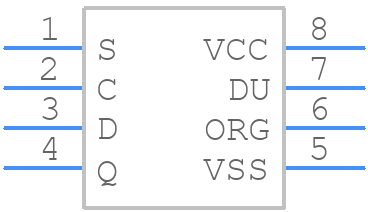

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M93C76-WMN6TP by STMicroelectronics
Results Overview of M93C76-WMN6TP by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
M93C76-WMN6TP Information
M93C76-WMN6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M93C76-WMN6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AC1795
|
Newark | Memory Rohs Compliant: Yes |Stmicroelectronics M93C76-WMN6TP RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 12500 |
|
$0.1220 | Buy Now |
|
DISTI #
07AH6831
|
Newark | Eeprom, 8Kbit, -40 To 85Deg C, Memory Size:8Kbit, Eeprom Memory Configuration:1K X 8Bit, Memory Interface Type:Serial Microwire, Clock Frequency:2Mhz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltagerohs Compliant: Yes |Stmicroelectronics M93C76-WMN6TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.3250 / $0.3780 | Buy Now |
|
DISTI #
497-8662-1-ND
|
DigiKey | IC EEPROM 8KBIT MICROWIRE 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2572 In Stock |
|
$0.2207 / $0.2900 | Buy Now |
|
DISTI #
M93C76-WMN6TP
|
Avnet Americas | EEPROM Serial-Microwire 8K-bit 1K x 8/512 x 16 3.3V/5V 8-Pin SO N T/R - Tape and Reel (Alt: M93C76-WMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 12500 |
|
$0.1216 | Buy Now |
|
DISTI #
511-M93C76-WMN6TP
|
Mouser Electronics | EEPROM 2.5 V to 5.5 V 8K RoHS: Compliant | 6198 |
|
$0.2200 / $0.3000 | Buy Now |
|
DISTI #
V36:1790_06555831
|
Arrow Electronics | EEPROM Serial-Microwire 8K-bit 1K x 8/512 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2445 | Americas - 10000 |
|
$0.2313 / $0.2430 | Buy Now |
|
|
STMicroelectronics | 8 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM RoHS: Compliant Min Qty: 1 | 6198 |
|
$0.2400 / $0.2800 | Buy Now |
|
DISTI #
86940810
|
Verical | EEPROM Serial-Microwire 8K-bit 1K x 8/512 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Date Code: 2445 | Americas - 10000 |
|
$0.2313 / $0.2430 | Buy Now |
|
|
Future Electronics | M93C76 Series 8 Kb (1 K x 8 / 512 x 16) 2.5 V Microwire� Serial EEPROM - SOIC-8 Min Qty: 2500 Package Multiple: 2500 |
5000 null |
|
$0.1310 / $0.1390 | Buy Now |
|
DISTI #
M93C76-WMN6TP
|
Avnet Silica | EEPROM SerialMicrowire 8Kbit 1K x 8512 x 16 33V5V 8Pin SO N TR (Alt: M93C76-WMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for M93C76-WMN6TP
M93C76-WMN6TP CAD Models
M93C76-WMN6TP Part Data Attributes
|
|
M93C76-WMN6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M93C76-WMN6TP
STMicroelectronics
8 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Alternate Memory Width | 8 | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| Data Retention Time-Min | 40 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Memory Density | 8192 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 512 words | |
| Number of Words Code | 512 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512X16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | MICROWIRE | |
| Standby Current-Max | 0.00001 A | |
| Supply Current-Max | 0.0015 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | SOFTWARE |
