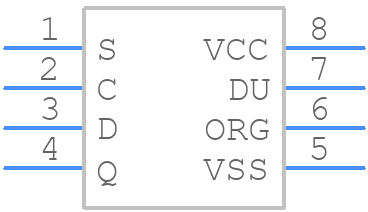

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M93C56-WMN6TP by STMicroelectronics
Results Overview of M93C56-WMN6TP by STMicroelectronics
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
M93C56-WMN6TP Information
M93C56-WMN6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| NM93C56EN | Rochester Electronics LLC | 93C56 - EEPROM, 128X16, Serial, CMOS, PDIP8 |
Price & Stock for M93C56-WMN6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-8658-1-ND
|
DigiKey | IC EEPROM 2KBIT MICROWIRE 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
5400 In Stock |
|
$0.1518 / $0.2100 | Buy Now |
|
DISTI #
511-M93C56-WMN6TP
|
Mouser Electronics | EEPROM 2.5 V to 5.5 V 2K RoHS: Compliant | 6370 |
|
$0.1530 / $0.2100 | Buy Now |
|
DISTI #
E02:0323_00025957
|
Arrow Electronics | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2508 | Europe - 12500 |
|
$0.0899 / $0.1399 | Buy Now |
|
DISTI #
V72:2272_06555821
|
Arrow Electronics | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2321 Container: Cut Strips | Americas - 5937 |
|
$0.1031 / $0.1176 | Buy Now |
|
DISTI #
V36:1790_06555821
|
Arrow Electronics | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2420 | Americas - 5000 |
|
$0.0817 / $0.1021 | Buy Now |
|
|
Future Electronics | M93C56 Series 2 Kb (256 x 8 / 128 x 16) 2.5 V Microwire® Serial EEPROM -SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 5000Reel |
|
$0.0874 / $0.0940 | Buy Now |
|
|
Future Electronics | M93C56 Series 2 Kb (256 x 8 / 128 x 16) 2.5 V Microwire® Serial EEPROM -SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 0Reel |
|
$0.0874 / $0.0940 | Buy Now |
|
DISTI #
9551077
|
Verical | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 12500 |
|
$0.0902 / $0.1400 | Buy Now |
|
DISTI #
68485287
|
Verical | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 66 Package Multiple: 1 Date Code: 2321 | Americas - 5937 |
|
$0.1031 / $0.1135 | Buy Now |
|
DISTI #
81320825
|
Verical | EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Date Code: 2420 | Americas - 5000 |
|
$0.0817 | Buy Now |
Part Details for M93C56-WMN6TP
M93C56-WMN6TP CAD Models
M93C56-WMN6TP Part Data Attributes
|
|
M93C56-WMN6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M93C56-WMN6TP
STMicroelectronics
2 Kbit (8-bit or 16-bit wide) MICROWIRE serial access EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Alternate Memory Width | 8 | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| Data Retention Time-Min | 40 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Memory Density | 2048 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 128 words | |
| Number of Words Code | 128 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 128X16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | MICROWIRE | |
| Standby Current-Max | 0.000005 A | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | SOFTWARE |
