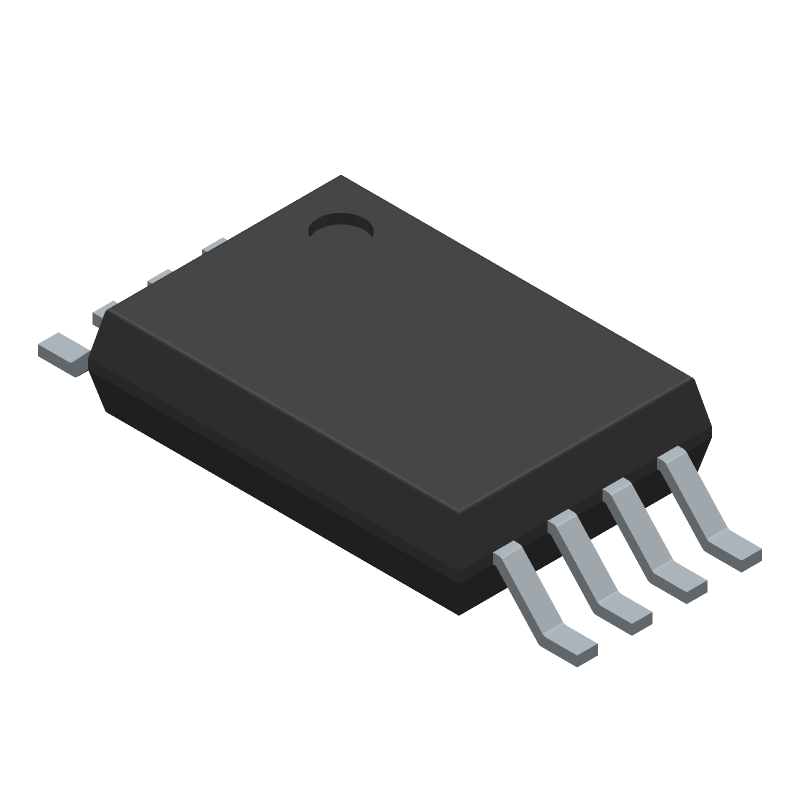

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M93C46-RDW3TP/K by STMicroelectronics
Results Overview of M93C46-RDW3TP/K by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
M93C46-RDW3TP/K Information
M93C46-RDW3TP/K by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M93C46-RDW3TP/K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40X8493
|
Newark | Eeprom Mwire |Stmicroelectronics M93C46-RDW3TP/K RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
497-14430-1-ND
|
DigiKey | IC EEPROM 1KBIT MICROWIRE 8TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2985 / $0.4500 | Buy Now |
|
DISTI #
M93C46-RDW3TP/K
|
Avnet Americas | EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: M93C46-RDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.2790 / $0.2848 | Buy Now |
|
DISTI #
511-M93C46-RDW3TP/K
|
Mouser Electronics | EEPROM Auto 1-Kb MICROWIRE serial EEPROM RoHS: Compliant | 0 |
|
$0.2870 / $0.2980 | Order Now |
|
DISTI #
V79:2366_17786331
|
Arrow Electronics | EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1420 | Americas - 2258 |
|
$0.2917 | Buy Now |
|
DISTI #
70521059
|
RS | M93C46-RDW3TP/K Serial EEPROM Memory, 1kbit, 200ns, 1.8 to 5.5 V 8-Pin TSSOP Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4390 / $0.5480 | RFQ |
|
DISTI #
26115136
|
Verical | EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 2.5V/3.3V/5V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 1420 | Americas - 2258 |
|
$0.2917 | Buy Now |
|
DISTI #
M93C46-RDW3TP/K
|
Avnet Silica | EEPROM SerialMicrowire 1Kbit 128 x 864 x 16 25V33V5V 8Pin TSSOP TR (Alt: M93C46-RDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
M93C46-RDW3TP/K
|
EBV Elektronik | EEPROM SerialMicrowire 1Kbit 128 x 864 x 16 25V33V5V 8Pin TSSOP TR (Alt: M93C46-RDW3TP/K) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for M93C46-RDW3TP/K
M93C46-RDW3TP/K CAD Models
M93C46-RDW3TP/K Part Data Attributes
|
|
M93C46-RDW3TP/K
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M93C46-RDW3TP/K
STMicroelectronics
Automotive 1-Kbit MICROWIRE serial EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Alternate Memory Width | 8 | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 64 words | |
| Number of Words Code | 64 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 64X16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | MICROWIRE | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 4 ms |
M93C46-RDW3TP/K Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the M93C46-RDW3TP/K is 2.5V to 5.5V.
-
The HOLD pin should be kept high during power-up and power-down sequences to prevent any unwanted writes or erases.
-
The M93C46-RDW3TP/K supports up to 100,000 erase cycles.
-
To ensure data retention, the device should be powered within the recommended operating voltage range, and the device should not be exposed to extreme temperatures or radiation.
-
The WP pin is the Write Protect pin, which allows the user to protect the entire memory array from writes. To use it, tie the WP pin to VCC to enable write protection, or tie it to GND to disable write protection.
