D Microminiature Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Plug,

Part Details for M83513/01-GN by Cinch Connectivity Solutions

Results Overview of M83513/01-GN by Cinch Connectivity Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M83513/01-GN Information

M83513/01-GN by Cinch Connectivity Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M83513/01-GN

Part # Distributor Description Stock Price Buy
DISTI # 01N4980
Newark D Sub Conn, Plug, 51 Pos, Solder Cup, D Sub Connector Type:Micro D, Gender:Plug, Product Range:Mil-Dtl-83513 Series, No. Of Contacts:51Contacts, D Sub Shell Size:-, Contact Termination Type:Solder Cup, Connector Mounting:Panel Mount Rohs Compliant: Yes |Cinch Connectivity Solutions M83513/01-GN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 38
  • 1 $150.7900
  • 10 $150.7900
  • 25 $150.7900
  • 50 $140.0200
$140.0200 / $150.7900 Buy Now
DISTI # 116-M83513/01-GN-ND
DigiKey CONN MICRO-D PLUG 51POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Bag 22
In Stock
  • 1 $160.9500
  • 10 $136.8210
  • 25 $128.2648
  • 50 $122.5124
$122.5124 / $160.9500 Buy Now
DISTI # 3937-M83513/01-GN-116-ND
DigiKey CONN MICRO-D PLUG 51POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Retail Package MARKETPLACE PRODUCT Temporarily Out of Stock
Buy Now
DISTI # 538-M83513/01-GN
Mouser Electronics D-Sub MIL Spec Connectors MIL-DTL-83513 Plug 51P M Nkl RoHS: Compliant 17
  • 1 $160.9500
  • 10 $131.2300
  • 25 $122.5200
  • 50 $122.5100
$122.5100 / $160.9500 Buy Now
Onlinecomponents.com   RoHS: Compliant 23 In Stock
  • 1 $158.0800
  • 5 $146.2800
  • 10 $140.0100
  • 15 $134.2600
  • 25 $132.2500
  • 50 $130.2600
$130.2600 / $158.0800 Buy Now
Quest Components 51 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, PLUG 10
  • 1 $400.5788
  • 3 $373.8735
  • 6 $347.1683
$347.1683 / $400.5788 Buy Now
DISTI # M83513/01-GN
IBS Electronics M83513/01-GN by CINCH CONNECTIVITY SOLUTIONS is a MicroD 51-position plug with solder cup, microminiature D-pin, panel mount, 51 terminals, and 1 port. Min Qty: 2 Package Multiple: 1 23
  • 2 $128.5875
  • 5 $190.1640
  • 10 $182.0130
  • 15 $174.5380
  • 25 $171.9250
  • 50 $169.3380
$128.5875 / $190.1640 Buy Now
DISTI # CIMM83513/01-GN
Interstate Connecting Components   0
  • 1 $196.0200
  • 5 $189.0193
  • 10 $176.4180
  • 25 $165.3918
  • 50 $153.4070
$153.4070 / $196.0200 Buy Now
DISTI # M83513/01-GN
FDH Electronics Connector MIL M Min Qty: 1 97
  • 1 $52.5070
  • 5 $48.9470
  • 10 $43.7560
  • 25 $43.1030
  • 50 $43.1030
  • 100 $42.4690
  • 250 $41.2550
  • 500 $40.1090
  • 1,000 $39.5600
  • 2,500 $39.5600
  • 10,000 $39.5600
$39.5600 / $52.5070 Buy Now RFQ
Master Electronics   RoHS: Compliant 23 In Stock
  • 1 $158.0800
  • 5 $146.2800
  • 10 $140.0100
  • 15 $134.2600
  • 25 $132.2500
  • 50 $130.2600
$130.2600 / $158.0800 Buy Now

Part Details for M83513/01-GN

M83513/01-GN Part Data Attributes

Parametric Data
M83513/01-GN Cinch Connectivity Solutions
Buy Now Datasheet
Compare Parts:

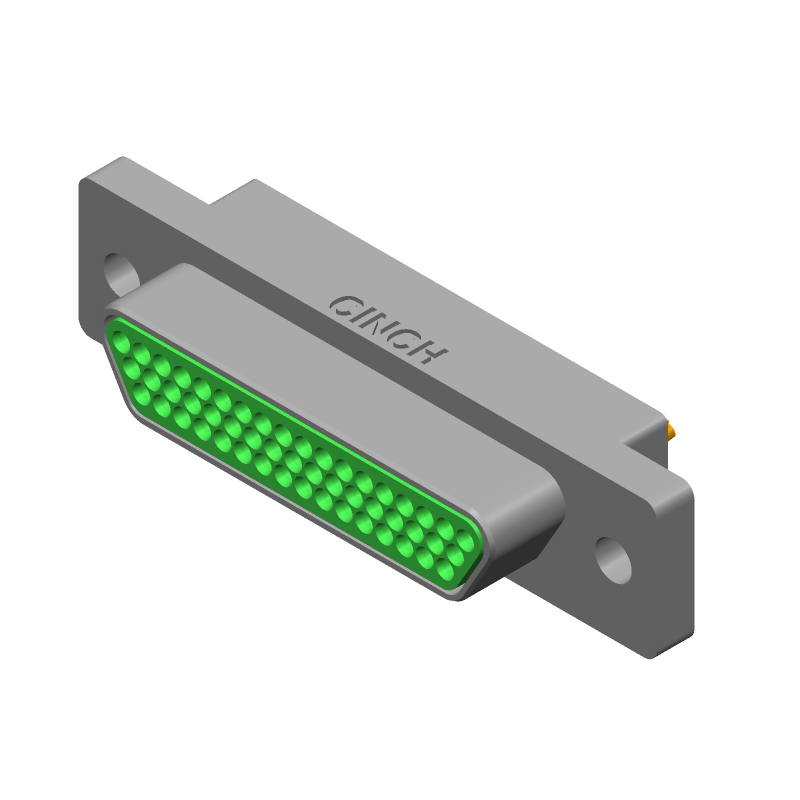

M83513/01-GN Cinch Connectivity Solutions D Microminiature Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Plug,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CINCH CONNECTIVITY SOLUTIONS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Cinch Connectivity Solutions
Additional Feature STANDARD: MIL-DTL-83513
Body Breadth 0.384 inch
Body Depth 0.223 inch
Body Length 1.425 inch
Body/Shell Style PLUG
Connector Type D MICROMINIATURE CONNECTOR
Contact Arrangement S51P0
Contact Finish Mating GOLD (50)
Contact Finish Termination Gold (Au)
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern STAGGERED
Contact Resistance 8 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 600VAC V
Durability 500 Cycles
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 2.78 N
Insulation Resistance 5000000000 Ω
Insulator Material GLASS FILLED POLYETHYLENE
JESD-609 Code e4
MIL Conformance YES
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.043 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 HOLE .096
Mounting Type CABLE
Number Of Connectors ONE
Number of Rows Loaded 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness 50u inch
Rated Current (Signal) 3 A
Reference Standard MIL
Shell Finish NICKEL
Shell Material METAL
Shell Size G
Terminal Length 0.2 inch
Termination Type SOLDER
Total Number of Contacts 51
Wire Size-Max 24 AWG
Wire Size-Min 26 AWG
Withdrawl Force-Min 0.139 N
