D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Socket,

Part Details for M83513/02-BN by Cinch Connectivity Solutions

Results Overview of M83513/02-BN by Cinch Connectivity Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M83513/02-BN Information

M83513/02-BN by Cinch Connectivity Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M83513/02-BN

Part # Distributor Description Stock Price Buy
DISTI # 53AJ5945
Newark Micro-D Sub Conn, Rcpt, 15Pos, Solder, D Sub Connector Type:Micro D, Gender:Receptacle, Product Range:Mil-Dtl-83513 Series, No. Of Contacts:15Contacts, D Sub Shell Size:-, Contact Termination Type:Solder Cup Rohs Compliant: Yes |Cinch Connectivity Solutions M83513/02-BN RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 50 $65.2900
  • 100 $61.3400
$61.3400 / $65.2900 Buy Now
DISTI # 3937-M83513/02-BN-116-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Retail Package MARKETPLACE PRODUCT 378
In Stock
  • 1 $119.9100
  • 100 $99.9455
  • 250 $95.9454
  • 500 $91.9455
$91.9455 / $119.9100 Buy Now
DISTI # 2899-M83513/02-BN-116-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Bag MARKETPLACE PRODUCT 250
In Stock
  • 1 $73.2500
  • 10 $65.9320
  • 25 $59.9432
  • 50 $54.9406
  • 100 $49.1985
$49.1985 / $73.2500 Buy Now
DISTI # 116-M83513/02-BN-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Bag Temporarily Out of Stock
  • 1 $70.2400
  • 10 $59.7000
  • 25 $55.9652
  • 50 $53.2964
  • 100 $50.7556
$50.7556 / $70.2400 Buy Now
DISTI # 538-M83513/02-BN
Mouser Electronics D-Sub MIL Spec Connectors MIL-DTL-83513 Sckt 15P Nkl F Sldr Cup RoHS: Compliant 1
  • 1 $70.2400
  • 10 $66.3800
  • 25 $52.8000
  • 50 $49.6400
  • 100 $49.4600
$49.4600 / $70.2400 Buy Now
Onlinecomponents.com   RoHS: Compliant 25 In Stock
  • 1 $68.2200
  • 5 $60.8800
  • 10 $59.0600
  • 25 $56.5300
  • 50 $54.2100
  • 100 $43.9700
  • 250 $41.6600
$41.6600 / $68.2200 Buy Now
Quest Components 15 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR, SOLDER, RECEPTACLE 3
  • 1 $54.0000
$54.0000 Buy Now
DISTI # CIMM83513/02-BN
Interstate Connecting Components MICRO-D RECEPT 15POS SOCKET 0
  • 1 $61.0509
  • 5 $58.5419
  • 10 $55.5008
  • 25 $54.0957
  • 50 $53.4195
$53.4195 / $61.0509 Buy Now
Master Electronics   RoHS: Compliant 25 In Stock
  • 1 $68.2200
  • 5 $60.8800
  • 10 $59.0600
  • 25 $56.5300
  • 50 $54.2100
  • 100 $43.9700
  • 250 $41.6600
$41.6600 / $68.2200 Buy Now

Part Details for M83513/02-BN

M83513/02-BN Part Data Attributes

Parametric Data
M83513/02-BN Cinch Connectivity Solutions
Buy Now Datasheet
Compare Parts:

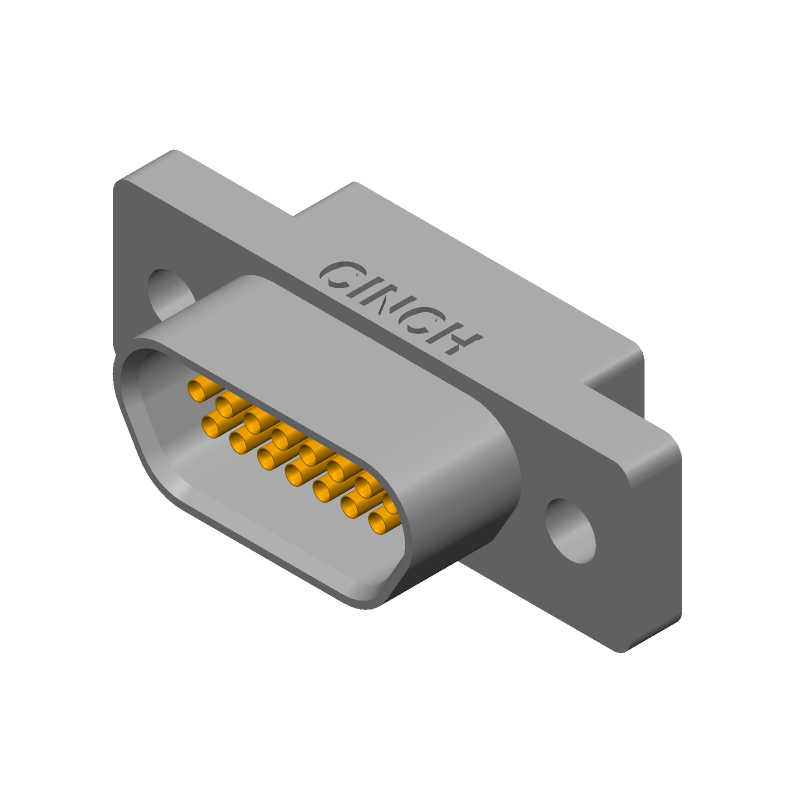

M83513/02-BN Cinch Connectivity Solutions D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Socket,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CINCH CONNECTIVITY SOLUTIONS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Cinch Connectivity Solutions
Additional Feature STANDARD: MIL-DTL-83513
Body Breadth 0.298 inch
Body Depth 0.224 inch
Body Length 0.925 inch
Body/Shell Style RECEPTACLE
Connector Type D MICROMINIATURE CONNECTOR
Contact Arrangement S15P0
Contact Finish Mating GOLD (50)
Contact Finish Termination Gold (Au)
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern STAGGERED
Contact Resistance 8 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 600VAC V
Durability 500 Cycles
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 2.78 N
Insulation Resistance 5000000000 Ω
Insulator Material GLASS FILLED POLYETHYLENE
JESD-609 Code e4
MIL Conformance YES
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.043 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 HOLE 0.096
Mounting Type CABLE AND PANEL
Number Of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness 50u inch
Rated Current (Signal) 3 A
Reference Standard MIL
Shell Finish NICKEL
Shell Material METAL
Shell Size B
Terminal Length 0.11 inch
Termination Type SOLDER
Total Number of Contacts 15
Wire Size-Max 24 AWG
Wire Size-Min 26 AWG
Withdrawl Force-Min 0.139 N

Alternate Parts for M83513/02-BN

This table gives cross-reference parts and alternative options found for M83513/02-BN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M83513/02-BN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M83513/02-BC Glenair Inc $108.3341 D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle, M83513/02-BN vs M83513/02-BC
M83513/02-BN TE Connectivity $32.0714 15 CONTACT(S), FEMALE, D MICROMINIATURE CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT M83513/02-BN vs M83513/02-BN
M83513/02-BC Cinch Connectivity Solutions $52.9439 D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle, M83513/02-BN vs M83513/02-BC
M83513/02-BC ITT Interconnect Solutions $71.7776 D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle, M83513/02-BN vs M83513/02-BC
M83513/02-BC Min-E-Con LLC Check for Price D Microminiature Connector, M83513/02-BN vs M83513/02-BC
M83513/02-BP Amphenol Corporation Check for Price D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle, M83513/02-BN vs M83513/02-BP
M83513/02-BP AirBorn Inc Check for Price D Type Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Lug Terminal, Locking, Receptacle M83513/02-BN vs M83513/02-BP
M83513/02-BN Amphenol Corporation Check for Price D Type Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Lug Terminal, Hole .087-.098, Receptacle M83513/02-BN vs M83513/02-BN
M83513/02BN Bel Fuse Check for Price D Type Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Lug Terminal, Hole .087-.098, Receptacle M83513/02-BN vs M83513/02BN
M83513/02-BC Omnetics Connector Corporation Check for Price D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle M83513/02-BN vs M83513/02-BC

M83513/02-BN Related Parts

M83513/02-BN Frequently Asked Questions (FAQ)

  • The operating temperature range of M83513/02-BN is -55°C to 125°C.
