M83513/02-BC by:

D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle,

Part Details for M83513/02-BC by Cinch Connectivity Solutions

Results Overview of M83513/02-BC by Cinch Connectivity Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M83513/02-BC Information

M83513/02-BC by Cinch Connectivity Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M83513/02-BC

Part # Distributor Description Stock Price Buy
DISTI # 53AJ5944
Newark Micro D Conn, Rcpt, 15Pos, Solder Cup, D Sub Connector Type:Micro D, Gender:Receptacle, Product Range:Mil-Dtl-83513 Series, No. Of Contacts:15Contacts, D Sub Shell Size:-, Contact Termination Type:Solder Cup Rohs Compliant: No |Cinch Connectivity Solutions M83513/02-BC RoHS: Not Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 50 $63.9700
  • 100 $60.1000
$60.1000 / $63.9700 Buy Now
DISTI # 2899-M83513/02-BC-116-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Bag MARKETPLACE PRODUCT 159
In Stock
  • 1 $76.7600
  • 10 $69.0780
  • 25 $62.7996
  • 50 $57.5650
  • 100 $51.5620
$51.5620 / $76.7600 Buy Now
DISTI # 3937-M83513/02-BC-116-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Retail Package MARKETPLACE PRODUCT 100
In Stock
  • 1 $234.9800
$234.9800 Buy Now
DISTI # 116-M83513/02-BC-ND
DigiKey CONN MICRO-D RCPT 15POS PNL MNT Min Qty: 1 Lead time: 21 Weeks Container: Bag 23
In Stock
  • 1 $68.9400
  • 10 $58.5960
  • 25 $54.9292
  • 50 $52.3100
  • 100 $49.8163
$49.8163 / $68.9400 Buy Now
DISTI # 538-M83513/02-BC
Mouser Electronics D-Sub MIL Spec Connectors MicroD 15 pos rcpt solder cup 13
  • 1 $69.3500
  • 10 $61.0800
  • 25 $58.7300
  • 50 $56.7700
  • 100 $53.6300
$53.6300 / $69.3500 Buy Now
Onlinecomponents.com   RoHS: Compliant 25 In Stock
  • 1 $66.8400
  • 5 $59.6500
  • 10 $57.8700
  • 25 $55.3900
  • 50 $53.1100
  • 100 $43.0800
  • 250 $40.8000
$40.8000 / $66.8400 Buy Now
DISTI # CIMM83513/02-BC
Interstate Connecting Components MICRO-D 15 POS SOCKET 0
  • 1 $59.8167
  • 5 $57.3584
  • 10 $54.3786
  • 25 $53.0020
  • 50 $52.3395
$52.3395 / $59.8167 Buy Now
Master Electronics   RoHS: Compliant 25 In Stock
  • 1 $66.8400
  • 5 $59.6500
  • 10 $57.8700
  • 25 $55.3900
  • 50 $53.1100
  • 100 $43.0800
  • 250 $40.8000
$40.8000 / $66.8400 Buy Now

Part Details for M83513/02-BC

M83513/02-BC Part Data Attributes

Parametric Data
M83513/02-BC Cinch Connectivity Solutions
Buy Now Datasheet
Compare Parts:

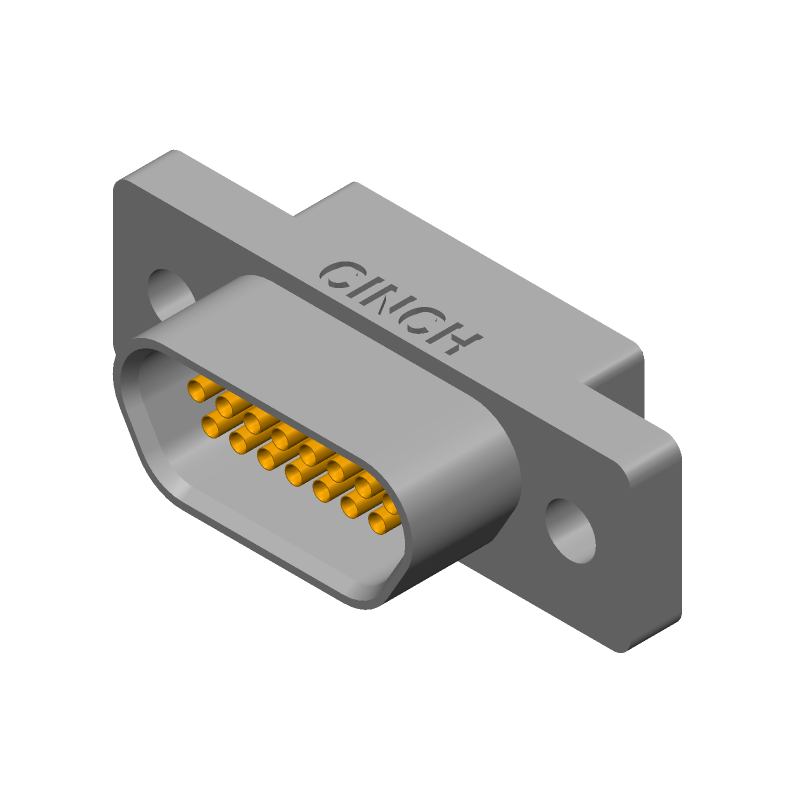

M83513/02-BC Cinch Connectivity Solutions D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle,
Part Life Cycle Code Active
Ihs Manufacturer CINCH CONNECTIVITY SOLUTIONS
Reach Compliance Code compliant
Samacsys Manufacturer Cinch Connectivity Solutions
Additional Feature STANDARD: MIL-DTL-83513
Body Breadth 0.384 inch
Body Depth 0.223 inch
Body Length 0.925 inch
Body/Shell Style RECEPTACLE
Connector Type D MICROMINIATURE CONNECTOR
Contact Arrangement S15P0
Contact Finish Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern STAGGERED
Contact Resistance 8 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 600VAC V
Durability 500 Cycles
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 2.78 N
Insulation Resistance 5000000000 Ω
Insulator Material GLASS FILLED POLYETHYLENE
MIL Conformance YES
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.043 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 HOLE .096
Mounting Type CABLE
Number Of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness 50u inch
Rated Current (Signal) 3 A
Reference Standard MIL
Shell Finish CADMIUM
Shell Material METAL
Shell Size B
Terminal Length 0.11 inch
Termination Type SOLDER
Total Number of Contacts 15
Wire Size-Max 24 AWG
Wire Size-Min 26 AWG
Withdrawl Force-Min 0.139 N
