M80-5T10842M3 Information
M80-5T10842M3 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M80-5T10842M3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AC5390
|
Newark | 4+4 Pos. Male Dil Vertical Throughboard Conn. Jackscrews Rohs Compliant: Yes |Harwin M80-5T10842M3 RoHS: Compliant Min Qty: 28 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$12.3600 / $20.8900 | Buy Now |
|
DISTI #
M80-5T10842M3-ND
|
DigiKey | DATAMATE J-TEK DIL MALE VERTICAL Min Qty: 504 Lead time: 14 Weeks Container: Tube | Temporarily Out of Stock |
|
$11.7906 | Buy Now |
|
DISTI #
855-M80-5T10842M3
|
Mouser Electronics | Power to the Board 4+4 Pos. Male DIL Vertical Throughboard Conn. Jackscrews RoHS: Compliant | 0 |
|
$11.7900 | Order Now |
|
|
NexGen Digital | 1 |
|
RFQ | ||
|
|
Powell Electronics | Datamate J-Tek DIL Male Vertical 3mm Thr Min Qty: 1 | 10 |
|
$15.4100 | Buy Now |
|
DISTI #
M80-5T10842M3
|
Avnet Abacus | Datamate JTek Male DIL Vertical PCB Connector double row 3mm PC tail 8contacts 44 (Alt: M80-5T10842M3) RoHS: Compliant Min Qty: 504 Package Multiple: 504 Lead time: 12 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for M80-5T10842M3

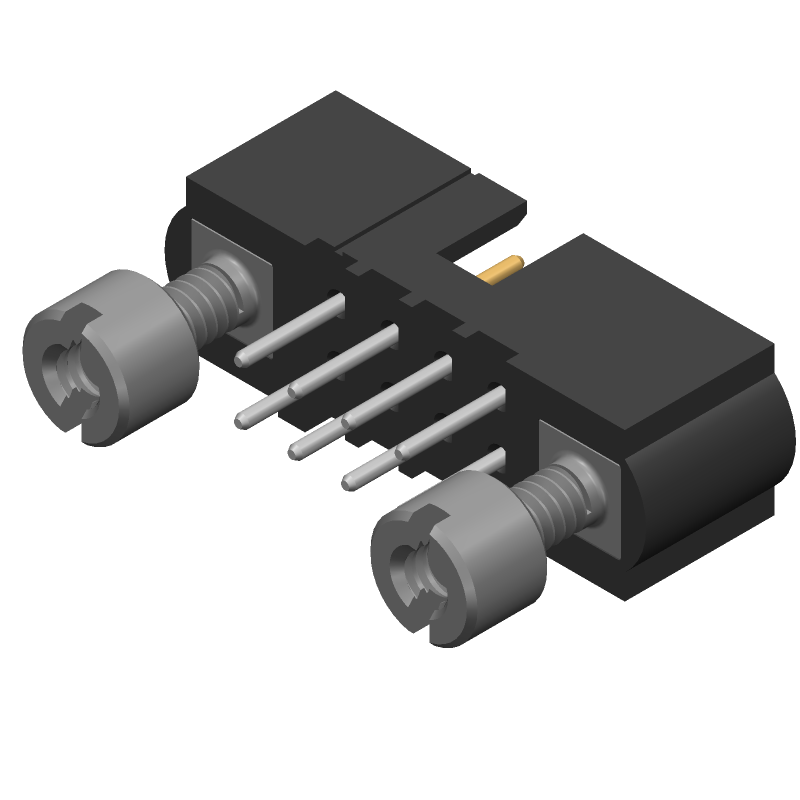

M80-5T10842M3 CAD Models
M80-5T10842M3 Part Data Attributes
|
|
M80-5T10842M3
Harwin
Buy Now
Datasheet
|
Compare Parts:
M80-5T10842M3
Harwin
Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Harwin | |
| Board Mounting Option | HOLE .086-.098 | |
| Body Breadth | 0.238 inch | |
| Body Depth | 0.22 inch | |
| Body Length | 0.709 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 25 mΩ | |
| Contact Style | RND PIN-SKT | |
| Durability | 500 Cycles | |
| Filter Feature | NO | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYPHENYLENE SULFIDE | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.079 inch | |
| Mating Contact Row Spacing | 0.079 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | M2X0.4 | |
| Mounting Option 2 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 30u inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.129 inch | |
| Terminal Pitch | 2.0066 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 8 |
