Part Details for M80-5S25042M3 by Harwin
Results Overview of M80-5S25042M3 by Harwin
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
M80-5S25042M3 Information

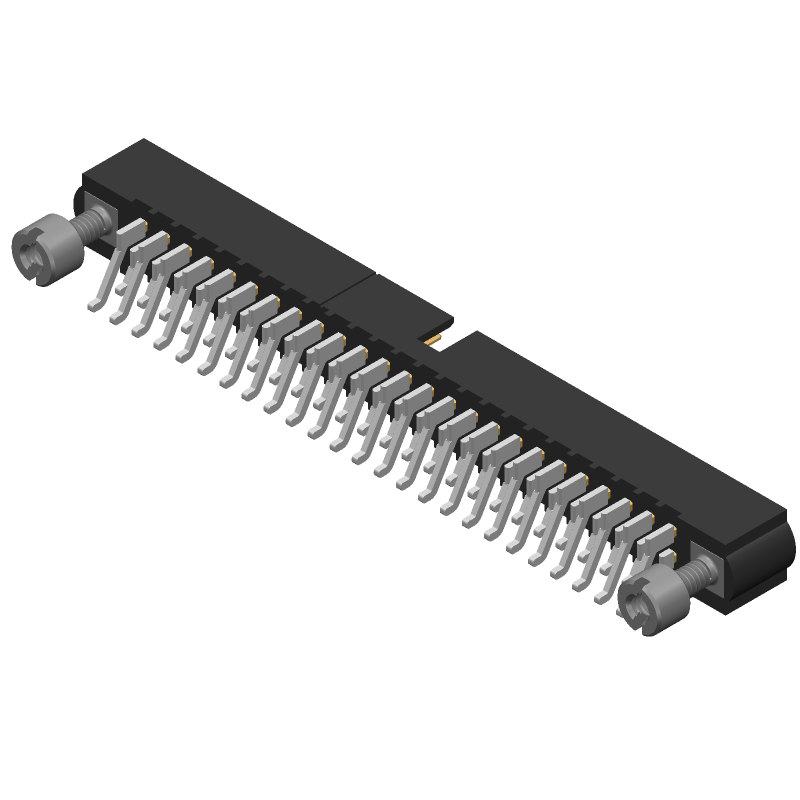

M80-5S25042M3 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M80-5S25042M3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
952-M80-5S25042M3-ND
|
DigiKey | DATAMATE J-TEK DIL MALE HORIZONT Min Qty: 100 Lead time: 9 Weeks Container: Tube | Temporarily Out of Stock |
|
$20.0935 | Buy Now |
|
DISTI #
855-M80-5S25042M3
|
Mouser Electronics | Headers & Wire Housings MIX-TEK RoHS: Compliant | 104 |
|
$24.4200 / $27.3600 | Buy Now |
|
DISTI #
M80-5S25042M3
|
TTI | Headers & Wire Housings MIX-TEK Min Qty: 100 Package Multiple: 4 Container: Each | Americas - 0 |
|
$23.9400 / $24.9100 | Buy Now |
Part Details for M80-5S25042M3
M80-5S25042M3 CAD Models
M80-5S25042M3 Part Data Attributes
|
|
M80-5S25042M3
Harwin
Buy Now
Datasheet
|
Compare Parts:
M80-5S25042M3
Harwin
Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2x0.4, Black Insulator
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Harwin | |
| Body Breadth | 0.238 inch | |
| Body Depth | 0.398 inch | |
| Body Length | 2.362 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | BRASS | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 25 mΩ | |
| Contact Style | RND PIN-SKT | |
| Durability | 500 Cycles | |
| Filter Feature | NO | |
| Insertion Force-Max | 2.0016 N | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYPHENYLENE SULFIDE | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.079 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | M2X0.4 | |
| Mounting Option 2 | JACKSCREW | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 29u inch | |
| Reference Standard | UL | |
| Terminal Pitch | 2.0066 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 50 |
Alternate Parts for M80-5S25042M3
This table gives cross-reference parts and alternative options found for M80-5S25042M3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M80-5S25042M3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M80-5S25022M3-00-000-00-000 | Harwin | Check for Price | Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle | M80-5S25042M3 vs M80-5S25022M3-00-000-00-000 |
| M80-5S25022M3 | Harwin | Check for Price | Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2x0.4, Black Insulator | M80-5S25042M3 vs M80-5S25022M3 |
| M80-5S25005M3 | Harwin | Check for Price | Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2x0.4, Black Insulator | M80-5S25042M3 vs M80-5S25005M3 |
