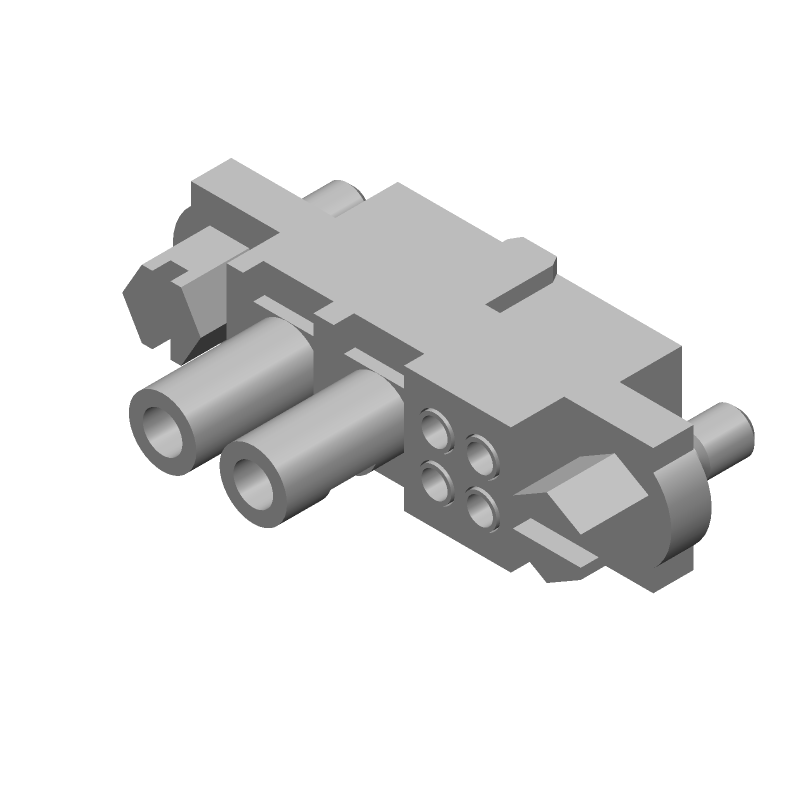

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M80-4D10405F1-00-000-02-327 by Harwin
Results Overview of M80-4D10405F1-00-000-02-327 by Harwin
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
M80-4D10405F1-00-000-02-327 Information
M80-4D10405F1-00-000-02-327 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M80-4D10405F1-00-000-02-327
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
M80-4D10405F1-00-000-02-327-ND
|
DigiKey | DATAMATE 2-ROW MIX-TEK FEMALE CR Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
Buy Now |
Part Details for M80-4D10405F1-00-000-02-327
M80-4D10405F1-00-000-02-327 CAD Models
M80-4D10405F1-00-000-02-327 Part Data Attributes
|
|
M80-4D10405F1-00-000-02-327
Harwin
Buy Now
Datasheet
|
Compare Parts:
M80-4D10405F1-00-000-02-327
Harwin
Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, M2, Black Insulator, Plug
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Harwin | |
| Body Breadth | 0.219 inch | |
| Body Depth | 0.297 inch | |
| Body Length | 0.866 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD CONNECTOR | |
| Contact Arrangement | S4P2 | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | GOLD | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Resistance | 25 mΩ | |
| Contact Style | HYBRID | |
| DIN Conformance | NO | |
| Durability | 500 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 2.78 N | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYPHENYLENE SULFIDE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mixed Contacts | YES | |
| Mounting Option 1 | M2 | |
| Mounting Option 2 | JACKSCREW | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | 12u inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 6 | |
| UL Flammability Code | 94V-0 |
