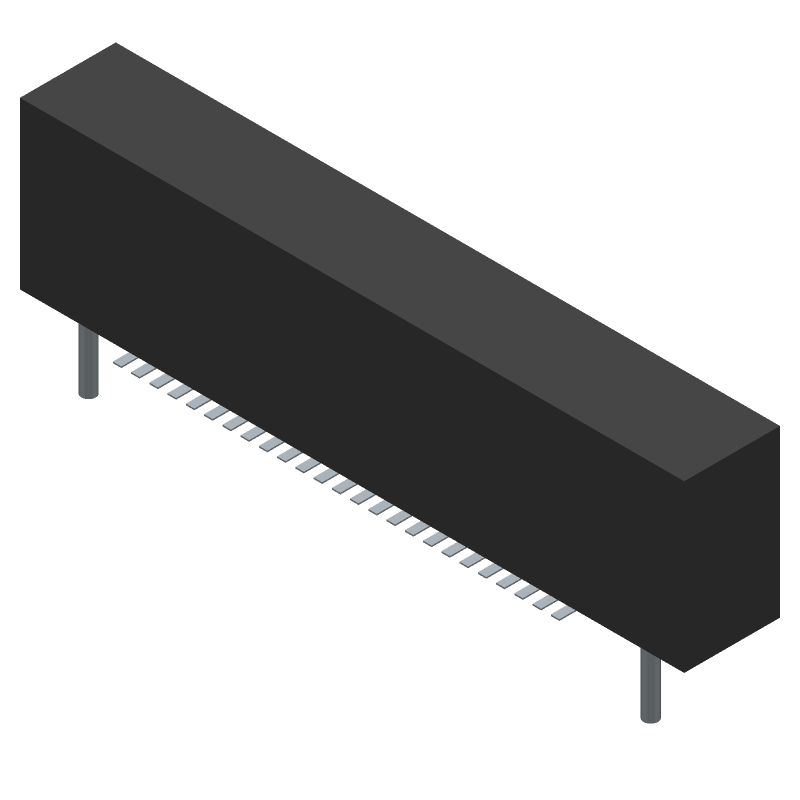

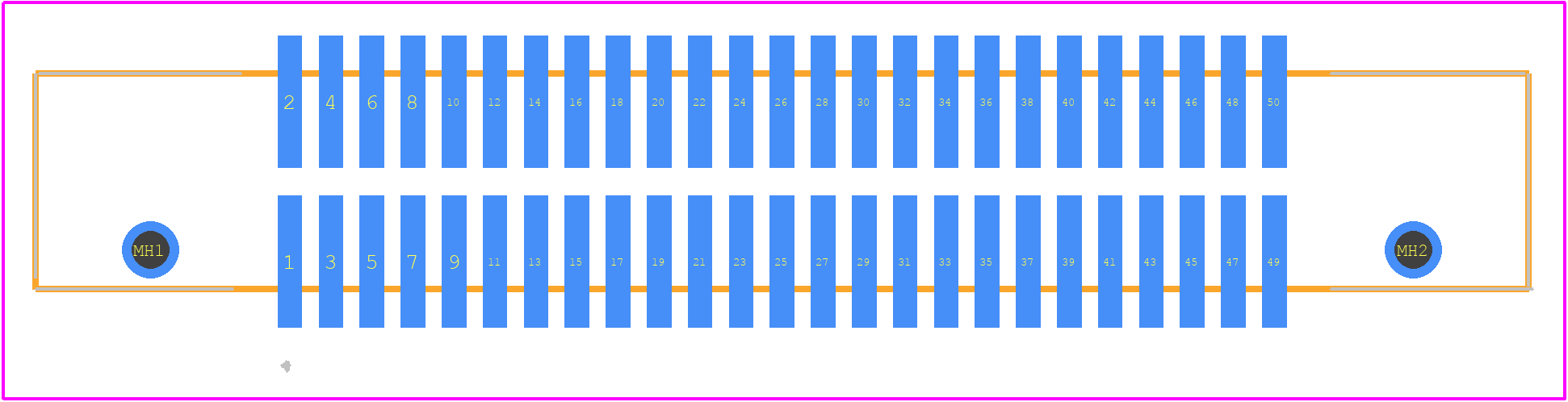

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M50-3652542R by Harwin
Results Overview of M50-3652542R by Harwin
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
M50-3652542R Information
M50-3652542R by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M50-3652542R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69W6630
|
Newark | Wire-To-Board Connector, Ejector, M50 Series, Surface Mount, Header, 50, 1.27 Mm Rohs Compliant: Yes |Harwin M50-3652542R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 271 |
|
$3.3800 / $5.1000 | Buy Now |
|
DISTI #
952-2652-1-ND
|
DigiKey | CONN HEADER SMD 50POS 1.27MM Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
2761 In Stock |
|
$2.9017 / $5.0400 | Buy Now |
|
DISTI #
855-M50-3652542R
|
Mouser Electronics | Headers & Wire Housings 25+25 IDC VERT SMT LATCH HEADER, MALE RoHS: Compliant | 767 |
|
$2.9000 / $4.8700 | Buy Now |
|
|
Onlinecomponents.com | Conn Ejector Header M 50 POS 1.27mm Solder ST Top Entry SMD T/R RoHS: Compliant |
49 Partner Stock |
|
$2.1000 / $3.7840 | Buy Now |
|
DISTI #
M50-3652542R
|
Avnet Abacus | Pin Header Ejector WiretoBoard 127 mm 2 Rows 50 Contacts Surface Mount Archer M50 Series - Tape and Reel (Alt: M50-3652542R) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 1250 |
|
Buy Now | |
|
|
New Advantage Corporation | 1.27 IDC SM Header 50 position RoHS: Compliant Min Qty: 1 Package Multiple: 250 | 250 |
|
$2.9200 | Buy Now |
Part Details for M50-3652542R
M50-3652542R CAD Models
M50-3652542R Part Data Attributes
|
|
M50-3652542R
Harwin
Buy Now
Datasheet
|
Compare Parts:
M50-3652542R
Harwin
DIP Connector, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Harwin | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | BRASS | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 50 | |
| UL Flammability Code | 94V-0 |
