Microcontrollers and Processors / Timers or RTCs / M41T83SMY6F
Datasheets
M41T83SMY6F by:

Serial I²C bus real-time clock (RTC) with battery switchover

Part Details for M41T83SMY6F by STMicroelectronics

Results Overview of M41T83SMY6F by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

M41T83SMY6F Information

M41T83SMY6F by STMicroelectronics is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for M41T83SMY6F

Part # Distributor Description Stock Price Buy
DISTI # 45AC7413
Newark Alarm Rtc, 32B, I2C, 5.5V, Soic-18, Date Format:Day, Date, Month, Year, Century, Clock Format:Hh:Mm:Ss:Hh, Clock Ic Type:Alarm Rtc, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Clock Ic Case Style:Soic, No. Of Pins:18Pins, Msl:- Rohs Compliant: Yes |Stmicroelectronics M41T83SMY6F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # 497-6886-1-ND
DigiKey IC RTC CLK/CALENDAR I2C 18SOX Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1225
In Stock
  • 1 $4.7400
  • 10 $3.6080
  • 25 $3.3240
  • 100 $3.0118
  • 250 $2.8630
  • 500 $2.7732
  • 1,000 $2.6993
  • 2,000 $2.6385
  • 3,000 $2.6081
$2.6081 / $4.7400 Buy Now
DISTI # M41T83SMY6F
Avnet Americas RTC IC, YY-MM-DD-dd, HH:MM:SS:ts/hs, 24Hr, I2C, 3 V to 5.5 V, 18 Pins, SOIC - Tape and Reel (Alt: M41T83SMY6F) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks, 0 Days Container: Reel 1000
  • 1,000 $2.4446
  • 2,000 $2.4292
  • 4,000 $2.3842
  • 6,000 $2.3409
  • 8,000 $2.2990
$2.2990 / $2.4446 Buy Now
DISTI # 511-M41T83SMY6F
Mouser Electronics Real Time Clock Serial I2C bus RTC RoHS: Compliant 2550
  • 1 $6.3900
  • 10 $4.6400
  • 25 $4.3200
  • 100 $3.8000
  • 250 $3.6000
  • 500 $3.2300
  • 1,000 $2.7300
  • 2,000 $2.5900
$2.5900 / $6.3900 Buy Now
DISTI # V36:1790_06555764
Arrow Electronics Real Time Clock Serial 32byte Clock/Calendar/Alarm/Timer/Interrupt 18-Pin SOX T/R Min Qty: 1000 Package Multiple: 1000 Lead time: 24 Weeks Date Code: 2402 Americas - 61000
  • 1,000 $2.5120
  • 2,000 $2.4340
  • 3,000 $2.4050
$2.4050 / $2.5120 Buy Now
STMicroelectronics Serial I&#178, C bus real-time clock (RTC) with battery switchover RoHS: Compliant Min Qty: 1 2550
  • 1 $6.2600
  • 10 $4.5500
  • 25 $4.2300
  • 100 $3.7200
  • 250 $3.5300
  • 500 $3.1700
$3.1700 / $6.2600 Buy Now
DISTI # 77773472
Verical Real Time Clock Serial 32byte Clock/Calendar/Alarm/Timer/Interrupt 18-Pin SOX T/R Min Qty: 1000 Package Multiple: 1000 Date Code: 2402 Americas - 61000
  • 1,000 $2.5120
  • 2,000 $2.4340
  • 3,000 $2.4050
$2.4050 / $2.5120 Buy Now
DISTI # M41T83SMY6F
IBS Electronics SERIAL I&#xB2, C BUS REAL-TIME CLOCK (RTC) WITH BATTERY SWITCHOVER Min Qty: 1000 Package Multiple: 1 36000
  • 1,000 $2.6520
$2.6520 Buy Now
DISTI # M41T83SMY6F
Avnet Silica RTC IC YYMMDDdd HHMMSStshs 24Hr I2C 3 V to 55 V 18 Pins SOIC (Alt: M41T83SMY6F) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Silica - 16000
Buy Now
Chip Stock   440
RFQ
DISTI # M41T83SMY6F
EBV Elektronik RTC IC YYMMDDdd HHMMSStshs 24Hr I2C 3 V to 55 V 18 Pins SOIC (Alt: M41T83SMY6F) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days EBV - 0
Buy Now
LCSC I2C SOIC-18-300mil Real Time Clocks ROHS 60
  • 1 $8.6720
  • 10 $7.4922
  • 30 $6.7726
  • 100 $6.1691
$6.1691 / $8.6720 Buy Now
Vyrian Peripheral ICs 33088
RFQ
Win Source Electronics Real Time Clock Serial 32byte Clock/Calendar/Alarm/Timer/Interrupt 18-Pin SOX T/R / IC RTC CLK/CALENDAR I2C 18-SOX 2200
  • 12 $4.8793
  • 29 $4.0036
  • 45 $3.8785
  • 62 $3.7534
  • 80 $3.6282
  • 107 $3.2529
$3.2529 / $4.8793 Buy Now

Part Details for M41T83SMY6F

M41T83SMY6F CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

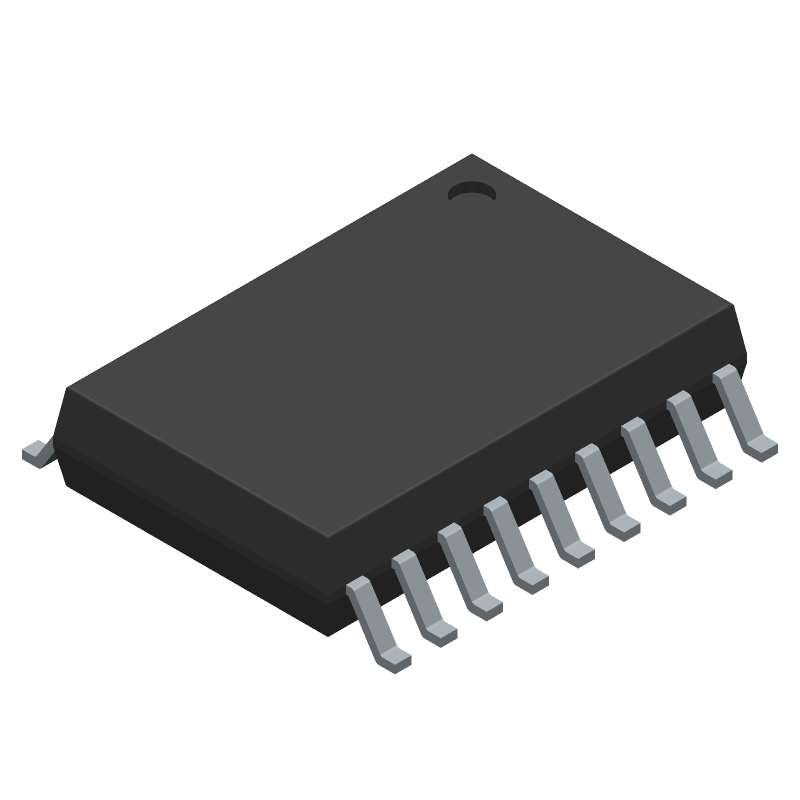

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M41T83SMY6F Part Data Attributes

Parametric Data
M41T83SMY6F STMicroelectronics
Buy Now Datasheet
Compare Parts:
M41T83SMY6F STMicroelectronics Serial I²C bus real-time clock (RTC) with battery switchover
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Pin Count 18
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 24 Weeks
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max 0.032 MHz
External Data Bus Width
Information Access Method SERIAL(I2C), SERIAL, 2-WIRE
Interrupt Capability Y
JESD-30 Code R-PDSO-G18
Length 11.61 mm
Moisture Sensitivity Level 1
Number of Bits 8
Number of Terminals 18
Number of Timers
On Chip Data RAM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
RAM (words) 7
Seated Height-Max 2.69 mm
Supply Current-Max 0.15 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn) - immersion
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time-Min 1/100 SECOND
Time@Peak Reflow Temperature-Max (s) 30
Volatile NO
Width 7.62 mm
uPs/uCs/Peripheral ICs Type TIMER, REAL TIME CLOCK

Alternate Parts for M41T83SMY6F

This table gives cross-reference parts and alternative options found for M41T83SMY6F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M41T83SMY6F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M41T83SQA6F STMicroelectronics Check for Price Serial I²C bus real-time clock (RTC) with battery switchover M41T83SMY6F vs M41T83SQA6F

M41T83SMY6F Related Parts

M41T83SMY6F Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the M41T83SMY6F is 2.5V to 5.5V.

  • To ensure the oscillator starts correctly on power-up, a 1 kΩ to 10 kΩ resistor should be connected between the OSCIN pin and the crystal, and a 1 MΩ to 10 MΩ resistor should be connected between the OSCOUT pin and ground.

  • The maximum frequency deviation of the M41T83SMY6F is ±20 ppm over the entire operating temperature range.

  • The M41T83SMY6F can be reset by applying a low signal to the RST pin for at least 1 ms.

  • The VBAT pin is used to connect a battery or a supercapacitor to maintain the RTC's operation during power failures.
