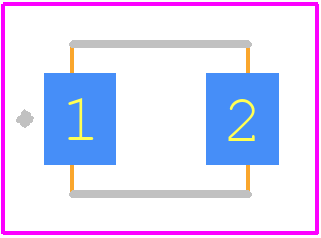

Footprint
-

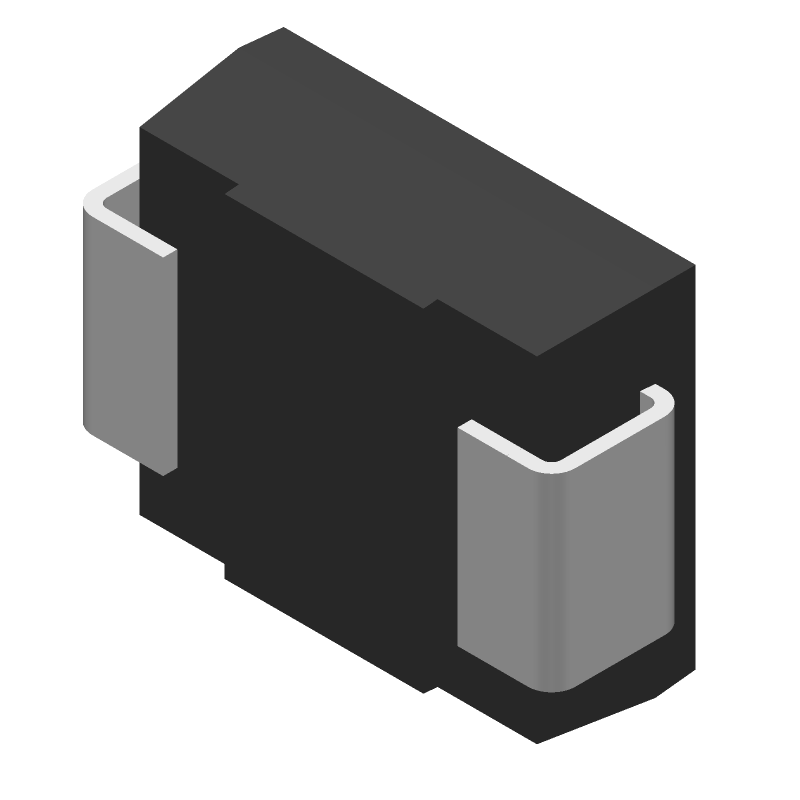

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M3F60-5063 by Shindengen Electronic Manufacturing Co Ltd
Results Overview of M3F60-5063 by Shindengen Electronic Manufacturing Co Ltd
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
M3F60-5063 Information
M3F60-5063 by Shindengen Electronic Manufacturing Co Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for M3F60-5063
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
627-M3F60-5063
|
Mouser Electronics | Rectifiers 3.0 Amp 600 Volt RoHS: Compliant | 296 |
|
$0.4000 / $1.1700 | Buy Now |
|
DISTI #
87171755
|
Verical | M3F60-5063 Min Qty: 103 Package Multiple: 1 | Americas - 4821 |
|
$0.4270 / $0.6110 | Buy Now |
|
DISTI #
82117783
|
Verical | M3F60-5063 Min Qty: 152 Package Multiple: 1 | Americas - 4280 |
|
$0.4666 / $0.5372 | Buy Now |
|
DISTI #
87333382
|
Verical | M3F60-5063 Min Qty: 414 Package Multiple: 1 | Americas - 965 |
|
$0.1526 / $0.1694 | Buy Now |
|
|
Bristol Electronics | 4000 |
|
RFQ | ||
|
|
Quest Components | RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 2.3A, 600V V(RRM), SILICON | 62962 |
|
$0.2940 / $0.8400 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 2.3A, 600V V(RRM), SILICON | 3857 |
|
$0.4230 / $1.4100 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 2.3A, 600V V(RRM), SILICON | 3200 |
|
$0.7500 / $2.5000 | Buy Now |
|
DISTI #
M3F60-5063
|
TME | Diode: rectifying, SMD, 600V, 3A, M2F, Ufmax: 1.05V, Ifsm: 90A Min Qty: 1 | 1000 |
|
$0.0920 / $0.3540 | Buy Now |
|
DISTI #
M3F60-5063
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 4821 |
|
$0.4010 / $1.1200 | Buy Now |
Part Details for M3F60-5063
M3F60-5063 CAD Models
M3F60-5063 Part Data Attributes
|
|
M3F60-5063
Shindengen Electronic Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
M3F60-5063
Shindengen Electronic Manufacturing Co Ltd
Rectifier Diode,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SHINDENGEN ELECTRIC MANUFACTURING CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Shindengen Electric Manufacturing Co., Ltd. | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.05 V | |
| JESD-30 Code | R-PDSO-C2 | |
| Non-rep Pk Forward Current-Max | 90 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 2.3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | YES | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
