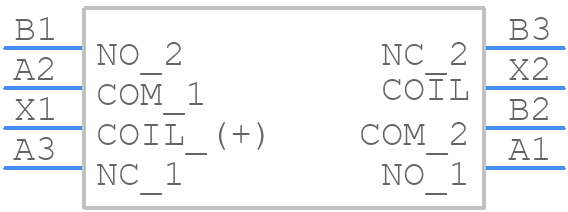

Part Symbol
-
Footprint
-

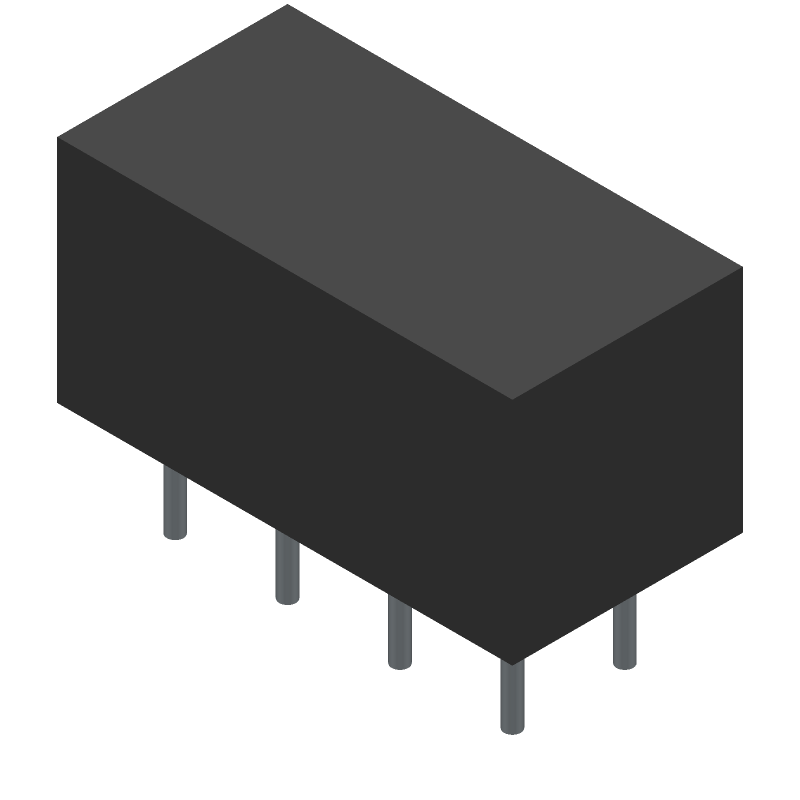

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M39016/44-029M by TE Connectivity
Results Overview of M39016/44-029M by TE Connectivity
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Industrial Automation
Financial Technology (Fintech)
Electronic Manufacturing
Communication and Networking
M39016/44-029M Information
M39016/44-029M by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for M39016/44-029M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
5-1617539-2
|
Avnet Americas | - Bag (Alt: 5-1617539-2) RoHS: Not Compliant Min Qty: 31 Package Multiple: 1 Lead time: 38 Weeks, 2 Days Container: Bag | 0 |
|
$102.7584 / $104.8992 | Buy Now |
|
|
Onlinecomponents.com | HMS1230S04L=M39016/44-029L RoHS: Compliant | 0 |
|
$107.0400 / $138.7000 | Buy Now |
|
DISTI #
5-1617539-2
|
TTI | Low Signal Relays - PCB HMS1230S04M CRYSTAL CAN RELAYS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Each |
Americas - 21 In Stock |
|
$138.7000 | Buy Now |
|
|
Master Electronics | HMS1230S04L=M39016/44-029L RoHS: Compliant | 0 |
|
$107.0400 / $138.7000 | Buy Now |
Part Details for M39016/44-029M
M39016/44-029M CAD Models
M39016/44-029M Part Data Attributes
|
|
M39016/44-029M
TE Connectivity
Buy Now
|
Compare Parts:
M39016/44-029M
TE Connectivity
Power/Signal Relay, 2 Form C, DPDT-CO, 26.5VDC (Coil), 682mW (Coil), 2A (Contact), DC Input, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 38 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Coil Power | 682 mW | |
| Coil Resistance | 1030 Ω | |
| Coil Voltage(DC)-Max | 26.5 V | |
| Coil/Input Supply Type | DC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 2 A | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Relay Action | MOMENTARY | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT-CO | |
| Relay Type | POWER/SIGNAL RELAY | |
| Sealing | HERMETICALLY SEALED | |
| Surface Mount | NO | |
| Termination Type | SOLDER HOOK |
