Microcontrollers and Processors / Microcontrollers / M30873FHBGP#U3
Datasheets
M30873FHBGP#U3 by: Renesas Electronics Corporation

M30873FHBGP#U3

Part Details for M30873FHBGP#U3 by Renesas Electronics Corporation

Results Overview of M30873FHBGP#U3 by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M30873FHBGP#U3 Information

M30873FHBGP#U3 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for M30873FHBGP#U3

Part # Distributor Description Stock Price Buy
DISTI # M30873FHBGP#U3-ND
DigiKey IC MCU 16/32BIT 384KB 100LFQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray 473
In Stock
  • 1 $46.8800
  • 10 $38.4110
  • 24 $36.3800
  • 90 $34.1196
  • 270 $32.7847
$32.7847 / $46.8800 Buy Now
DISTI # M30873FHBGP#U3
Avnet Americas MCU 16-bit M16C CISC 384KB Flash 3.3V/5V 100-Pin LQFP Tray - Trays (Alt: M30873FHBGP#U3) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1 $31.8000
$31.8000 Buy Now
DISTI # 968-M30873FHBGP#U3
Mouser Electronics 16-bit Microcontrollers - MCU MCU 3/5V 384K I temp Pb-free 100-LQFP RoHS: Compliant 0
Order Now
DISTI # M30873FHBGP#U3
Avnet Asia MCU 16-bit M16C CISC 384KB Flash 3.3V/5V 100-Pin LQFP Tray (Alt: M30873FHBGP#U3) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 18 Weeks, 0 Days 0
RFQ
DISTI # M30873FHBGP#U3
Avnet Silica MCU 16bit M16C CISC 384KB Flash 33V5V 100Pin LQFP Tray (Alt: M30873FHBGP#U3) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 20 Weeks, 0 Days Silica - 0
Buy Now

Part Details for M30873FHBGP#U3

M30873FHBGP#U3 CAD Models

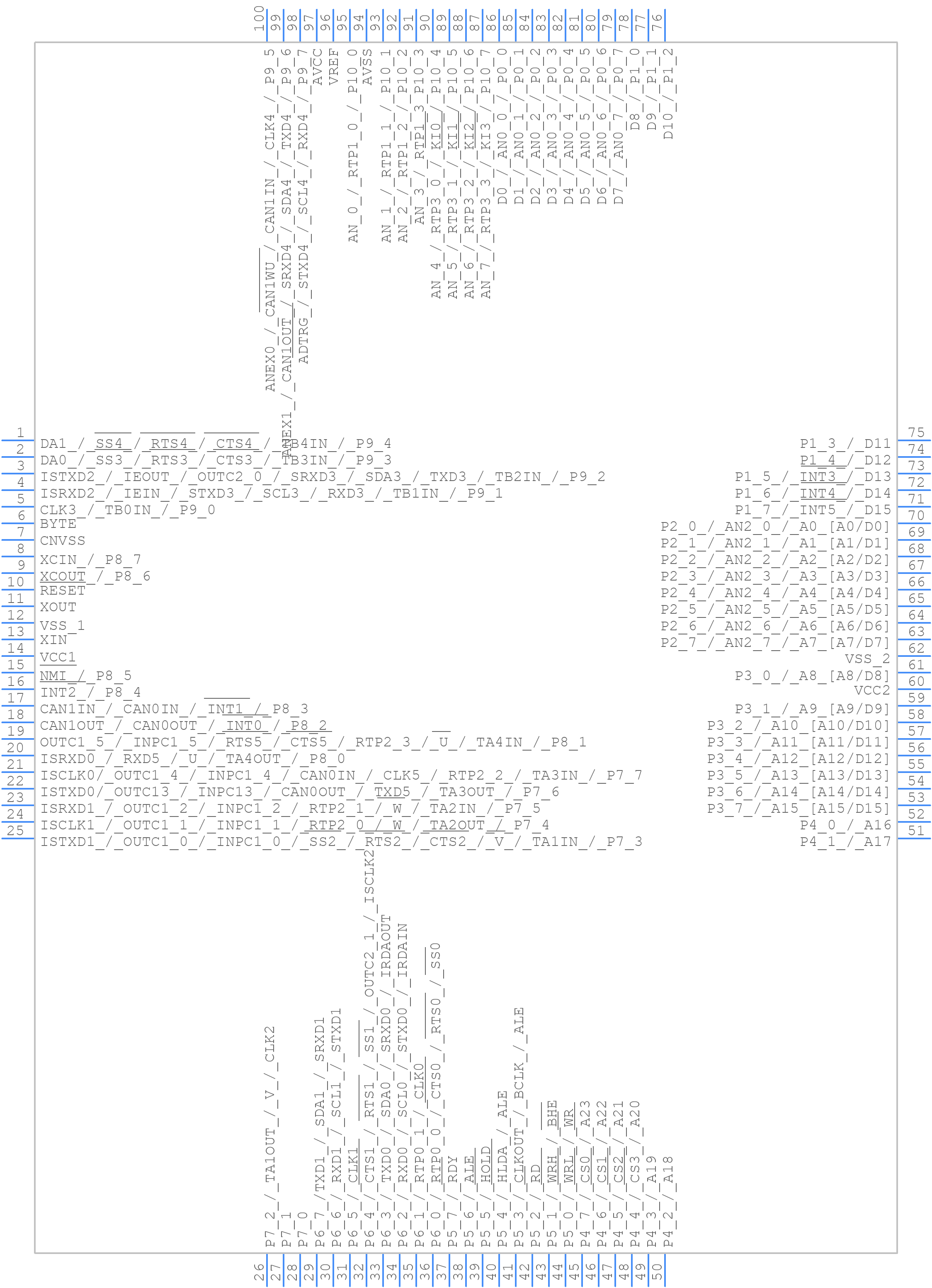

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

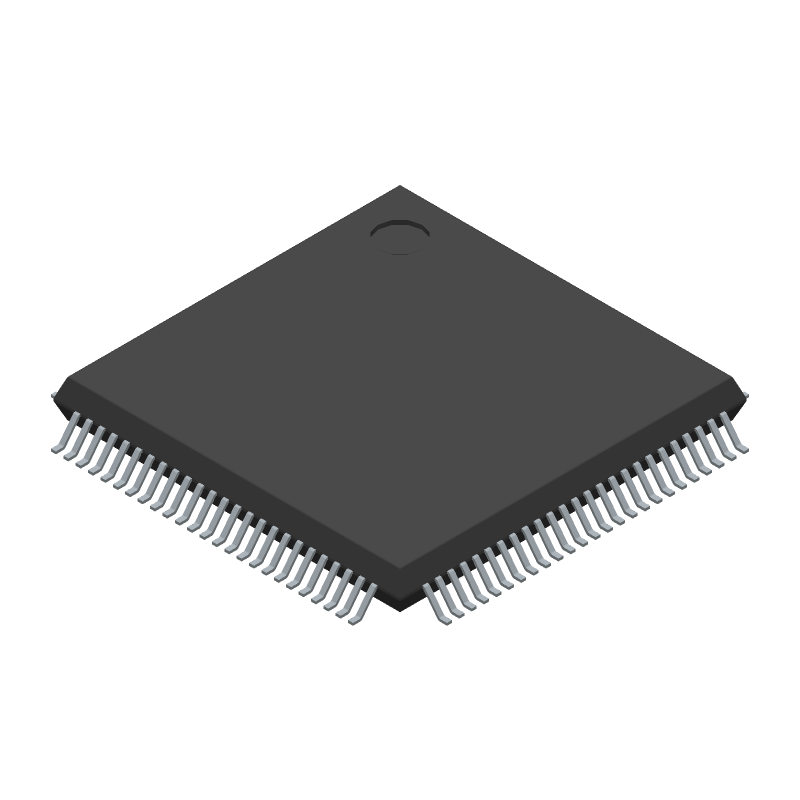

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M30873FHBGP#U3 Part Data Attributes

Parametric Data
M30873FHBGP#U3 Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
M30873FHBGP#U3 Renesas Electronics Corporation M30873FHBGP#U3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code LFQFP
Package Description 14 X 14 MM, 0.50 MM PITCH, PLASTIC, LQFP-100
Pin Count 100
Manufacturer Package Code PLQP0100KB-A100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer Renesas Electronics
Has ADC YES
Additional Feature ALSO OPERATES AT 3V MINIMUM SUPPLY AT 24 MHZ
Address Bus Width 24
Bit Size 32
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width 16
JESD-30 Code S-PQFP-G100
Length 14 mm
Moisture Sensitivity Level 3
Number of I/O Lines 88
Number of Terminals 100
Operating Temperature-Max 85 °C
Operating Temperature-Min -20 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Qualification Status Not Qualified
ROM Programmability FLASH
Seated Height-Max 1.7 mm
Speed 32 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.2 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

Alternate Parts for M30873FHBGP#U3

This table gives cross-reference parts and alternative options found for M30873FHBGP#U3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M30873FHBGP#U3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M3062AFCVFP-B Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-100 M30873FHBGP#U3 vs M3062AFCVFP-B
M3062JFHVFP-B Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-100 M30873FHBGP#U3 vs M3062JFHVFP-B
M30840SGP Renesas Electronics Corporation Check for Price 32-bit Microcomputers (Non Promotion), , / M30873FHBGP#U3 vs M30840SGP
M306N5FCVFP Renesas Electronics Corporation Check for Price 16-bit Microcomputers (Non Promotion), QFP, / M30873FHBGP#U3 vs M306N5FCVFP
M30805FGGP Renesas Electronics Corporation Check for Price 16-bit Microcomputers (Non Promotion), , / M30873FHBGP#U3 vs M30805FGGP
M3062AFCTFP-B Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-100 M30873FHBGP#U3 vs M3062AFCTFP-B
M30626FHPFP-U9 Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, QFP-100 M30873FHBGP#U3 vs M30626FHPFP-U9
M30843FHGP Renesas Electronics Corporation Check for Price 32-bit Microcomputers (Non Promotion), , / M30873FHBGP#U3 vs M30843FHGP
M30626FJPFP Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-100 M30873FHBGP#U3 vs M30626FJPFP
M3062AFCTFP-U7 Renesas Electronics Corporation Check for Price 16-BIT, FLASH, 24MHz, MICROCONTROLLER, PQFP100, 14 X 20 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, QFP-100 M30873FHBGP#U3 vs M3062AFCTFP-U7

M30873FHBGP#U3 Related Parts

M30873FHBGP#U3 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the M30873FHBGP#U3 is -40°C to +85°C.

  • The clock settings for the M30873FHBGP#U3 can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings.

  • The maximum current consumption of the M30873FHBGP#U3 is approximately 350mA at 5V and 20MHz operation.

  • The ADC on the M30873FHBGP#U3 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register settings and conversion procedures.

  • The VCC pin on the M30873FHBGP#U3 is the power supply pin for the internal logic and I/O circuits. It should be connected to a stable 5V power supply.
