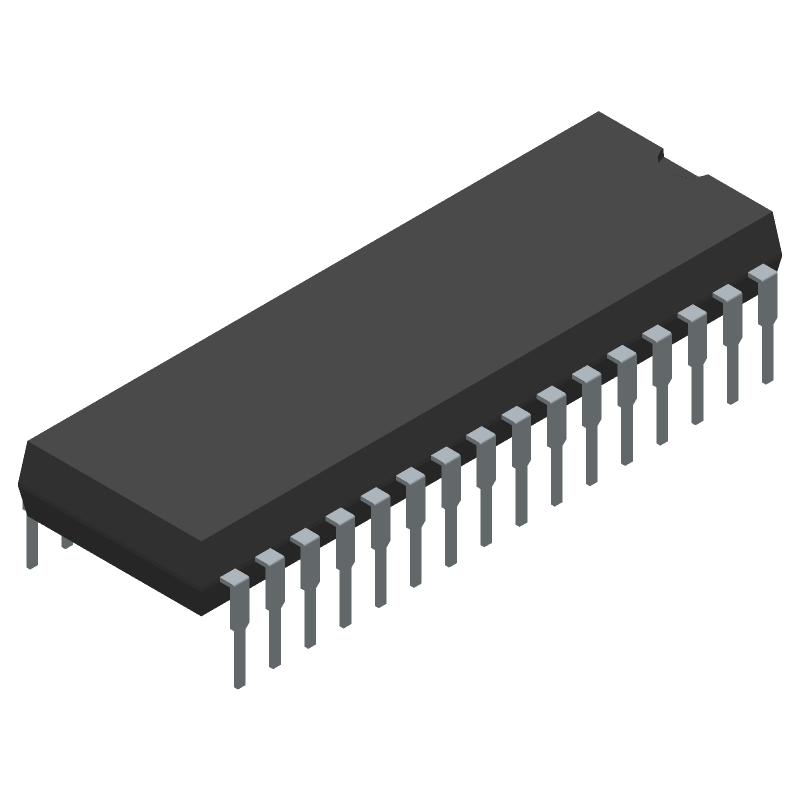

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M27C2001-10F6 by STMicroelectronics
Results Overview of M27C2001-10F6 by STMicroelectronics
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Computing and Data Storage
Financial Technology (Fintech)
Healthcare
Telecommunications
M27C2001-10F6 Information
M27C2001-10F6 by STMicroelectronics is an EPROM.
EPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Part Details for M27C2001-10F6
M27C2001-10F6 CAD Models
M27C2001-10F6 Part Data Attributes
|
|
M27C2001-10F6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M27C2001-10F6
STMicroelectronics
256KX8 UVPROM, 100ns, CDIP32, LEAD FREE, WINDOWED, FRIT SEALED, CERAMIC, DIP-32
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DIP | |
| Package Description | LEAD FREE, WINDOWED, FRIT SEALED, CERAMIC, DIP-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.61 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Access Time-Max | 100 ns | |
| I/O Type | COMMON | |
| JESD-30 Code | R-CDIP-T32 | |
| JESD-609 Code | e3 | |
| Length | 41.885 mm | |
| Memory Density | 2097152 bit | |
| Memory IC Type | UVPROM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Number of Words | 262144 words | |
| Number of Words Code | 256000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256KX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | WDIP | |
| Package Equivalence Code | DIP32,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE, WINDOW | |
| Parallel/Serial | PARALLEL | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.72 mm | |
| Standby Current-Max | 0.0001 A | |
| Supply Current-Max | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 15.24 mm |
Alternate Parts for M27C2001-10F6
This table gives cross-reference parts and alternative options found for M27C2001-10F6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M27C2001-10F6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AM27C020-100DI | AMD | Check for Price | UVPROM, 256KX8, 100ns, CMOS, CDIP32, WINDOWED, CERAMIC, DIP-32 | M27C2001-10F6 vs AM27C020-100DI |
