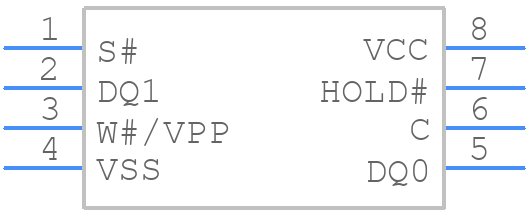

Part Symbol
-
Footprint
-

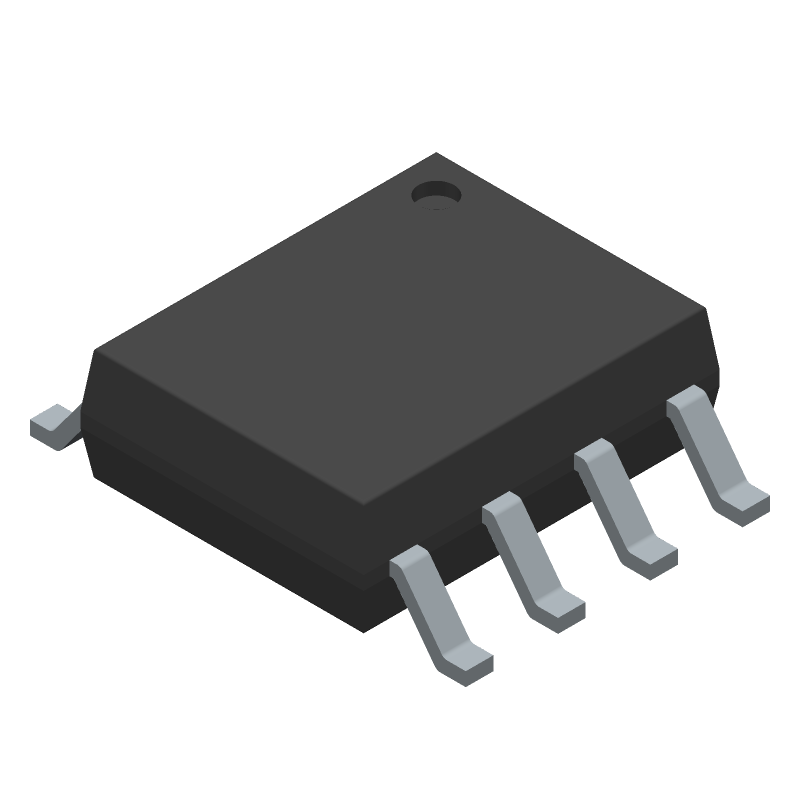

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M25PX16-VMN6P by Micron Technology Inc
Results Overview of M25PX16-VMN6P by Micron Technology Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
M25PX16-VMN6P Information
M25PX16-VMN6P by Micron Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M25PX16-VMN6P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Memory ICs | 480 |
|
RFQ |
Part Details for M25PX16-VMN6P
M25PX16-VMN6P CAD Models
M25PX16-VMN6P Part Data Attributes
|
|
M25PX16-VMN6P
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
M25PX16-VMN6P
Micron Technology Inc
Flash, 2MX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Micron | |
| Clock Frequency-Max (fCLK) | 75 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2097152 words | |
| Number of Words Code | 2000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2MX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.00001 A | |
| Supply Current-Max | 0.015 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Type | NOR TYPE | |
| Width | 3.9 mm | |
| Write Cycle Time-Max (tWC) | 15 ms | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for M25PX16-VMN6P
This table gives cross-reference parts and alternative options found for M25PX16-VMN6P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M25PX16-VMN6P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M25PX16-VMN3TP | Micron Technology Inc | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, | M25PX16-VMN6P vs M25PX16-VMN3TP |
| M25PX16SVMN3P | Numonyx Memory Solutions | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M25PX16-VMN6P vs M25PX16SVMN3P |
| M25PX16STVMN6P | Numonyx Memory Solutions | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M25PX16-VMN6P vs M25PX16STVMN6P |
| M25PX16SVMN3TP | Micron Technology Inc | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, | M25PX16-VMN6P vs M25PX16SVMN3TP |
| M25PX16STVMN6G | Numonyx Memory Solutions | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M25PX16-VMN6P vs M25PX16STVMN6G |
| M25PX16-VMN6TP | Micron Technology Inc | Check for Price | Flash, 2MX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M25PX16-VMN6P vs M25PX16-VMN6TP |
| M25PX16SOVMN6P | Numonyx Memory Solutions | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M25PX16-VMN6P vs M25PX16SOVMN6P |
| M25PX16STVMN6TPBA | Micron Technology Inc | Check for Price | EEPROM, 2MX8, Serial, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOP-8 | M25PX16-VMN6P vs M25PX16STVMN6TPBA |
M25PX16-VMN6P Frequently Asked Questions (FAQ)
-
The M25PX16-VMN6P supports up to 100,000 erase cycles.
-
The M25PX16-VMN6P uses a page write buffer to handle page write operations. The buffer is 256 bytes, and the device can perform a maximum of 256 bytes of data transfer in a single page write operation.
-
The Write Enable Latch (WEL) is used to enable or disable write operations to the device. When WEL is set to 1, write operations are enabled, and when it is set to 0, write operations are disabled.
-
The M25PX16-VMN6P has a built-in power-on reset circuit that initializes the device to a known state after power-on. The device also has a reset pin that can be used to reset the device externally.
-
The maximum operating frequency of the M25PX16-VMN6P is 75 MHz.
