Memory / Flash Memories / M25P20-VMN6TPB
Datasheets
M25P20-VMN6TPB by:

Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8

Part Details for M25P20-VMN6TPB by Micron Technology Inc

Results Overview of M25P20-VMN6TPB by Micron Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Smart Cities Transportation and Logistics Automotive

M25P20-VMN6TPB Information

M25P20-VMN6TPB by Micron Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M25P20-VMN6TPB

Part # Distributor Description Stock Price Buy
DISTI # VN5:3623_24080754
Arrow Electronics NOR Flash Serial-SPI 2.5V/3V/3.3V 2M-bit 256K x 8 8ns 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 110 Weeks Date Code: 1823 Americas - 20000
  • 1 $1.3100
  • 301 $1.2400
  • 626 $1.0400
  • 1,251 $0.7100
  • 2,501 $0.6600
  • 5,001 $0.6200
$0.6200 / $1.3100 Buy Now
DISTI # 67581093
Verical NOR Flash Serial-SPI 2.5V/3V/3.3V 2M-bit 256K x 8 8ns 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 1823 Americas - 20000
  • 2,500 $0.7100
  • 2,501 $0.6600
  • 5,001 $0.6200
$0.6200 / $0.7100 Buy Now
Bristol Electronics   172
RFQ
Chip 1 Exchange INSTOCK 2325
RFQ
DISTI # M25P20-VMN6TPB
Avnet Silica NOR Flash SerialSPI 33V 2Mbit 256K x 8bit 8ns 8Pin SO N TR (Alt: M25P20-VMN6TPB) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days Silica - 0
Buy Now
DISTI # M25P20-VMN6TPB
EBV Elektronik NOR Flash SerialSPI 33V 2Mbit 256K x 8bit 8ns 8Pin SO N TR (Alt: M25P20-VMN6TPB) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 EBV - 0
Buy Now
Win Source Electronics IC FLASH 2MBIT 75MHZ 8SO 25760
  • 215 $0.2735
  • 455 $0.2559
  • 705 $0.2471
  • 1,010 $0.2295
  • 1,310 $0.2206
  • 1,640 $0.2118
$0.2118 / $0.2735 Buy Now

Part Details for M25P20-VMN6TPB

M25P20-VMN6TPB CAD Models

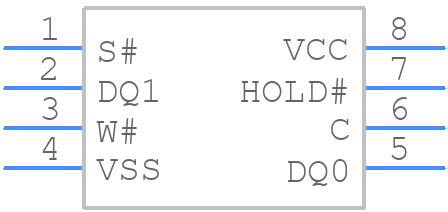

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

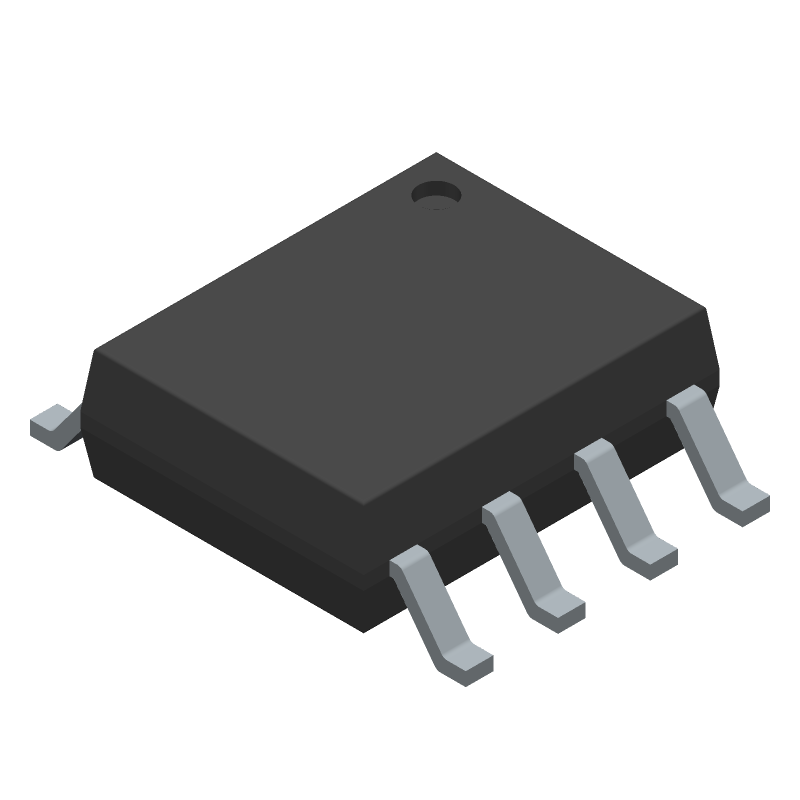

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M25P20-VMN6TPB Part Data Attributes

Parametric Data
M25P20-VMN6TPB Micron Technology Inc
Buy Now Datasheet
Compare Parts:
M25P20-VMN6TPB Micron Technology Inc Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MICRON TECHNOLOGY INC
Part Package Code SOIC
Package Description SOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Samacsys Manufacturer Micron
Additional Feature 40 MHZ CLOCK FREQUENCY AVAILABLE UPON REQUEST
Clock Frequency-Max (fCLK) 50 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
Length 4.9 mm
Memory Density 2097152 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 262144 words
Number of Words Code 256000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 256KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.7 V
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Serial Bus Type SPI
Standby Current-Max 0.000005 A
Supply Current-Max 0.015 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.3 V
Supply Voltage-Nom (Vsup) 2.7 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Type NOR TYPE
Width 3.9 mm
Write Protection HARDWARE/SOFTWARE

Alternate Parts for M25P20-VMN6TPB

This table gives cross-reference parts and alternative options found for M25P20-VMN6TPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M25P20-VMN6TPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M25P20-VMN3TP/X Numonyx Memory Solutions Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M25P20-VMN6TPB vs M25P20-VMN3TP/X
M25P20-VMN6P Micron Technology Inc Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M25P20-VMN6TPB vs M25P20-VMN6P
M25P20S-VMN6GB Micron Technology Inc Check for Price 2M X 1 FLASH 2.7V PROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOP-8 M25P20-VMN6TPB vs M25P20S-VMN6GB
M25P20-VMN3G/X Numonyx Memory Solutions Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M25P20-VMN6TPB vs M25P20-VMN3G/X
M25P20-VMN3P/X Numonyx Memory Solutions Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M25P20-VMN6TPB vs M25P20-VMN3P/X
M25P20SVMN6TGB Micron Technology Inc Check for Price Flash, 2MX1, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOP-8 M25P20-VMN6TPB vs M25P20SVMN6TGB
M25P20-VMN3TG Numonyx Memory Solutions Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SO-8 M25P20-VMN6TPB vs M25P20-VMN3TG
M25P20SVMN6G Numonyx Memory Solutions Check for Price Flash, 256KX8, PDSO8, SOP-8 M25P20-VMN6TPB vs M25P20SVMN6G
M25P20-VMN6 Micron Technology Inc Check for Price Flash, 256KX8, PDSO8, 0.150 INCH, PLASTIC, SO-8 M25P20-VMN6TPB vs M25P20-VMN6
Part Number Manufacturer Composite Price Description Compare
M25P20-VMN6GBA Micron Technology Inc Check for Price Flash, 2MX1, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOP-8 M25P20-VMN6TPB vs M25P20-VMN6GBA
AT45DB021E-SSHN2B-T Adesto Technologies Corporation Check for Price Flash, 2MX1, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8 M25P20-VMN6TPB vs AT45DB021E-SSHN2B-T
AT45DB021B-SJ Atmel Corporation Check for Price Flash, 2MX1, PDSO8, 0.209 INCH, PLASTIC, EIAJ, SOIC-8 M25P20-VMN6TPB vs AT45DB021B-SJ
M25P20S-VMN6TPB Micron Technology Inc Check for Price 2M X 1 FLASH 2.7V PROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOP-8 M25P20-VMN6TPB vs M25P20S-VMN6TPB
AT45DB021E-SHN-B Adesto Technologies Corporation Check for Price Flash, 2MX1, PDSO8, SOIC-8 M25P20-VMN6TPB vs AT45DB021E-SHN-B
AT45DB021E-SHN-T Renesas Electronics Corporation Check for Price 2Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory, SOIC-W, 2000/Tape & Reel M25P20-VMN6TPB vs AT45DB021E-SHN-T
SST25VF020-20-4E-SAE Microchip Technology Inc Check for Price 2M X 1 FLASH 2.7V PROM, PDSO8, 0.150 INCH, 4.90 X 6 MM, ROHS COMPLIANT, MS-012AA, SOIC-8 M25P20-VMN6TPB vs SST25VF020-20-4E-SAE
AT45DB021E-SSHN-T Adesto Technologies Corporation Check for Price Flash, 2MX1, PDSO8, SOIC-8 M25P20-VMN6TPB vs AT45DB021E-SSHN-T
NX25P20-VNI-G Winbond Electronics Corp Check for Price Flash, 2MX1, PDSO8, 0.150 INCH, GREEN, SOIC-8 M25P20-VMN6TPB vs NX25P20-VNI-G
SST25VF020-20-4E-SA Silicon Storage Technology Check for Price Flash, 2MX1, PDSO8, 4.90 X 6 MM, MS-012AA, SOIC-8 M25P20-VMN6TPB vs SST25VF020-20-4E-SA

M25P20-VMN6TPB Related Parts

M25P20-VMN6TPB Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the M25P20-VMN6TPB is -40°C to +85°C.

  • The M25P20-VMN6TPB can handle up to 100,000 erase cycles.

  • The data retention period for the M25P20-VMN6TPB is 20 years at 25°C.

  • Yes, the M25P20-VMN6TPB is AEC-Q100 qualified, making it suitable for use in automotive applications.

  • The typical programming time for the M25P20-VMN6TPB is 10ms per 256-byte page.
