Memory / EEPROMs / M24C64-RMN6P
Datasheets
M24C64-RMN6P by: STMicroelectronics

64 Kbit serial I<sup>2</sup>C bus EEPROM

Part Details for M24C64-RMN6P by STMicroelectronics

Results Overview of M24C64-RMN6P by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

M24C64-RMN6P Information

M24C64-RMN6P by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C64-RMN6P

Part # Distributor Description Stock Price Buy
DISTI # 96AC1191
Newark Memory Rohs Compliant: Yes |Stmicroelectronics M24C64-RMN6P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 26000
  • 1 $0.1160
$0.1160 Buy Now
DISTI # 07AH6808
Newark Eeprom, 64Kbit, -40 To 85Deg C, Memory Size:64Kbit, Eeprom Memory Configuration:8K X 8Bit, Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:1Mhz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Min:1.8V, Supply Rohs Compliant: Yes |Stmicroelectronics M24C64-RMN6P RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk 380
  • 1 $0.3400
  • 10 $0.3030
  • 100 $0.2910
  • 500 $0.2790
  • 1,000 $0.2680
  • 2,500 $0.2560
  • 10,000 $0.2440
$0.2440 / $0.3400 Buy Now
DISTI # 497-8574-ND
DigiKey IC EEPROM 64KBIT I2C 1MHZ 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk 1228
In Stock
  • 1 $0.2900
  • 10 $0.2690
  • 25 $0.2624
  • 50 $0.2570
  • 100 $0.2516
  • 250 $0.2444
  • 500 $0.2389
  • 2,000 $0.2279
  • 6,000 $0.2192
$0.2192 / $0.2900 Buy Now
DISTI # M24C64-RMN6P
Avnet Americas EEPROM, I2C, Serial, 64 Kbit, 8K x 8bit, 1 MHz, 8 Pins, SOIC N - Rail/Tube (Alt: M24C64-RMN6P) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube 26000
  • 1 $0.1155
$0.1155 Buy Now
DISTI # 511-M24C64-RMN6P
Mouser Electronics EEPROM EEPROM S I2C 64k RoHS: Compliant 5782
  • 1 $0.2700
  • 10 $0.2330
  • 4,000 $0.2240
  • 10,000 $0.1740
$0.1740 / $0.2700 Buy Now
DISTI # V36:1790_06553613
Arrow Electronics EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks Date Code: 2416 Americas - 8000
  • 2,000 $0.2136
  • 6,000 $0.1773
$0.1773 / $0.2136 Buy Now
DISTI # E02:0323_00213385
Arrow Electronics EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2317 Europe - 3987
  • 1 $0.1099
$0.1099 Buy Now
DISTI # 77686886
Verical EEPROM Serial-I2C 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 2317 Americas - 3950
  • 51 $0.1106
$0.1106 Buy Now
DISTI # M24C64-RMN6P
TME IC: EEPROM memory, 64kbEEPROM, I2C, 8kx8bit, 1.8÷5.5V, 1MHz, SO8 Min Qty: 1 0
  • 1 $0.7700
  • 5 $0.2920
  • 25 $0.2770
  • 100 $0.2450
  • 500 $0.2380
$0.2380 / $0.7700 RFQ
DISTI # M24C64-RMN6P
IBS Electronics M24C64 SERIES 64 KB (8 K X 8) 1.8 V SMT SERIAL I&#xB2, C BUS EEPROM - SOIC-8 Min Qty: 8800 Package Multiple: 1 0
  • 500 $0.1638
  • 3,000 $0.1599
  • 8,800 $0.1677
  • 10,000 $0.1560
  • 30,000 $0.1508
$0.1508 / $0.1677 Buy Now
DISTI # SMC-M24C64-RMN6P
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 2403
RFQ
DISTI # M24C64-RMN6P
Avnet Silica EEPROM I2C Serial 64 Kbit 8K x 8bit 1 MHz 8 Pins SOIC N (Alt: M24C64-RMN6P) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Silica - 16000
Buy Now
DISTI # M24C64-RMN6P
EBV Elektronik EEPROM I2C Serial 64 Kbit 8K x 8bit 1 MHz 8 Pins SOIC N (Alt: M24C64-RMN6P) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 26 Weeks, 0 Days EBV - 1500
Buy Now
LCSC I2C SOIC-8 EEPROM ROHS 680
  • 5 $0.3294
  • 50 $0.2612
  • 200 $0.2319
  • 500 $0.1954
  • 2,000 $0.1791
  • 4,000 $0.1694
$0.1694 / $0.3294 Buy Now
Win Source Electronics IC EEPROM 64KBIT I2C 1MHZ 8SOIC / EEPROM Memory IC 64Kbit I2C 1 MHz 450 ns 8-SOIC 94360
  • 820 $0.0706
  • 1,750 $0.0661
  • 2,720 $0.0638
  • 3,900 $0.0593
  • 5,075 $0.0570
  • 6,330 $0.0547
$0.0547 / $0.0706 Buy Now

Part Details for M24C64-RMN6P

M24C64-RMN6P CAD Models

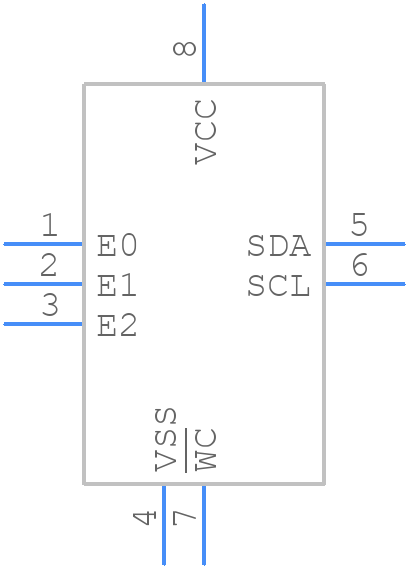

  • Part Symbol

    Part Symbol

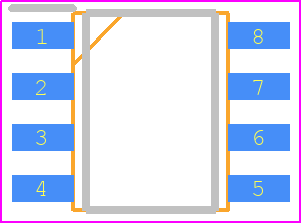

  • Footprint

    footprint

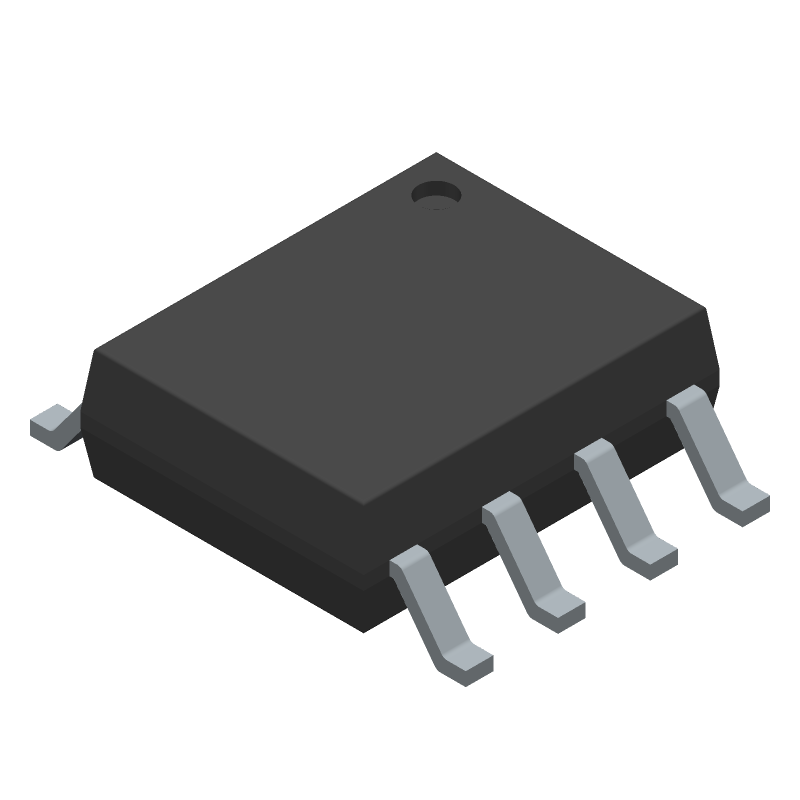

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C64-RMN6P Part Data Attributes

Parametric Data
M24C64-RMN6P STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C64-RMN6P STMicroelectronics 64 Kbit serial I<sup>2</sup>C bus EEPROM
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description SOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Samacsys Manufacturer STMicroelectronics
Endurance 1000000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Memory Density 65536 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 8192 words
Number of Words Code 8000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 8KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Standby Current-Max 0.000001 A
Supply Current-Max 0.0025 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 3.9 mm
Write Protection HARDWARE

Alternate Parts for M24C64-RMN6P

This table gives cross-reference parts and alternative options found for M24C64-RMN6P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24C64-RMN6P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M24C64-RMN6G STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6G
M24C64-RMN3PP STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN3PP
M24C64-RMN5T STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 M24C64-RMN6P vs M24C64-RMN5T
M24C64-RMN5TP STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN5TP
M24C64-RMN1 STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 M24C64-RMN6P vs M24C64-RMN1
M24C64-RMN6 STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6
M24C64-RMN6TP/C STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6TP/C
M24C64-RMN6TPP STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6TPP
M24C64-RMN6/B STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6/B
Part Number Manufacturer Composite Price Description Compare
M24C64-RMN6TP STMicroelectronics $0.1555 64 Kbit serial I2C bus EEPROM M24C64-RMN6P vs M24C64-RMN6TP
M24C64-RMN3TGP STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN3TGP
M24C64-RMN6TG/B STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6TG/B
M24C64-RMN5P STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN5P
AT24C64B-10TI-2.7 Atmel Corporation Check for Price EEPROM, 8KX8, Serial, CMOS, PDSO8, 4.40 MM, PLASTIC, MO153-AA, TSSOP-8 M24C64-RMN6P vs AT24C64B-10TI-2.7
M24C64-RMN5TG/P STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN5TG/P
AT24C64A-10TU-2.7 Atmel Corporation Check for Price EEPROM, 8KX8, Serial, CMOS, PDSO8, 4.40 MM, GREEN, PLASTIC, MO-153AA, TSSOP-8 M24C64-RMN6P vs AT24C64A-10TU-2.7
M24C64-RMN6TG STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN6TG
M24C64-RMN5TP/P STMicroelectronics Check for Price 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 M24C64-RMN6P vs M24C64-RMN5TP/P
AT24C64B-10TU-1.8-T Microchip Technology Inc Check for Price EEPROM M24C64-RMN6P vs AT24C64B-10TU-1.8-T

M24C64-RMN6P Related Parts

M24C64-RMN6P Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the M24C64-RMN6P is 1 MHz.

  • The M24C64-RMN6P has 64 Kbits (8 Kbytes) of user memory.

  • The M24C64-RMN6P has an endurance of 1 million erase/write cycles.

  • The M24C64-RMN6P has a data retention period of 40 years at 85°C.

  • Yes, the M24C64-RMN6P is compatible with the I2C bus and supports I2C bus frequencies up to 1 MHz.
