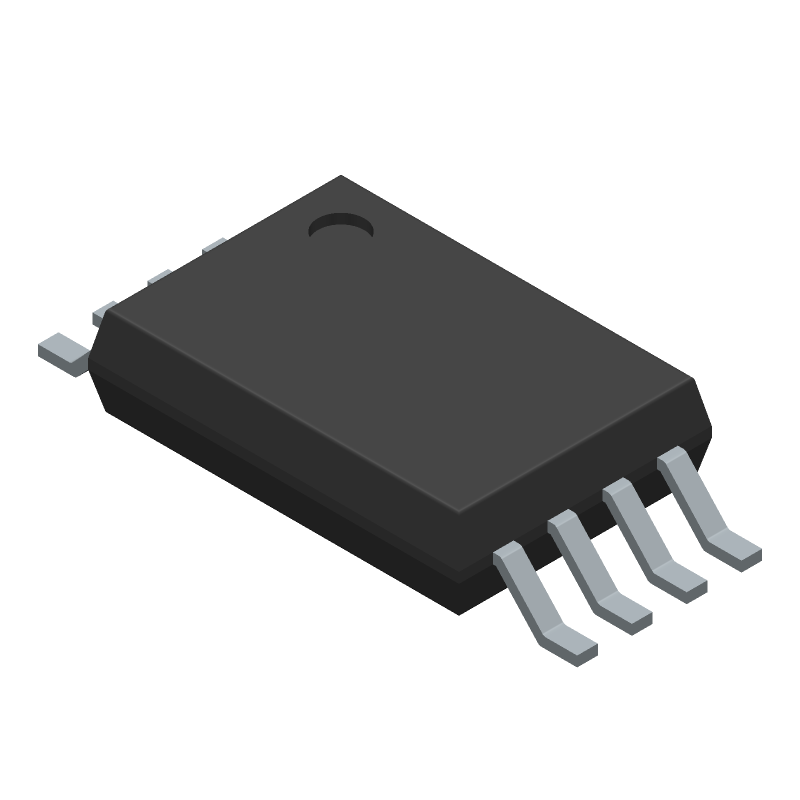

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M24C64-FDW6TP by STMicroelectronics
Results Overview of M24C64-FDW6TP by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
M24C64-FDW6TP Information
M24C64-FDW6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24C64-FDW6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AH9900
|
Newark | Eeprom, 64Kbit, -40 To 85Deg C, Memory Size:64Kbit, Eeprom Memory Configuration:8K X 8Bit, Memory Interface Type:Serial I2C (2-Wire), Clock Frequency:1Mhz, Memory Case Style:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Rohs Compliant: Yes |Stmicroelectronics M24C64-FDW6TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8665 |
|
$0.3130 / $0.3650 | Buy Now |
|
DISTI #
497-15760-1-ND
|
DigiKey | IC EEPROM 64KBIT I2C 1MHZ 8TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
16828 In Stock |
|
$0.2170 / $0.2900 | Buy Now |
|
DISTI #
M24C64-FDW6TP
|
Avnet Americas | EEPROM, 64 Kbit, 8K x 8bit, I2C, 1 MHz, TSSOP, 8 Pins - Tape and Reel (Alt: M24C64-FDW6TP) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days Container: Reel | 4000 |
|
$0.1123 / $0.1149 | Buy Now |
|
DISTI #
511-M24C64-FDW6TP
|
Mouser Electronics | EEPROM 64kB Serial I2C bus 1.7V 1MHz Fast Mode RoHS: Compliant | 19023 |
|
$0.1940 / $0.2900 | Buy Now |
|
DISTI #
V36:1790_06553609
|
Arrow Electronics | EEPROM Serial-I2C 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks Date Code: 2427 | Americas - 4000 |
|
$0.1630 / $0.1789 | Buy Now |
|
|
STMicroelectronics | 64-Kbit serial I2C bus EEPROM COO: China RoHS: Compliant Min Qty: 1 | 19023 |
|
$0.2400 / $0.2800 | Buy Now |
|
DISTI #
84018851
|
Verical | EEPROM Serial-I2C 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2427 | Americas - 4000 |
|
$0.1630 / $0.1789 | Buy Now |
|
|
Future Electronics | M24C64-F Series 64 K (8K x 8) 5.5 V SMT Serial I�C bus EEPROM - TSSOP-8 Min Qty: 4000 Package Multiple: 4000 |
16000 null |
|
$0.0908 / $0.0977 | Buy Now |
|
DISTI #
M24C64-FDW6TP
|
TME | IC: EEPROM memory, 64kbEEPROM, I2C, 8kx8bit, 1.7÷5.5V, 1MHz, TSSOP8 Min Qty: 1 | 0 |
|
$0.2060 / $0.3400 | RFQ |
|
DISTI #
SMC-M24C64-FDW6TP
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 4000 |
|
RFQ |
Part Details for M24C64-FDW6TP
M24C64-FDW6TP CAD Models
M24C64-FDW6TP Part Data Attributes
|
|
M24C64-FDW6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M24C64-FDW6TP
STMicroelectronics
64-Kbit serial I<sup>2</sup>C bus EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 65536 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 8192 words | |
| Number of Words Code | 8000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 8KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.0025 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Protection | HARDWARE |
Alternate Parts for M24C64-FDW6TP
This table gives cross-reference parts and alternative options found for M24C64-FDW6TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24C64-FDW6TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M24C64-FDW6P | STMicroelectronics | Check for Price | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 | M24C64-FDW6TP vs M24C64-FDW6P |
M24C64-FDW6TP Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the M24C64-FDW6TP is 1 MHz.
-
The M24C64-FDW6TP has 64 Kbits (8 Kbytes) of user memory.
-
The M24C64-FDW6TP has a write endurance of 1 million cycles.
-
The M24C64-FDW6TP has a data retention period of 40 years at 85°C.
-
Yes, the M24C64-FDW6TP is compatible with the I2C bus protocol.
