Part Symbol
-
Footprint
-

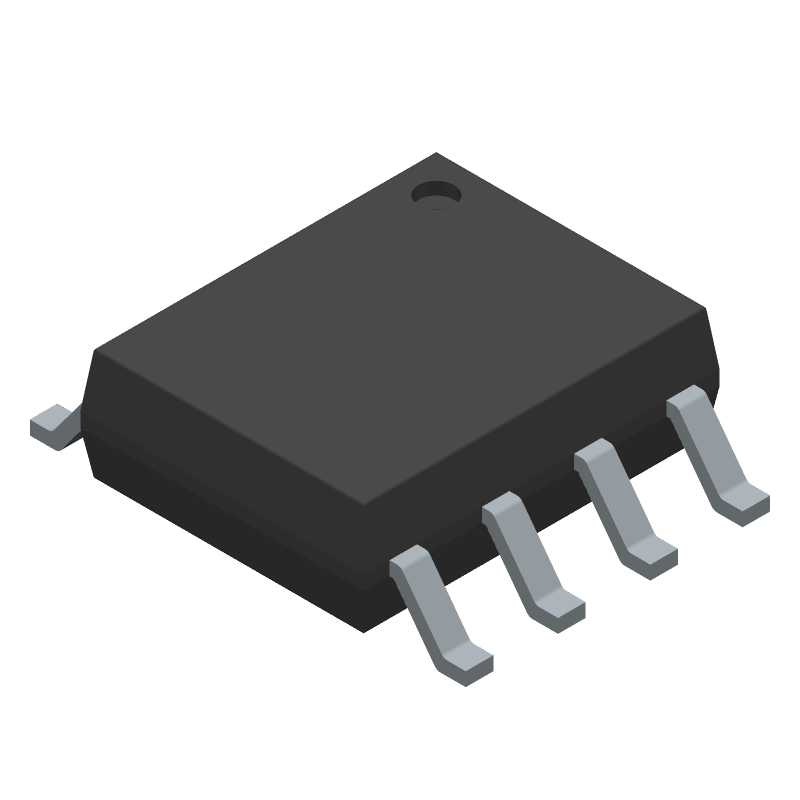

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M24C16-WMN6P by STMicroelectronics
Results Overview of M24C16-WMN6P by STMicroelectronics
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
M24C16-WMN6P Information
M24C16-WMN6P by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24C16-WMN6P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23AC7315
|
Newark | Memory Rohs Compliant: Yes |Stmicroelectronics M24C16-WMN6P RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1060 | Buy Now |
|
DISTI #
497-8569-ND
|
DigiKey | IC EEPROM 16KBIT I2C 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
2264 In Stock |
|
$0.1795 / $0.2300 | Buy Now |
|
DISTI #
M24C16-WMN6P
|
Avnet Americas | EEPROM Serial-I2C 16K-Bit 2K x 8 3.3V/5V 8-Pin SO N - Rail/Tube (Alt: M24C16-WMN6P) RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube | 26000 |
|
$0.1053 | Buy Now |
|
DISTI #
511-M24C16-WMN6P
|
Mouser Electronics | EEPROM 2.5-5.5V 16K (2Kx8) RoHS: Compliant | 4247 |
|
$0.1400 / $0.2300 | Buy Now |
|
DISTI #
E02:0323_00213069
|
Arrow Electronics | EEPROM Serial-I2C 16K-bit 2K x 8 3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2422 | Europe - 45192 |
|
$0.1005 / $0.1622 | Buy Now |
|
DISTI #
V36:1790_06553585
|
Arrow Electronics | EEPROM Serial-I2C 16K-bit 2K x 8 3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks Date Code: 2434 | Americas - 16000 |
|
$0.1352 / $0.1689 | Buy Now |
|
|
Future Electronics | M24C16 Series 16 Kb (2 K x 8) 2.5 V SMT Serial I²C Bus EEPROM - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tube | 7804Tube |
|
$0.0876 / $0.1020 | Buy Now |
|
DISTI #
84875195
|
Verical | EEPROM Serial-I2C 16K-bit 2K x 8 3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 1 Date Code: 2422 | Americas - 45192 |
|
$0.1021 / $0.1410 | Buy Now |
|
DISTI #
86931819
|
Verical | EEPROM Serial-I2C 16K-bit 2K x 8 3.3V/5V 8-Pin SO N Tube RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2434 | Americas - 16000 |
|
$0.1352 / $0.1689 | Buy Now |
|
|
Bristol Electronics | 230 |
|
RFQ |
Part Details for M24C16-WMN6P
M24C16-WMN6P CAD Models
M24C16-WMN6P Part Data Attributes
|
|
M24C16-WMN6P
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M24C16-WMN6P
STMicroelectronics
16 Kbit serial I<sup>2</sup>C bus EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 4000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Memory Density | 16384 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2048 words | |
| Number of Words Code | 2000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2KX8 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000002 A | |
| Supply Current-Max | 0.001 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm | |
| Write Cycle Time-Max (tWC) | 5 ms |
Alternate Parts for M24C16-WMN6P
This table gives cross-reference parts and alternative options found for M24C16-WMN6P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24C16-WMN6P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M24C16WMN6 | STMicroelectronics | Check for Price | 2KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 | M24C16-WMN6P vs M24C16WMN6 |
| M24C16-WMN1T | STMicroelectronics | Check for Price | 2KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 | M24C16-WMN6P vs M24C16-WMN1T |
| M24C16-WMN1 | STMicroelectronics | Check for Price | 2KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 | M24C16-WMN6P vs M24C16-WMN1 |
M24C16-WMN6P Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the M24C16-WMN6P is 1 MHz.
-
The M24C16-WMN6P has 16 Kbits (2048 bytes) of user memory.
-
The M24C16-WMN6P has a write endurance of 1 million cycles.
-
The M24C16-WMN6P has a data retention period of 40 years.
-
Yes, the M24C16-WMN6P is compatible with the I2C bus protocol.
