Connectors / D Type Connectors / M24308/24-1F
Datasheets
M24308/24-1F by:

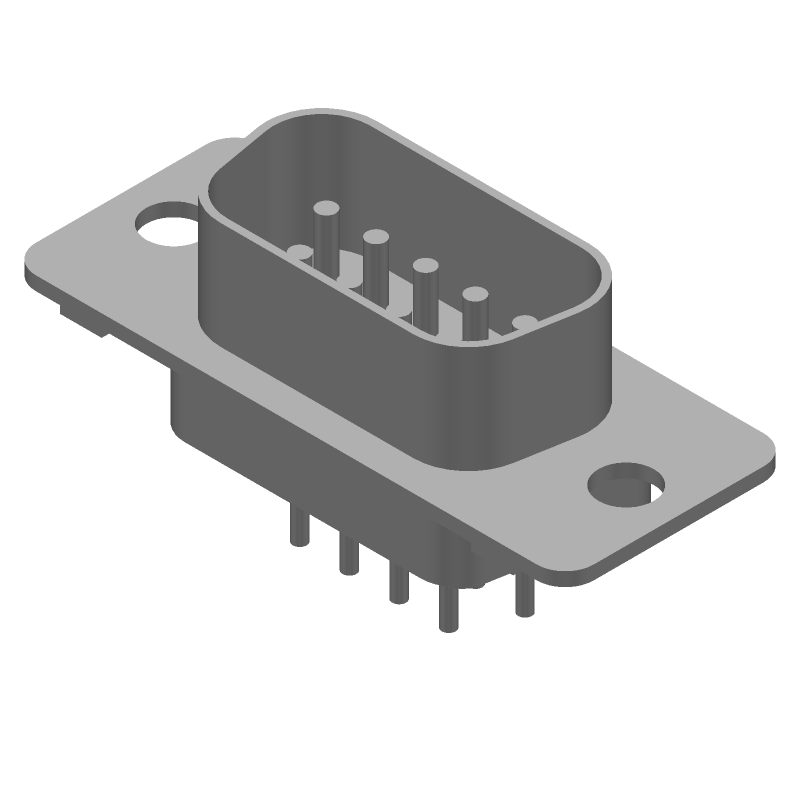

9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG

Part Details for M24308/24-1F by TE Connectivity

Results Overview of M24308/24-1F by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M24308/24-1F Information

M24308/24-1F by TE Connectivity is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M24308/24-1F

Part # Distributor Description Stock Price Buy
DISTI # 1218124-1
Avnet Americas D Sub Connector, Plug, AMPLIMITE 109, 9 Contacts, DE, Solder - Bulk (Alt: 1218124-1) RoHS: Not Compliant Min Qty: 200 Package Multiple: 50 Lead time: 23 Weeks, 6 Days Container: Bulk 0
  • 200 $14.3333
  • 300 $14.2199
  • 500 $11.8964
  • 1,000 $10.9677
  • 2,000 $10.8829
$10.8829 / $14.3333 Buy Now
DISTI # 571-1218124-1
Mouser Electronics D-Sub MIL Spec Connectors PCB PLUG 9 POS VERT RoHS: Not Compliant 188
  • 1 $20.1000
  • 10 $17.1200
  • 25 $16.4400
  • 50 $15.7200
  • 100 $15.1500
  • 250 $14.6800
  • 500 $12.6800
$12.6800 / $20.1000 Buy Now
DISTI # TMZM24308/24-1F
Heilind Electronics   Americas - 0 in Stock
Buy Now
Onlinecomponents.com Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Alternative Product Available
  • 50 $14.9200
  • 100 $9.1800
  • 200 $7.2700
  • 400 $7.1300
$7.1300 / $14.9200 Buy Now
Quest Components D SUBMINIATURE CONNECTOR, 9 CONTACT(S), MALE, 0.109 INCH PITCH, SOLDER TERMINAL, HOLE .112-.124, PLUG 8
  • 1 $13.2000
  • 5 $9.9000
$9.9000 / $13.2000 Buy Now
Quest Components D SUBMINIATURE CONNECTOR, 9 CONTACT(S), MALE, 0.109 INCH PITCH, SOLDER TERMINAL, HOLE .112-.124, PLUG 1
  • 1 $16.4374
$16.4374 Buy Now
DISTI # M24308/24-1F
TTI D-Sub MIL Spec Connectors PCB PLUG 9 POS VERT Min Qty: 1 Package Multiple: 1 Container: Kit Americas - 755
In Stock
  • 1 $19.5200
  • 4 $16.7300
  • 10 $16.2400
  • 25 $15.8200
  • 50 $15.5100
  • 100 $14.9600
  • 250 $13.5000
$13.5000 / $19.5200 Buy Now
DISTI # TMZM24308/24-1F
Interstate Connecting Components   0
  • 200 $19.1640
  • 450 $18.8548
$18.8548 / $19.1640 Buy Now
DISTI # SMC-M24308/24-1F
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 1
RFQ
Master Electronics Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Alternative Product Available
  • 50 $14.9200
  • 100 $9.1800
  • 200 $7.2700
  • 400 $7.1300
$7.1300 / $14.9200 Buy Now

Part Details for M24308/24-1F

M24308/24-1F Part Data Attributes

Parametric Data
M24308/24-1F TE Connectivity
Buy Now Datasheet
Compare Parts:
M24308/24-1F TE Connectivity 9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code not_compliant
Factory Lead Time 23 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Additional Feature STANDARD: MIL-C-24308, LOW PROFILE
Body/Shell Style PLUG
Connector Type D SUBMINIATURE CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Style RND PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Material POLYESTER/POLYPHENYLENE SULFIDE
MIL Conformance NO
Mains Connector Rating 5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Panel Mount NO
Rated Current (Signal) 5 A
Shell Finish CADMIUM
Shell Material STEEL
Shell Size 1/E
Terminal Length 0.156 inch
Terminal Pitch 2.77 mm
Termination Type SOLDER
Total Number of Contacts 9

Alternate Parts for M24308/24-1F

This table gives cross-reference parts and alternative options found for M24308/24-1F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24308/24-1F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M24308/24-1P Amphenol Positronic $27.1006 D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1P
M24308/24-1F Amphenol Positronic $4.4563 D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1F
M24308/24-1F Cinch Connectivity Solutions Check for Price D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug, M24308/24-1F vs M24308/24-1F
M24308/2-41Z Amphenol Corporation Check for Price D Subminiature Connector, M24308/24-1F vs M24308/2-41Z
M24308/24-1F ADI Electronics Inc Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug M24308/24-1F vs M24308/24-1F
M24308/24-1F Cristek Interconnects Inc Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1F
M24308/24-1Z Amphenol Positronic Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1Z
M24308/24-1F Bel Fuse Check for Price D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle M24308/24-1F vs M24308/24-1F
M24308/24-1Z Cristek Interconnects Inc Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1Z
Part Number Manufacturer Composite Price Description Compare
M24308/24-1Z ADI Electronics Inc Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug M24308/24-1F vs M24308/24-1Z
M24308/24-1A Cinch Connectivity Solutions Check for Price D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Plug, M24308/24-1F vs M24308/24-1A
M24308/24-1P Defense Logistics Agency Check for Price D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, M24308/24-1F vs M24308/24-1P
M24308/24-1F Defense Logistics Agency Check for Price D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Plug, M24308/24-1F vs M24308/24-1F
