Connectors / D Type Connectors / M24308/2-1Z
Datasheets
M24308/2-1Z by:

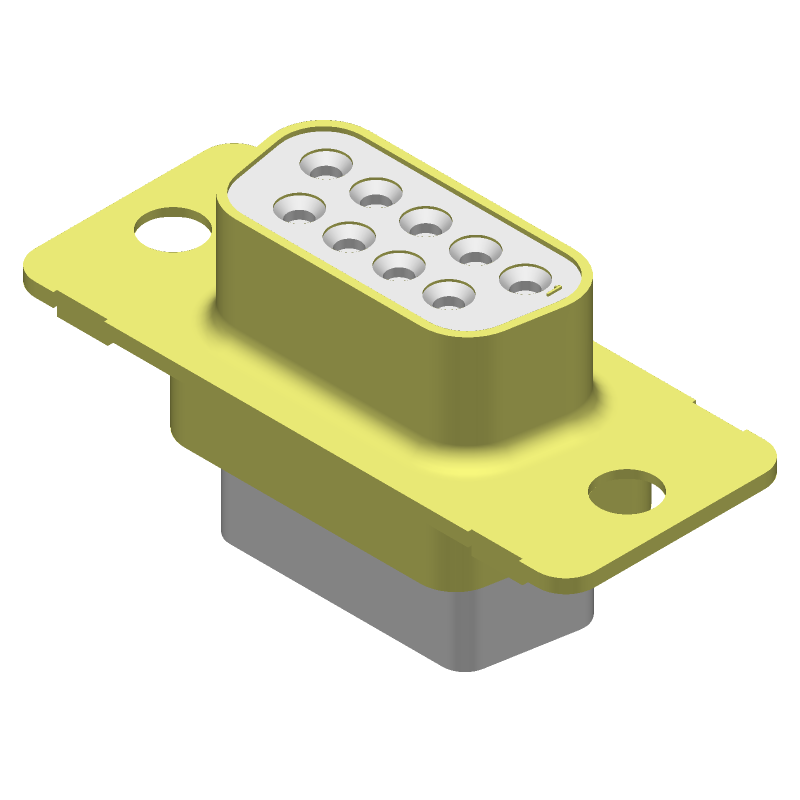

D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle,

Part Details for M24308/2-1Z by Amphenol Corporation

Results Overview of M24308/2-1Z by Amphenol Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M24308/2-1Z Information

M24308/2-1Z by Amphenol Corporation is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M24308/2-1Z

Part # Distributor Description Stock Price Buy
DISTI # M24308/2-1Z
Avnet Americas - Bulk (Alt: M24308/2-1Z) Min Qty: 25 Package Multiple: 25 Lead time: 13 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # M24308/2-1Z
Avnet Abacus (Alt: M24308/2-1Z) RoHS: Not Compliant Min Qty: 25 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for M24308/2-1Z

M24308/2-1Z Part Data Attributes

Parametric Data
M24308/2-1Z Amphenol Corporation
Buy Now Datasheet
Compare Parts:
M24308/2-1Z Amphenol Corporation D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle,
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL CORP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 13 Weeks
Samacsys Manufacturer Amphenol
Additional Feature STANDARD: MIL-DTL-24308, POLARIZED
Body/Shell Style RECEPTACLE
Connector Type D SUBMINIATURE CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender FEMALE
DIN Conformance NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
MIL Conformance YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Type CABLE AND PANEL
Option GENERAL PURPOSE
Shell Size 1/E
Termination Type CRIMP
Total Number of Contacts 9

Alternate Parts for M24308/2-1Z

This table gives cross-reference parts and alternative options found for M24308/2-1Z. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24308/2-1Z, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M24308/2-1Z TE Connectivity Check for Price 9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE M24308/2-1Z vs M24308/2-1Z
M24308/2-1F Amphenol Positronic $9.4313 D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle, M24308/2-1Z vs M24308/2-1F
M24308/2-1 Amphenol Positronic Check for Price M24308/2-1 M24308/2-1Z vs M24308/2-1
DEU-9S-A197-F0 ITT Interconnect Solutions $2.8672 D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Hole .112-.124, Socket, M24308/2-1Z vs DEU-9S-A197-F0
M24308/2-1F SOURIAU-SUNBANK Check for Price D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle, M24308/2-1Z vs M24308/2-1F
M24308/2-1F Amphenol Corporation $6.7640 D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle, M24308/2-1Z vs M24308/2-1F
M24308/2-1K Amphenol Corporation Check for Price D Subminiature Connector, M24308/2-1Z vs M24308/2-1K
M24308/2-1F Cinch Connectivity Solutions $37.4311 D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Socket, M24308/2-1Z vs M24308/2-1F
Part Number Manufacturer Composite Price Description Compare
M24308/2-1F Eaton Corporation Check for Price D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Crimp Terminal, Hole .115-.125, Receptacle, M24308/2-1Z vs M24308/2-1F
M24308/2-1F TE's AMP Check for Price 9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE M24308/2-1Z vs M24308/2-1F
M24308/2-1F Air Electro Inc Check for Price D Subminiature Connector, 9 Contact(s), Female, Crimp Terminal, Receptacle M24308/2-1Z vs M24308/2-1F
205555-2 TE's AMP Check for Price 9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, CRIMP, RECEPTACLE M24308/2-1Z vs 205555-2

M24308/2-1Z Related Parts

M24308/2-1Z Frequently Asked Questions (FAQ)

  • The operating temperature range of M24308/2-1Z is -55°C to 125°C.

  • Yes, M24308/2-1Z is designed for high-reliability applications and meets the requirements of MIL-DTL-24308.

  • The mating cycle life of M24308/2-1Z is 500 cycles minimum.

  • Yes, M24308/2-1Z is designed to withstand vibration and shock per MIL-STD-202, Method 204.

  • Yes, M24308/2-1Z is designed to operate in harsh environments, including exposure to moisture, salt spray, and other environmental stressors.
