M2022SS1W03 Information
M2022SS1W03 by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for M2022SS1W03
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10X7380
|
Newark | Switch, Toggle, Dpdt, 6A, 125Vac, Switch Operation:On-On, Contact Configuration:Dpdt, Illumination:Non Illuminated, Product Range:M Series, Contact Current Max:6A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:125V Rohs Compliant: Yes |Nkk Switches M2022SS1W03 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
|
Powell Electronics | BUSHING MOUNT MINIATURE TOGGLE Min Qty: 1 | 4332 |
|
$4.7000 / $6.8500 | Buy Now |
Part Details for M2022SS1W03
M2022SS1W03 CAD Models
M2022SS1W03 Part Data Attributes
|
|
M2022SS1W03
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
M2022SS1W03
NKK Switches

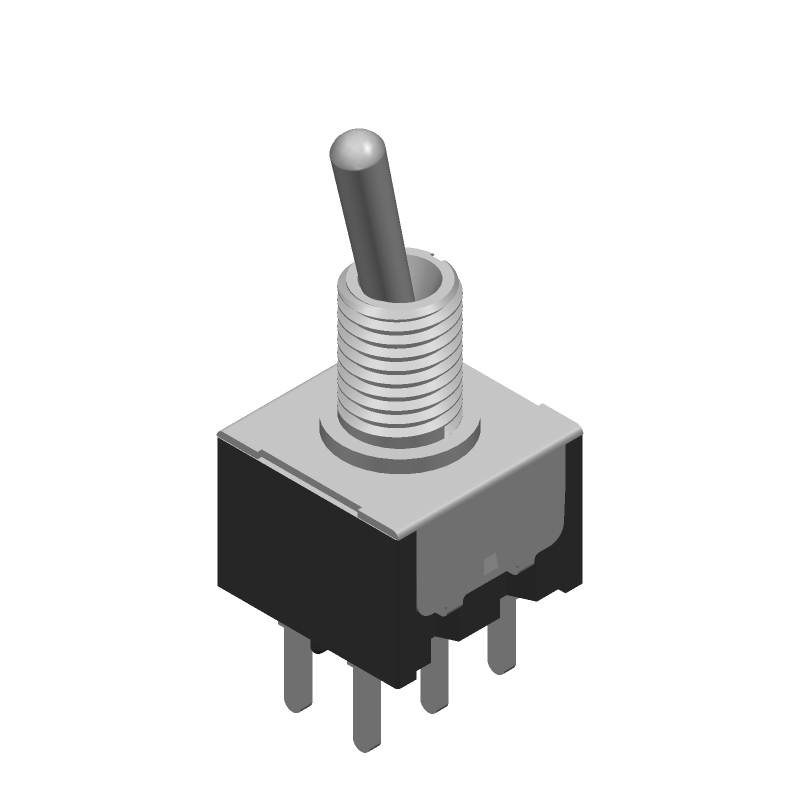

Toggle Switch, DPDT, On-on, Horizontal, 6 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | 25 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.413 inch | |
| Actuator Material | BRASS | |
| Actuator Type | TOGGLE BAT | |
| Body Breadth | 12.7 mm | |
| Body Height | 35.1536 mm | |
| Body Length or Diameter | 13.0048 mm | |
| Bushing Diameter | 0.25 inch | |
| Bushing Length | 0.35 inch | |
| Bushing Type | 1/4-40 | |
| Center Contact Material | SILVER | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 3A@250VAC | |
| Contact Current(AC)-Max | 6 A | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 125 V | |
| Dielectric Withstand Volts | 1500VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -15 °C | |
| PCB Hole Count | 6 | |
| Sealing | EPOXY | |
| Solderability | WAVE | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | GOLD OVER NICKEL/SILVER | |
| Terminal Length | 0.25 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
M2022SS1W03 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the M2022SS1W03 switch is -20°C to 85°C.
-
Yes, the M2022SS1W03 switch is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
-
The maximum switching frequency for the M2022SS1W03 switch is 20 operations per minute.
-
Yes, the M2022SS1W03 switch is designed to be washable and waterproof, making it suitable for use in applications where exposure to water or cleaning is a concern.
-
The expected lifespan of the M2022SS1W03 switch is 10,000 to 50,000 operations, depending on the application and operating conditions.
