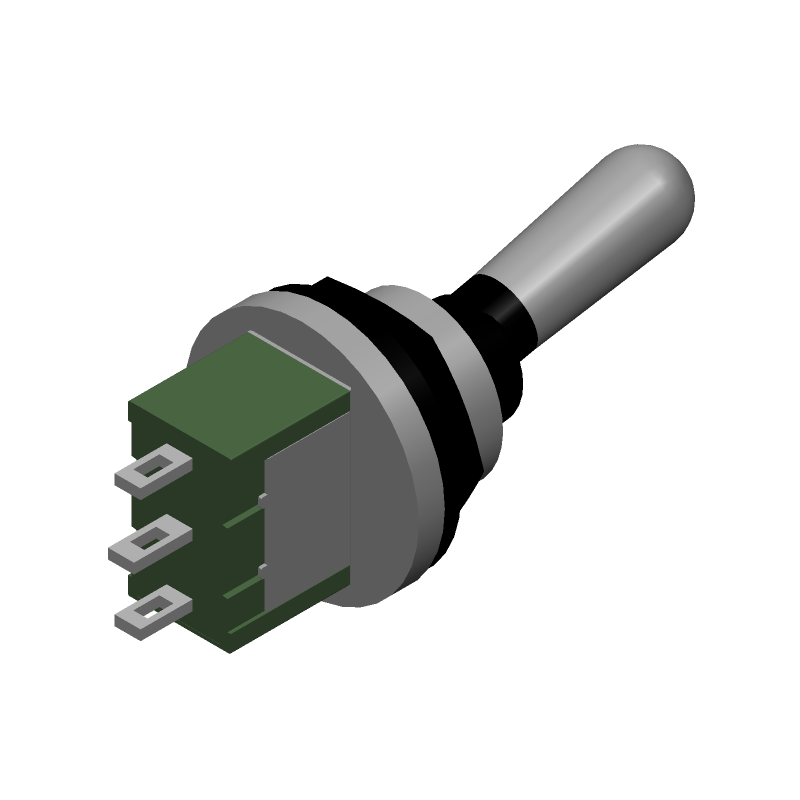

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M2013WBW01 by NKK Switches
Results Overview of M2013WBW01 by NKK Switches
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
M2013WBW01 Information
M2013WBW01 by NKK Switches is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for M2013WBW01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93Y2323
|
Newark | Toggle Switch, Spdt, 3A, 30Vdc, Solder, Switch Operation:On-Off-On, Contact Configuration:Spdt, Illumination:Non Illuminated, Product Range:M Series, Contact Current Max:3A, Switch Mounting:Panel Mount, Contact Voltage Ac Nom:250V Rohs Compliant: Yes |Nkk Switches M2013WBW01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
360-3397-ND
|
DigiKey | SWITCH TOGGLE SPDT 6A 125V Min Qty: 1 Lead time: 20 Weeks Container: Tray |
1436 In Stock |
|
$13.1281 / $19.4200 | Buy Now |
|
DISTI #
70900295
|
RS | BUSHING MOUNT MINIATURE TOGGLE Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 8 |
|
$15.1000 / $19.6100 | Buy Now |
|
DISTI #
M2013WBW01
|
TTI | Toggle Switches 3-6A 125-250VAC SPDT ON-OFF-ON SLDR IP68 Min Qty: 1 Package Multiple: 1 Container: Bulk |
Americas - 49 In Stock |
|
$17.5800 | Buy Now |
|
|
Powell Electronics | BUSHING MOUNT MINIATURE TOGGLE Min Qty: 1 | 733 |
|
$13.8100 / $20.1500 | Buy Now |
Part Details for M2013WBW01
M2013WBW01 CAD Models
M2013WBW01 Part Data Attributes
|
|
M2013WBW01
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
M2013WBW01
NKK Switches
Toggle Switch,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | NKK Switches | |
| Switch Type | TOGGLE SWITCH |
M2013WBW01 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the M2013WBW01 is -20°C to 85°C.
-
Yes, the M2013WBW01 is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
-
The maximum switching frequency for the M2013WBW01 is 20 operations per minute.
-
Yes, the M2013WBW01 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The typical bounce time for the M2013WBW01 is 5ms.
