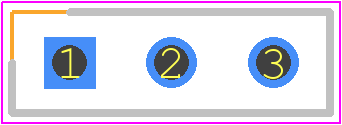

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M20-9990345 by Harwin
Results Overview of M20-9990345 by Harwin
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
M20-9990345 Information
M20-9990345 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M20-9990345
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1022248
|
element14 Asia-Pacific | , , 3, 1, 2.54MM RoHS: Compliant Min Qty: 100 Container: Each | 798 |
|
$0.0700 / $0.1000 | Buy Now |
|
DISTI #
952-2263-ND
|
DigiKey | CONN HEADER VERT 3POS 2.54MM Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
95967 In Stock |
|
$0.0761 / $0.1500 | Buy Now |
|
DISTI #
855-M20-9990345
|
Mouser Electronics | Headers & Wire Housings 03 VERTICAL PIN HEADER GOLD FLASH HT RoHS: Compliant | 15973 |
|
$0.0680 / $0.1500 | Buy Now |
|
|
Bristol Electronics | 45 |
|
RFQ | ||
|
|
Quest Components | 34 |
|
$0.2100 / $0.4200 | Buy Now | |
|
DISTI #
M20-9990345
|
TTI | Headers & Wire Housings 03 VERTICAL PIN HEADER GOLD FLASH HT RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 10 Container: Bulk |
Americas - 23890 In Stock |
|
$0.0670 / $0.1210 | Buy Now |
|
|
Powell Electronics | Headers & Wire Housings Min Qty: 1 | 24 |
|
$0.1800 / $0.2900 | Buy Now |
|
DISTI #
SMC-M20-9990345
|
Sensible Micro Corporation | Headers & Wire Housings 03 Vertical Pin Header Gold Flash Ht RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2119 Container: Bulk | 3200 |
|
$0.0540 / $0.0585 | RFQ |
|
DISTI #
SMC-M20-9990345
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 229 |
|
RFQ | |
|
DISTI #
M20-9990345
|
Avnet Abacus | Conn Unshrouded Header 3 POS 254mm Solder ST Through Hole (Alt: M20-9990345) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Abacus - 8000 |
|
Buy Now |
Part Details for M20-9990345
M20-9990345 CAD Models
M20-9990345 Part Data Attributes
|
|
M20-9990345
Harwin
Buy Now
Datasheet
|
Compare Parts:
M20-9990345
Harwin
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Harwin | |
| Additional Feature | ROHS COMPLIANT | |
| Body Breadth | 0.1 inch | |
| Body Depth | 0.1 inch | |
| Body Length | 0.3 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Gold (Au) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | BRASS | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 25 mΩ | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 750VAC V | |
| Durability | 300 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYAMIDE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.118 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 3 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for M20-9990345
This table gives cross-reference parts and alternative options found for M20-9990345. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M20-9990345, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M20-9990346 | Harwin | $0.0936 | Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | M20-9990345 vs M20-9990346 |
| M20-9990306 | Harwin | Check for Price | Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, | M20-9990345 vs M20-9990306 |
| M20-9990305 | Harwin | Check for Price | Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, | M20-9990345 vs M20-9990305 |
| M20-9990342 | Harwin | Check for Price | Board Connector | M20-9990345 vs M20-9990342 |
M20-9990345 Frequently Asked Questions (FAQ)
-
The recommended torque for the M20-9990345 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the M20-9990345 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
-
Yes, the M20-9990345 connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended derating guidelines for extreme conditions.
-
The M20-9990345 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
-
Yes, the M20-9990345 connector is part of the Harwin M20 series, which offers a range of compatible connectors and accessories. However, it's essential to verify compatibility before using the connector with other Harwin products.
