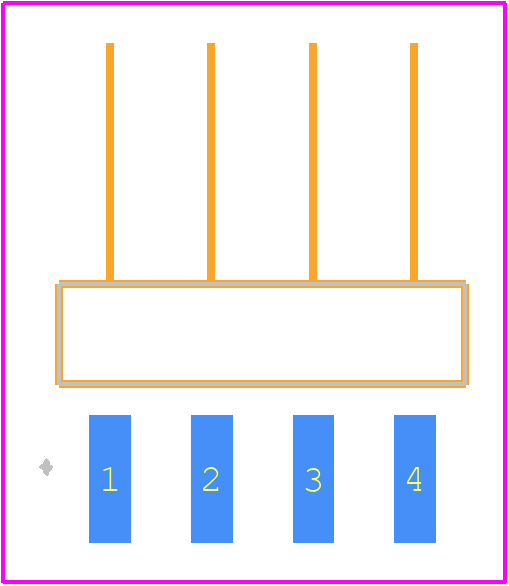

Footprint
-

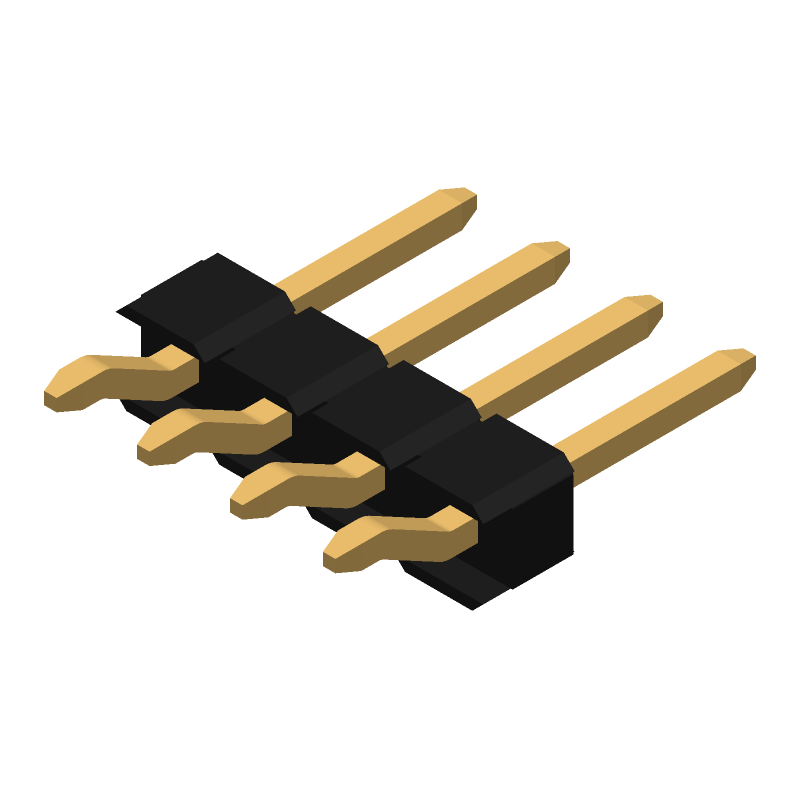

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for M20-8890445 by Harwin
Results Overview of M20-8890445 by Harwin
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Space Technology
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Energy and Power Systems
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Electronic Manufacturing
Communication and Networking
Robotics and Drones
M20-8890445 Information
M20-8890445 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M20-8890445
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AJ6361
|
Newark | Conn, R/A Header, 4Pos, 1Row, 2.54Mm Rohs Compliant: Yes |Harwin M20-8890445 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 870 |
|
$0.3610 / $0.6760 | Buy Now |
|
DISTI #
952-3233-ND
|
DigiKey | CONN HEADER SMD R/A 4POS 2.54MM Min Qty: 1 Lead time: 14 Weeks Container: Tube |
1250 In Stock |
|
$0.2955 / $0.5700 | Buy Now |
|
DISTI #
855-M20-8890445
|
Mouser Electronics | Headers & Wire Housings 4 WAY SIL HORIZ SMT P/HDR RoHS: Compliant | 2018 |
|
$0.2530 / $0.5700 | Buy Now |
|
|
Bristol Electronics | 15 |
|
RFQ | ||
|
DISTI #
M20-8890445
|
TTI | Headers & Wire Housings 4 WAY SIL HORIZ SMT P/HDR RoHS: Compliant pbFree: Pb-Free Min Qty: 1539 Package Multiple: 798 Container: Each | Americas - 0 |
|
$0.2620 / $0.3220 | Buy Now |
|
DISTI #
M20-8890445
|
Avnet Abacus | Conn Unshrouded Header 4 POS 254mm Solder RA SMD Tube (Alt: M20-8890445) RoHS: Compliant Min Qty: 1539 Package Multiple: 57 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for M20-8890445
M20-8890445 CAD Models
M20-8890445 Part Data Attributes
|
|
M20-8890445
Harwin
Buy Now
Datasheet
|
Compare Parts:
M20-8890445
Harwin
Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Harwin | |
| Body Breadth | 0.098 inch | |
| Body Depth | 0.217 inch | |
| Body Length | 0.3 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | MALE | |
| Contact Material | BRASS | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Durability | 300 Cycles | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| JESD-609 Code | e4 | |
| Mating Contact Pitch | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 4 |
