M20-8890345R by: Harwin

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking,

Part Details for M20-8890345R by Harwin

Results Overview of M20-8890345R by Harwin

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Space Technology Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Energy and Power Systems Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Aerospace and Defense Healthcare Renewable Energy Electronic Manufacturing Communication and Networking Robotics and Drones

M20-8890345R Information

M20-8890345R by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M20-8890345R

Part # Distributor Description Stock Price Buy
DISTI # 45AJ6360
Newark Conn, R/A Header, 3Pos, 1Row, 2.54Mm Rohs Compliant: Yes |Harwin M20-8890345R RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 1500
  • 500 $0.4330
  • 1,000 $0.3910
  • 2,000 $0.3790
  • 3,000 $0.3560
  • 5,000 $0.3440
$0.3440 / $0.4330 Buy Now
DISTI # 952-M20-8890345RCT-ND
DigiKey CONN HEADER SMD R/A 3POS 2.54MM Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2555
In Stock
  • 1 $0.6500
  • 10 $0.5500
  • 100 $0.4677
  • 500 $0.4174
  • 1,000 $0.3975
  • 1,500 $0.3863
  • 2,500 $0.3726
  • 3,500 $0.3638
  • 5,000 $0.3548
  • 12,500 $0.3326
  • 25,000 $0.3167
$0.3167 / $0.6500 Buy Now
DISTI # 855-M20-8890345R
Mouser Electronics Headers & Wire Housings 3 WAY SIL HORIZ SMT P/HDR T&R RoHS: Compliant 525
  • 1 $0.6500
  • 10 $0.5280
  • 100 $0.4310
  • 500 $0.3720
  • 1,000 $0.3130
  • 8,000 $0.2930
$0.2930 / $0.6500 Buy Now
Bristol Electronics   803
RFQ
DISTI # M20-8890345R
TTI Headers & Wire Housings 3 WAY SIL HORIZ SMT P/HDR T&R RoHS: Compliant pbFree: Pb-Free Min Qty: 1500 Package Multiple: 500 Container: Reel Americas - 0
  • 1,500 $0.3040
  • 2,500 $0.2980
  • 5,000 $0.2920
$0.2920 / $0.3040 Buy Now
DISTI # M20-8890345R
Avnet Abacus Conn Unshrouded HDR 3 POS 254mm Solder RA SMD TR - Tape and Reel (Alt: M20-8890345R) RoHS: Compliant Min Qty: 1500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # M20-8890345R
Avnet Asia Conn Unshrouded HDR 3 POS 2.54mm Solder RA SMD T/R (Alt: M20-8890345R) RoHS: Compliant Min Qty: 4000 Package Multiple: 500 Lead time: 11 Weeks, 0 Days 0
RFQ

Part Details for M20-8890345R

M20-8890345R CAD Models

  • Part Symbol

    Part Symbol

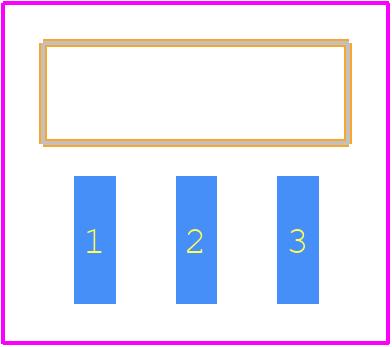

  • Footprint

    footprint

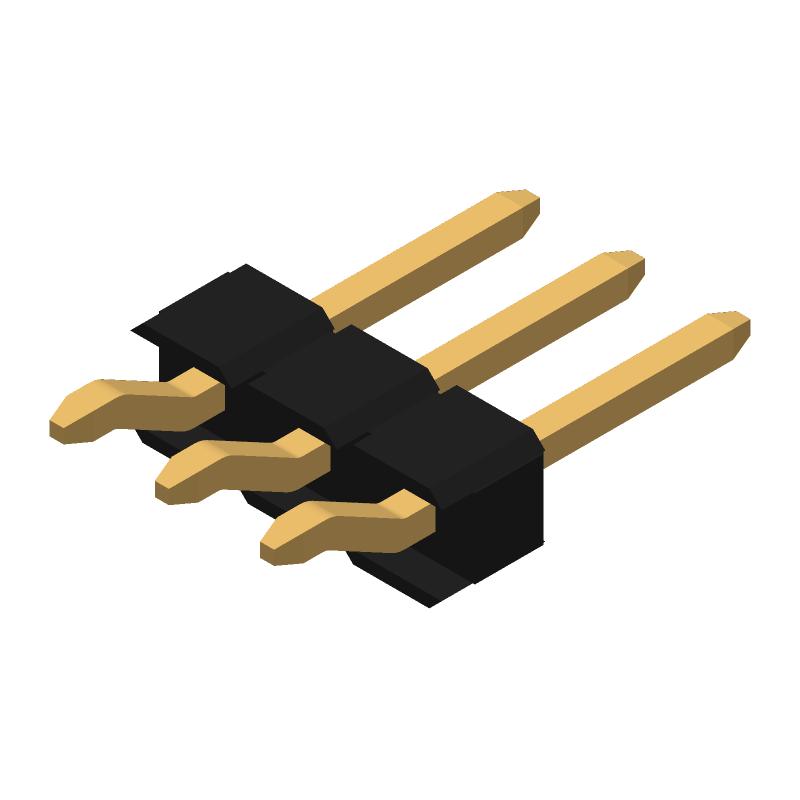

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M20-8890345R Part Data Attributes

Parametric Data
M20-8890345R Harwin
Buy Now Datasheet
Compare Parts:
M20-8890345R Harwin Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HARWIN PLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Harwin
Body Breadth 0.098 inch
Body Depth 0.217 inch
Body Length 0.2 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Gold (Au)
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
Durability 300 Cycles
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Material GLASS FILLED POLYAMIDE
JESD-609 Code e4
Mating Contact Pitch 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Pitch 2.54 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 3
