Part Details for LVR016S by Littelfuse Inc
Results Overview of LVR016S by Littelfuse Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
LVR016S Information
LVR016S by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for LVR016S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AC1367
|
Newark | Fuse, Ptc Resettable, 240V, 2A, Thd, Thermistor Mounting:Through Hole, Product Range:Polyswitch Lvr Series, Holding Current:160Ma, Tripping Current:370Ma, Voltage Rating:240V, Operating Temperature Min:-20°C, Operating Temperature Rohs Compliant: Yes |Littelfuse LVR016S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 322 |
|
$0.3260 / $0.7350 | Buy Now |
|
DISTI #
LVR016S-ND
|
DigiKey | PTC RESET FUSE 240V 160MA RADIAL Min Qty: 1 Lead time: 15 Weeks Container: Bulk |
3775 In Stock |
|
$0.2809 / $0.7500 | Buy Now |
|
DISTI #
650-LVR016S
|
Mouser Electronics | Resettable Fuses - PPTC .16A 240VAC 20/2A Imax RoHS: Compliant | 3430 |
|
$0.3330 / $0.6200 | Buy Now |
|
DISTI #
V99:2348_11453105
|
Arrow Electronics | PTC Resettable Fuse 0.16A(hold) 0.37A(trip) 240VAC 2A 1.4W 15s 2.5Ohm Radial 9.9 X 3.8mm Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2223 | Americas - 92 |
|
$0.2852 / $0.4343 | Buy Now |
|
DISTI #
62837591
|
Verical | PTC Resettable Fuse 0.16A(hold) 0.37A(trip) 240VAC 2A 1.4W 15s 2.5Ohm Radial 9.9 X 3.8mm Bag RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 2223 | Americas - 92 |
|
$0.4343 | Buy Now |
|
DISTI #
LVR016S
|
TTI | Resettable Fuses - PPTC .16A 240VAC 20/2A Imax RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Bulk |
Americas - 1600 In Stock |
|
$0.3750 / $0.4220 | Buy Now |
|
DISTI #
LVR016S
|
TME | Fuse: PTC polymer, 160mA, THT Min Qty: 500 | 0 |
|
$0.4000 | RFQ |
|
DISTI #
000000000001026167
|
Sager | Resettable Fuses - PPTC .16A 240VAC 20/2A Imax Min Qty: 500 | 0 |
|
$0.3457 / $0.4086 | Buy Now |
|
DISTI #
SMC-LVR016S
|
Sensible Micro Corporation | XFUS R= 240V PTC RESET 160MA RAD RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Bulk | 54 |
|
RFQ |
Part Details for LVR016S

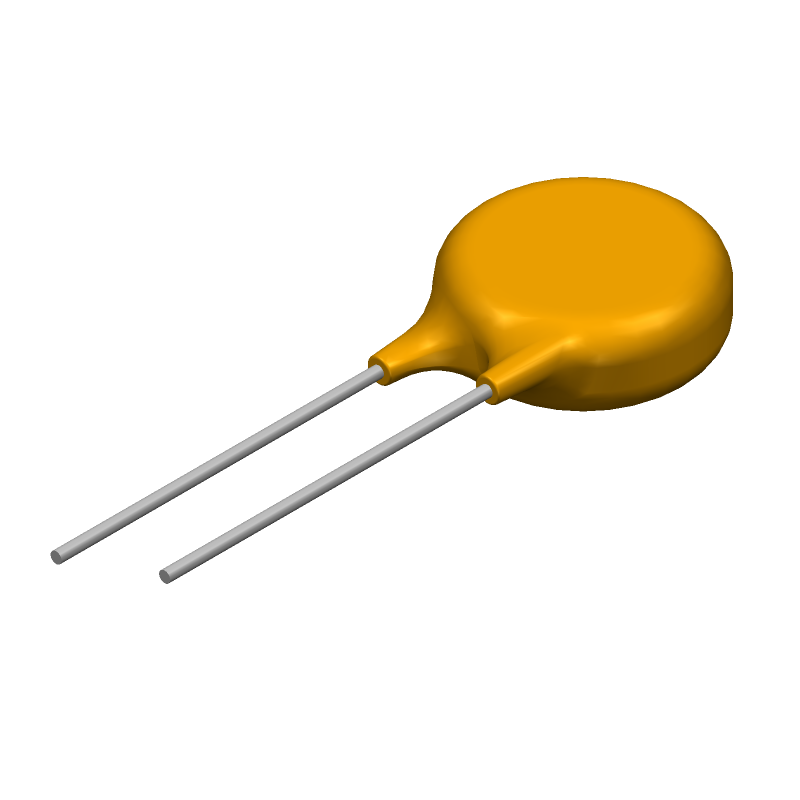

LVR016S CAD Models
LVR016S Part Data Attributes
|
|
LVR016S
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
LVR016S
Littelfuse Inc
PTC Resettable Fuse, 7.8ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | LITTELFUSE | |
| Circuit RMS Voltage-Max | 120 V | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 12.5 mm | |
| Package Length | 9.9 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 3.8 mm | |
| Packing Method | BULK | |
| Reference Standard | CSA; TUV; UL | |
| Resistance | 2.5 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Thermistor Application | TEMPERATURE SENSING | |
| Working Voltage | 120 V |
LVR016S Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance of the LVR016S includes a thermal pad on the bottom of the device, connected to a large copper area on the PCB to dissipate heat efficiently.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the device.
-
The maximum allowed voltage transient for the LVR016S is 1.5 times the rated voltage, but not exceeding 100V. Exceeding this limit may damage the device.
-
Yes, the LVR016S can be used in high-frequency circuits, but it's essential to consider the device's parasitic inductance and capacitance, which may affect the circuit's performance. A thorough analysis of the circuit's layout and component selection is recommended.
-
Store the LVR016S in its original packaging or an equivalent ESD-protective package, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads.
