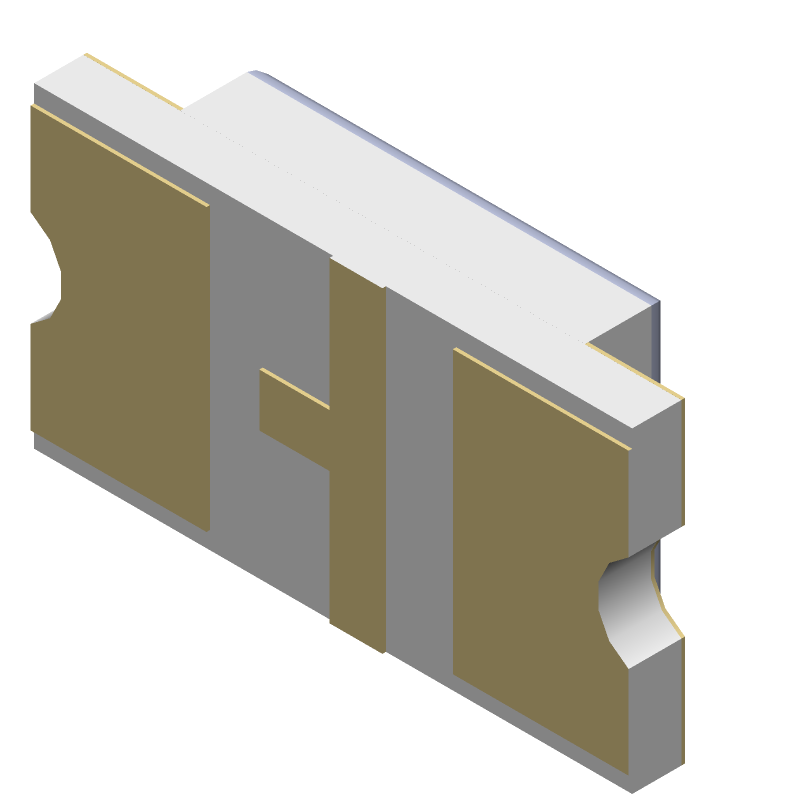

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTQ39G-Q1OO-25-1 by ams OSRAM Group
Results Overview of LTQ39G-Q1OO-25-1 by ams OSRAM Group
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTQ39G-Q1OO-25-1 Information
LTQ39G-Q1OO-25-1 by ams OSRAM Group is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for LTQ39G-Q1OO-25-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTQ39G-Q1OO-25-1
|
TME | LED, SMD, 0603, green, 0.9x1.7x0.4mm, 130/170°, 5mA, λd: 520÷540nm Min Qty: 5 | 24285 |
|
$0.0462 / $0.1641 | Buy Now |
|
DISTI #
Q65110A7997
|
EBV Elektronik | LED InGaN on Sapphire True Green SMD 0603 1608 Metric 5 mA 285 V 530 nm (Alt: Q65110A7997) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days | EBV - 136000 |
|
Buy Now |
Part Details for LTQ39G-Q1OO-25-1
LTQ39G-Q1OO-25-1 CAD Models
LTQ39G-Q1OO-25-1 Part Data Attributes
|
|
LTQ39G-Q1OO-25-1
ams OSRAM Group
Buy Now
Datasheet
|
Compare Parts:
LTQ39G-Q1OO-25-1
ams OSRAM Group
Single Color LED, True Green, Colorless Diffused, 1.1mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | AMS-OSRAM AG | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | ams OSRAM | |
| Color | TRUE GREEN | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.015 A | |
| Forward Voltage-Max | 3.1 V | |
| Lens Type | COLORLESS DIFFUSED | |
| Luminous Intensity-Min | 0.071 cd | |
| Luminous Intensity-Nom | 80.5 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.4 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 525 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 1.1 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 1.2 mm | |
| Viewing Angle | 130 deg |
Alternate Parts for LTQ39G-Q1OO-25-1
This table gives cross-reference parts and alternative options found for LTQ39G-Q1OO-25-1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTQ39G-Q1OO-25-1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTQ39G-Q1OO-25-1 | OSRAM Opto Semiconductors | Check for Price | Single Color LED, True Green, Colorless Diffused, 1.1mm, | LTQ39G-Q1OO-25-1 vs LTQ39G-Q1OO-25-1 |
| Q65110A7997 | OSRAM GmbH | Check for Price | SINGLE COLOR LED | LTQ39G-Q1OO-25-1 vs Q65110A7997 |
LTQ39G-Q1OO-25-1 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for LTQ39G-Q1OO-25-1 is -40°C to 100°C, as per the manufacturer's guidelines.
-
While the LTQ39G-Q1OO-25-1 is designed to operate in a wide range of temperatures, it's recommended to avoid exposing it to high humidity (>80% RH) to prevent moisture-related issues. If high humidity is unavoidable, consider using a conformal coating or hermetic sealing to protect the device.
-
The maximum soldering temperature for the LTQ39G-Q1OO-25-1 is 260°C for a maximum of 10 seconds, as per the manufacturer's reflow soldering guidelines.
-
Yes, the LTQ39G-Q1OO-25-1 is AEC-Q102 qualified, making it suitable for use in automotive applications. However, ensure that the device is used within its specified operating conditions and follows the manufacturer's guidelines for automotive applications.
-
The typical response time of the LTQ39G-Q1OO-25-1 is around 10-15 microseconds, although this may vary depending on the specific application and operating conditions.
