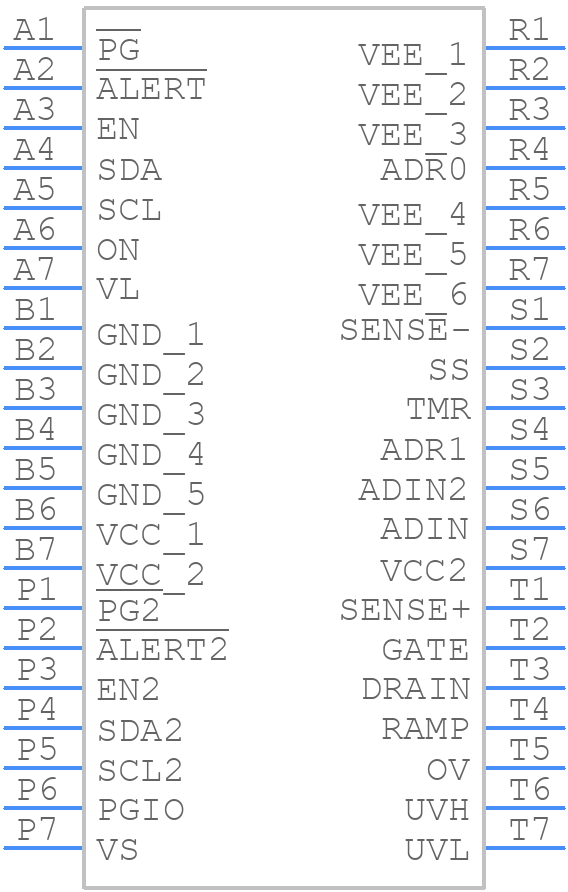

Part Symbol
-

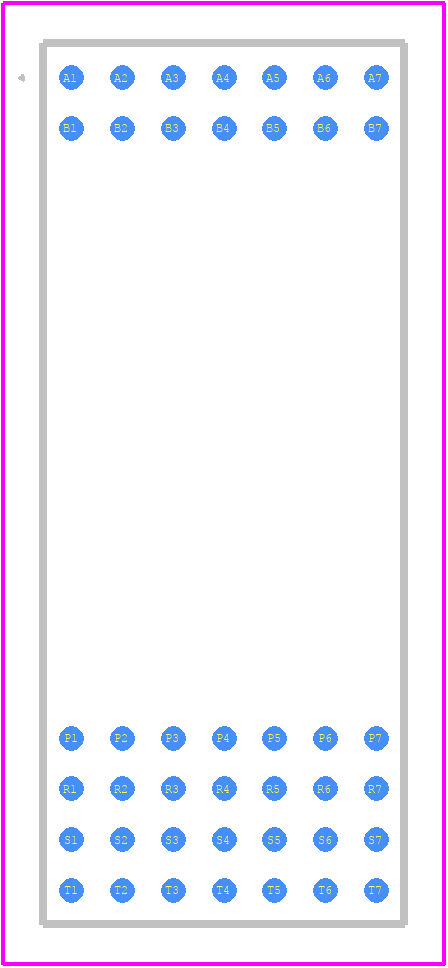

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM9100IY#PBF by Analog Devices Inc
Results Overview of LTM9100IY#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
LTM9100IY#PBF Information
LTM9100IY#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM9100IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTM9100IY#PBF-ND
|
DigiKey | IC HOT SWAP CTRLR GP 42BGA Min Qty: 1 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$32.9120 / $38.8700 | Buy Now |
|
DISTI #
584-LTM9100IYPBF
|
Mouser Electronics | Hot Swap Voltage Controllers Anyside High Voltage Isolated Switch Controller with I2C Command and Telemetry RoHS: Compliant | 62 |
|
$32.9000 / $37.5800 | Buy Now |
|
DISTI #
V99:2348_17058802
|
Arrow Electronics | Digital Isolator Logic 2-CH 400Kbps 42-Pin BGA Tray Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks | Americas - 216 |
|
$33.4200 | Buy Now |
|
DISTI #
V36:1790_17058802
|
Arrow Electronics | Digital Isolator Logic 2-CH 400Kbps 42-Pin BGA Tray Min Qty: 120 Package Multiple: 120 Lead time: 13 Weeks Date Code: 2207 | Americas - 3 |
|
$31.4800 | Buy Now |
|
|
Analog Devices Inc | Anyside™ Hi V Iso Switch Cntr Package Multiple: 120 | 0 |
|
$26.3300 / $38.8700 | Buy Now |
|
DISTI #
89011794
|
Verical | Digital Isolator Logic 2-CH 400Kbps 42-Pin BGA Tray Min Qty: 1 Package Multiple: 1 | Americas - 216 |
|
$30.5600 | Buy Now |
|
DISTI #
66352406
|
Verical | Digital Isolator Logic 2-CH 400Kbps 42-Pin BGA Tray Min Qty: 3 Package Multiple: 3 | Americas - 3 |
|
$30.5600 | Buy Now |
|
DISTI #
LTM9100IY#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 120 | 0 |
|
$34.0000 / $37.3000 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 144 |
|
RFQ |
Part Details for LTM9100IY#PBF
LTM9100IY#PBF CAD Models
LTM9100IY#PBF Part Data Attributes
|
|
LTM9100IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM9100IY#PBF
Analog Devices Inc
Anyside™ High Voltage Isolated Switch Controller with I<sup>2</sup>C Command and Telemetry
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 42 | |
| Manufacturer Package Code | 05-08-1973 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PBGA-B42 | |
| Length | 22 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 42 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 5.41 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 9 mm |
LTM9100IY#PBF Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Use a low-impedance current sense resistor (RSENSE) and ensure the sense lines are routed close together and away from noise sources. Also, use a low-noise, low-impedance power supply for the device.
-
The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
-
While the datasheet specifies a maximum switching frequency of 1MHz, the device can be used at higher frequencies with proper PCB layout and component selection. However, this may require additional filtering and noise reduction measures.
-
The internal voltage reference has a tolerance of ±1.5%. To compensate for this, use an external voltage reference or adjust the feedback resistors to achieve the desired output voltage.
